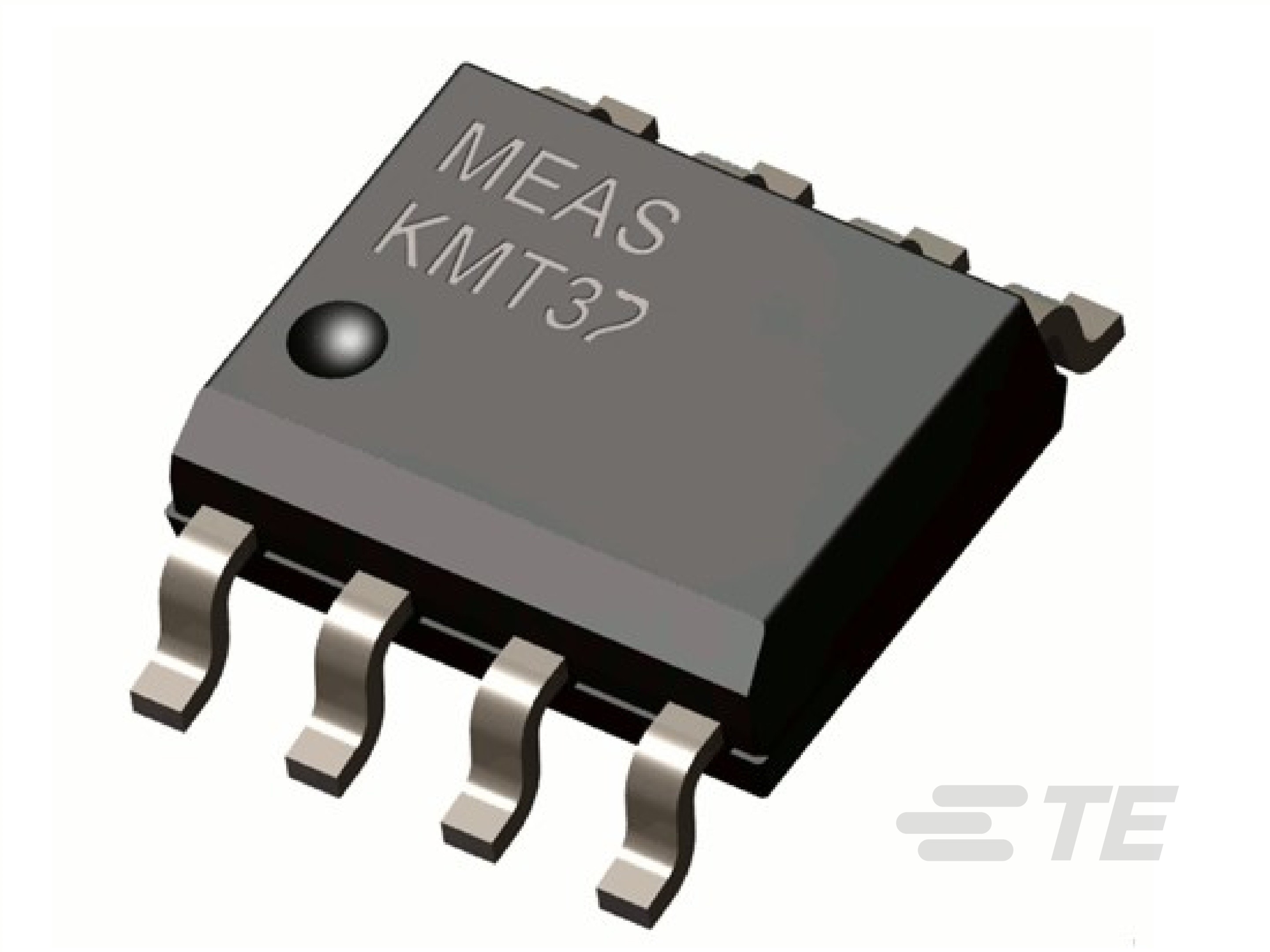

Magnetic Angle Sensor, SO8 Package
- MEAS
- MEAS KMT
The KMT37 series magnetic angle sensor contains two parallel Wheatstone bridges, which enclose a sensitive angle of 45 degrees. A rotating magnetic field in the surface parallel to the chip delivers two independent sinusoidal output signals, following a cos(2α) and a sin(2α) function - α representing the angle between the sensor and field direction.
Product Features
-
Position Sensor Product Type : Magnetic Angle Sensor
-
Sensor Package : SO8
-
Sensing Range (°): 0 – 180
-
Typical Signal Amplitude (mV/V): 11
-
Typical Operating Voltage (V): 5
Overview
Features
- Contactless angular position
- Design optimized linearity
- High accuracy
- Self diagnosis feature
- User has control over signal evaluation
- Reliable SO8 package
- Extended operating temperature range: -40°C to 150°C
- Ideal for harsh environments due to the magnetic sensing principle
- RoHS compliant (lead-free)
- High rotational speed possible
- Absolute and incremental angle measurement
Applications
- Motor motion control
- Robotics
- Camera positioning
- Position measurement in medical equipment
- Automotive
- Potentiometer replacement
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Position Sensor Product Type Magnetic Angle Sensor
-
Sensor Package SO8
Electrical Characteristics
-
Typical Operating Voltage (V) 5
-
Typical Average Current (mA) 1.6
Usage Conditions
-
Sensing Range (°) 0 – 180
-
Operating Temperature Range -40 – 150 °C [ -40 – 302 °F ]
Operation/Application
-
Typical Signal Amplitude (mV/V) 11
Reference Number
-
TE Internal Number CAT-MRS0005
