Heat Shrink Cable Joints 12-42 kV

RAYCHEM

RAYCHEM MXSU

Our Raychem MXSU-INL-1C Heat Shrink Cable Joints are designed for 1-core polymeric cable connection from 12 up to 42 kV. The kit includes mechanical connector and wire shields.

More Less

Datasheet |
Digital Datasheet|

Product Features

Product Availability : Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China
Installation Instruction : Dutch, English, German, Flemish, Spanish, Swedish, Italian, Hungarian, French, Finnish
Joints & Splice Product Type : Inline Joint, Repair Joint, Medium Voltage Size Transition Joint
Voltage Class (kV): ≤ 12, ≤ 24, ≤ 36, ≤ 17.5
Compatible Conductor Cross-Section Range (mm²): 120 – 240, 500, 70 – 150, 800, 35 – 95, 95 – 240, 50 – 95, 630, 1000, 50 – 150, 240 – 400, 150 – 300

Available from

Product	TE Part #	Documents	Product Availability	Installation Instruction	Voltage Class	Joints & Splice Product Type	Compatible Conductor Range	Compatible Insulation Diameter Range	Compatible Conductor Diameter Range	Sheath Outside Diameter	EU RoHS Compliance	EU ELV Compliance
MXSU-6151	D16648-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	Inline Joint	-	40.1 – 46.6 mm	25.5 – 29.2 mm	52 – 60 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-6131	124108-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	Inline Joint	-	31.1 – 39.6 mm	13.9 – 21.6 mm	38 – 53 mm	Not Compliant	Not Compliant
MXSU-6131	124108-046	Product Drawing	Americas	Spanish	≤ 36 kV	Inline Joint	-	31.1 – 39.6 mm	13.9 – 21.6 mm	38 – 53 mm	Not Compliant	Not Compliant
MXSU-4111	354771-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 17.5 kV	Inline Joint	1/0 – 4/0 AWG/kcmil	17.6 – 24 mm	7.2 – 12 mm	24 – 38 mm	Not Compliant	Compliant with Exemptions
MXSU-6111	495780-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	Inline Joint	-	24 – 30 mm	6 – 12 mm	32 – 43 mm	Not Compliant	Not Compliant
MXSU-5121	C44894-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	Inline Joint	-	20.2 – 29.5 mm	7.2 – 15 mm	28 – 41 mm	Not Compliant	Compliant with Exemptions
MXSU-5181	CS0450-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 24 kV	Inline Joint	-	49.4 – 53.2 mm	38.5 – 39.2 mm	64 – 67 mm	Compliant	Compliant
MXSU-4141	126738-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 17.5 kV	Inline Joint	-	28.4 – 36.8 mm	17.8 – 24.6 mm	35 – 50 mm	Not Compliant	Compliant with Exemptions
MXSU-5121	C44894-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 24 kV	Inline Joint	-	20.2 – 29.5 mm	7.2 – 15 mm	28 – 41 mm	Not Compliant	Compliant with Exemptions
MXSU-3151	CA7354-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 12 kV	Inline Joint	-	33.8 – 37.2 mm	25.5 – 27.6 mm	44 – 50 mm	Not Compliant	Compliant with Exemptions
MXSU-5131	743209-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant
MXSU-6121	A29218-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 36 kV	Inline Joint	-	26.2 – 34.5 mm	8.7 – 15 mm	34 – 44 mm	Not Compliant	Not Compliant
MXSU-5151	CA7352-007	Product Drawing	Europe, Middle East & Africa	Italian	≤ 24 kV	Repair Joint	-	37.2 – 41.6 mm	25.5 – 27.6 mm	48 – 54 mm	Not Compliant	Compliant with Exemptions
MXSU-5151	CA7352-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 24 kV	Inline Joint	-	37.2 – 41.6 mm	25.5 – 27.6 mm	48 – 54 mm	Not Compliant	Compliant with Exemptions
MXSU-6131	124108-007	Product Drawing	Europe, Middle East & Africa	Italian	≤ 36 kV	Inline Joint	-	31.1 – 39.6 mm	13.9 – 21.6 mm	38 – 53 mm	Not Compliant	Not Compliant
MXSU-6161	CB9317-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	45.8 – 50.5 mm	29 – 32.5 mm	55 – 68 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-4141	126738-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 17.5 kV	Inline Joint	-	28.4 – 36.8 mm	17.8 – 24.6 mm	35 – 50 mm	Not Compliant	Compliant with Exemptions
MXSU-3121	233200-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	Inline Joint	-	17.6 – 24.3 mm	8.7 – 15 mm	25 – 38 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-3141	463998-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 12 kV	Inline Joint	-	25.7 – 32.6 mm	17.8 – 24.6 mm	33 – 47 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-3121	233200-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 12 kV	Inline Joint	-	17.6 – 24.3 mm	8.7 – 15 mm	25 – 38 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-5131	743209-044	Product Drawing	Americas	Spanish	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant
MXSU-5131	743209-003	Product Drawing	Europe, Middle East & Africa	Dutch	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant
MXSU-6111	495780-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 36 kV	Inline Joint	-	24 – 30 mm	6 – 12 mm	32 – 43 mm	Not Compliant	Not Compliant
MXSU-3171	CR6798-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 12 kV	Inline Joint	-	39.5 – 42.6 mm	32 – 33.8 mm	52 – 57 mm	Not Compliant	Compliant with Exemptions
MXSU-3161	CB9319-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 12 kV	Inline Joint	-	37.5 – 40 mm	29 – 32.5 mm	47 – 54 mm	Not Compliant	Compliant with Exemptions
MXSU-6121	A29218-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	26.2 – 34.5 mm	8.7 – 15 mm	34 – 44 mm	Not Compliant	Not Compliant
MXSU-6131	124108-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 36 kV	Inline Joint	-	31.1 – 39.6 mm	13.9 – 21.6 mm	38 – 53 mm	Not Compliant	Not Compliant
MXSU-5131	743209-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant
MXSU-6121	A29218-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	Inline Joint	-	26.2 – 34.5 mm	8.7 – 15 mm	34 – 44 mm	Not Compliant	Not Compliant
MXSU-6181	CS0455-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	Inline Joint	-	55.7 – 58.8 mm	38.5 – 39.2 mm	69 – 73 mm	Not Compliant	Not Compliant
MXSU-4131	473477-046	Product Drawing	Americas	Spanish	≤ 17.5 kV	Inline Joint	-	22 – 31.6 mm	11 – 19.2 mm	28 – 44 mm	Not Compliant	Compliant with Exemptions
MXSU-5132	CA7110-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 24 kV	Inline Joint	-	25 – 35.5 mm	12.9 – 21.6 mm	33 – 48 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-6131	124108-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	31.1 – 39.6 mm	13.9 – 21.6 mm	38 – 53 mm	Not Compliant	Not Compliant
MXSU-5131	743209-007	Product Drawing	Europe, Middle East & Africa	Italian	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant
MXSU-4121	A26347-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 17.5 kV	Inline Joint	-	19.9 – 27.5 mm	8.7 – 15 mm	28 – 39 mm	Not Compliant	Compliant with Exemptions
MXSU-3161	CB9319-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	Inline Joint	-	37.5 – 40 mm	29 – 32.5 mm	47 – 54 mm	Not Compliant	Compliant with Exemptions
MXSU-5181	CS0450-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	Inline Joint	-	49.4 – 53.2 mm	38.5 – 39.2 mm	64 – 67 mm	Compliant	Compliant
MXSU-3181	CR8588-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 12 kV	Inline Joint	-	45 – 47.6 mm	38.5 – 39.2 mm	59 – 64 mm	Not Compliant	Compliant with Exemptions
MXSU-5121	C44894-044	Product Drawing	Americas	Spanish	≤ 24 kV	Inline Joint	-	20.2 – 29.5 mm	7.2 – 15 mm	28 – 41 mm	Not Compliant	Compliant with Exemptions
MXSU-6161	CB9317-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	Inline Joint	-	45.8 – 50.5 mm	29 – 32.5 mm	55 – 68 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-3131	691269-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 12 kV	Inline Joint	-	17.6 – 29.4 mm	10.3 – 19.2 mm	26 – 40 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-5181	CS0450-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 24 kV	Medium Voltage Size Transition Joint	-	49.4 – 53.2 mm	38.5 – 39.2 mm	64 – 67 mm	Compliant	Compliant
MXSU-4121	A26347-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 17.5 kV	Inline Joint	-	19.9 – 27.5 mm	8.7 – 15 mm	28 – 39 mm	Not Compliant	Compliant with Exemptions
MXSU-5132	CA7110-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	Inline Joint	-	25 – 35.5 mm	12.9 – 21.6 mm	33 – 48 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-4131	473477-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 17.5 kV	Inline Joint	-	22 – 31.6 mm	11 – 19.2 mm	28 – 44 mm	Not Compliant	Compliant with Exemptions
MXSU-6111	495780-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 36 kV	Inline Joint	-	24 – 30 mm	6 – 12 mm	32 – 43 mm	Not Compliant	Not Compliant
MXSU-6151	D16648-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	40.1 – 46.6 mm	25.5 – 29.2 mm	52 – 60 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-4111	354771-046	Product Drawing	Americas	Spanish	≤ 17.5 kV	Inline Joint	1/0 – 4/0 AWG/kcmil	17.6 – 24 mm	7.2 – 12 mm	24 – 38 mm	Not Compliant	Compliant with Exemptions
MXSU-3141	463998-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	Inline Joint	-	25.7 – 32.6 mm	17.8 – 24.6 mm	33 – 47 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-3141	463998-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 12 kV	Inline Joint	-	25.7 – 32.6 mm	17.8 – 24.6 mm	33 – 47 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-4141	126738-046	Product Drawing	Americas	Spanish	≤ 17.5 kV	Inline Joint	-	28.4 – 36.8 mm	17.8 – 24.6 mm	35 – 50 mm	Not Compliant	Compliant with Exemptions
MXSU-4111	354771-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 17.5 kV	Inline Joint	1/0 – 4/0 AWG/kcmil	17.6 – 24 mm	7.2 – 12 mm	24 – 38 mm	Not Compliant	Compliant with Exemptions
MXSU-6111	495780-007	Product Drawing	Europe, Middle East & Africa	Italian	≤ 36 kV	Inline Joint	-	24 – 30 mm	6 – 12 mm	32 – 43 mm	Not Compliant	Not Compliant
MXSU-4131	473477-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 17.5 kV	Inline Joint	-	22 – 31.6 mm	11 – 19.2 mm	28 – 44 mm	Not Compliant	Compliant with Exemptions
MXSU-6171	CS0650-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	50.1 – 53.4 mm	32 – 33.8 mm	62 – 66 mm	Not Compliant	Not Compliant
MXSU-4111	354771-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 17.5 kV	Inline Joint	1/0 – 4/0 AWG/kcmil	17.6 – 24 mm	7.2 – 12 mm	24 – 38 mm	Not Compliant	Compliant with Exemptions
MXSU-6111	495780-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	24 – 30 mm	6 – 12 mm	32 – 43 mm	Not Compliant	Not Compliant
MXSU-5131	743209-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant
MXSU-3151	CA7354-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	Inline Joint	-	33.8 – 37.2 mm	25.5 – 27.6 mm	44 – 50 mm	Not Compliant	Compliant with Exemptions
MXSU-5171	CR6797-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	Inline Joint	-	44.8 – 46.9 mm	32 – 33.8 mm	58 – 61 mm	Not Compliant	Compliant with Exemptions
MXSU-4132	CA7112-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 17.5 kV	Inline Joint	-	23.5 – 32.6 mm	12.9 – 21.6 mm	31 – 45 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-3151	CA7354-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 12 kV	Inline Joint	-	33.8 – 37.2 mm	25.5 – 27.6 mm	44 – 50 mm	Not Compliant	Compliant with Exemptions
MXSU-5151	CA7352-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 24 kV	Repair Joint	-	37.2 – 41.6 mm	25.5 – 27.6 mm	48 – 54 mm	Not Compliant	Compliant with Exemptions
MXSU-5171	CR6797-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 24 kV	Inline Joint	-	44.8 – 46.9 mm	32 – 33.8 mm	58 – 61 mm	Not Compliant	Compliant with Exemptions
MXSU-6171	CS0650-011	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 36 kV	Inline Joint	-	50.1 – 53.4 mm	32 – 33.8 mm	62 – 66 mm	Not Compliant	Not Compliant
MXSU-5131	743209-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant
MXSU-3151	CA7354-025	Product Drawing	Europe, Middle East & Africa	Finnish	≤ 12 kV	Inline Joint	-	33.8 – 37.2 mm	25.5 – 27.6 mm	44 – 50 mm	Not Compliant	Compliant with Exemptions
MXSU-3171	CR6798-023	Product Drawing	Australia, New Zealand & Pacific Islands	English	≤ 12 kV	Inline Joint	-	39.5 – 42.6 mm	32 – 33.8 mm	52 – 57 mm	Not Compliant	Compliant with Exemptions
MXSU-3171	CR6798-010	Product Drawing	Europe, Middle East & Africa	Swedish	≤ 12 kV	Inline Joint	-	39.5 – 42.6 mm	32 – 33.8 mm	52 – 57 mm	Not Compliant	Compliant with Exemptions
MXSU-6171	CS0650-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	Inline Joint	-	50.1 – 53.4 mm	32 – 33.8 mm	62 – 66 mm	Not Compliant	Not Compliant
MXSU-3161	CB9319-003	Product Drawing	Europe, Middle East & Africa	Dutch	≤ 12 kV	Inline Joint	-	37.5 – 40 mm	29 – 32.5 mm	47 – 54 mm	Not Compliant	Compliant with Exemptions
MXSU-3181	CR8588-010	Product Drawing	Europe, Middle East & Africa	Swedish	≤ 12 kV	Inline Joint	-	45 – 47.6 mm	38.5 – 39.2 mm	59 – 64 mm	Not Compliant	Compliant with Exemptions
MXSU-6181	CS0455-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	55.7 – 58.8 mm	38.5 – 39.2 mm	69 – 73 mm	Not Compliant	Not Compliant
MXSU-6131	124108-010	Product Drawing	Europe, Middle East & Africa	Swedish	≤ 36 kV	Inline Joint	-	31.1 – 39.6 mm	13.9 – 21.6 mm	38 – 53 mm	Not Compliant	Not Compliant
MXSU-3131	691269-014	Product Drawing	Europe, Middle East & Africa	Hungarian	≤ 12 kV	Inline Joint	-	17.6 – 29.4 mm	10.3 – 19.2 mm	24 – 60 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-6121	A29218-007	Product Drawing	Europe, Middle East & Africa	Italian	≤ 36 kV	Inline Joint	-	26.2 – 34.5 mm	8.7 – 15 mm	34 – 44 mm	Not Compliant	Not Compliant
MXSU-5151	CA7352-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	Repair Joint	-	37.2 – 41.6 mm	25.5 – 27.6 mm	48 – 54 mm	Not Compliant	Compliant with Exemptions
MXSU-6161	CB9317-011	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	≤ 36 kV	Inline Joint	-	45.8 – 50.5 mm	29 – 32.5 mm	55 – 68 mm	Compliant with Exemptions	Compliant with Exemptions
MXSU-4131	473477-018	Product Drawing	Europe, Middle East & Africa	Dutch, Flemish, French	≤ 17.5 kV	Inline Joint	-	22 – 31.6 mm	11 – 19.2 mm	28 – 44 mm	Not Compliant	Compliant with Exemptions
MXSU-5131	743209-014	Product Drawing	Europe, Middle East & Africa	Hungarian	≤ 24 kV	Inline Joint	-	23 – 33.6 mm	10.3 – 19.2 mm	30 – 43 mm	Not Compliant	Compliant

Overview

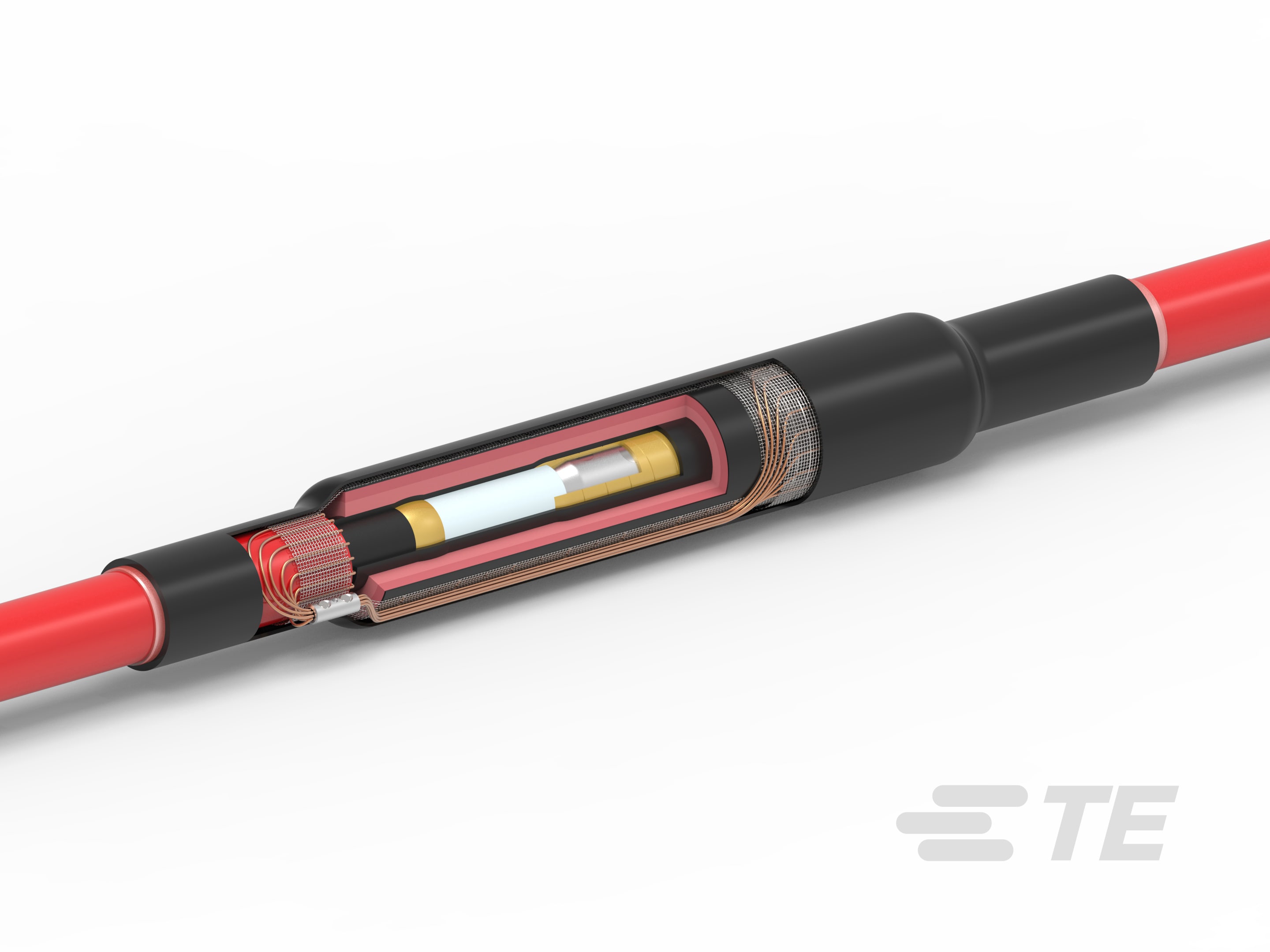

Our Raychem MXSU-INL-1C Heat Shrink Cable Joint is based on a joint design using mechanical shear bolt connectors for conductor and wire shields, which are also supplied with the kit. The kits widely range taking and cover most conductor constructions including their tolerances. Thanks to the shear bolt technology the joints are easy to install - no crimping tools needed when connecting the cables, no tool maintenance required. They can be installed with a standard socket spanner. The heads of the bolts will shear off when the needed torque is applied, ensuring an optimal electrical contact. The Heat Shrink Cable Joints are short and have a space-saving design, an essential characteristic when space is limited. Reliability and performance are essential when it comes to customer demands and the heat shrink joints exceed international performance standards including CENELEC HD 629 or IEC 60502-4 for joints.

Key Features

All-inclusive kit
Based on elastomeric triple layers joint sleeve
Short and slim design
Requires no crimping tool
Includes mechanical connectors
Meets CENELEC HD 629

Heat Shrink Cable Joints

Improving Grid Connectivity

Underground Power Networks

Power Cable Terminations

DISCOVER OUR RANGE OF HEAT SHRINK AND COLD SHRINK TERMINATIONS

FAQ

Question: Heat Shrink Cable Joints are designed to which specifications?

Answer: Our Heat Shrink Cable Joints for 12 to 42 kV are designed and type tested to the Cenelec HD-629.1 S2 specification.

Question: Would a Heat Shrink Cable Joint work on all cables available for the referred cross-section?

Answer: Cable constructions and dimensions can be different around the world for the same cross-section. For safe and reliable applications the admissible cable dimensions provided in the product data-sheet should be followed.

Question: What are the main advantages of the Heat Shrink Cable Joints product family?

Answer: This Heat Shrink Cable Joints family is one of several other joint families using mechanical shear bolt connectors to simplify installations, covering nearly all cable sizes available. There are more than 20 years of field experience applied to this joint sleeve design, proving advantageous especially in transition joints and where oil pressure retention is key.

Question: Is there any need for special installation tools or extra material?
Answer: No, there are no special installation tools or materials required. The Heat Shrink Cable Joint is an all-inclusive accessory.

Question: Does TE offer any installation training for the Heat Shrink Cable Joints?

Answer: Yes, our Heat Shrink Cable Joints are part of our training program. We can offer different installation training options depending on your needs. This ranges from product demonstrations on-site to full structured training courses at one of our global training facilities. Learn more at: TE.com/trainingcenter

Question: Does TE offer any installation training for the heat shrink joints?

Answer: Yes, our heat shrink joints are part of our training program. We can offer different installation training options dependent on your needs. This ranges from product demonstrations on-site to full structured training courses at one of our global training facilities. Learn more at: TE.com/trainingcenter

Question: Does TE offer any installation training for the heat shrink joints?

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Joints & Splices Connector Type Mechanical
Power Component Options Mechanical Connectors Included
Installation Technology Heat Shrink
Joints & Splice Product Type Inline Joint, Repair Joint, Medium Voltage Size Transition Joint
Cable Shield Style Wire

Packaging Features

Packaging Quantity 1

Industry Standards

Compatible With Approved Standards Products HD CENELEC 629.1

Product Availability

Product Availability Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China

Other

Installation Instruction Dutch, English, German, Flemish, Spanish, Swedish, Italian, Hungarian, French, Finnish
EU RoHS Compliance Compliant, Compliant with Exemptions, Not Compliant
EU ELV Compliance Compliant with Exemptions, Compliant, Not Compliant

Electrical Characteristics

Voltage Class (kV) ≤ 12, ≤ 24, ≤ 36, ≤ 17.5

Dimensions

Compatible Conductor Cross-Section Range (mm²) 120 – 240, 500, 70 – 150, 800, 35 – 95, 95 – 240, 50 – 95, 630, 1000, 50 – 150, 240 – 400, 150 – 300
Compatible Conductor Range (AWG/kcmil) 1/0 – 4/0
Compatible Insulation Diameter Range (mm) 23 – 33.6, 25 – 35.5, 44.8 – 46.9, 31.1 – 39.6, 17.6 – 24, 24 – 30, 33.8 – 37.2, 55.7 – 58.8, 40.1 – 46.6, 25.7 – 32.6, 45.8 – 50.5, 23.5 – 32.6, 19.9 – 27.5, 22 – 31.6, 45 – 47.6, 50.1 – 53.4, 37.2 – 41.6, 49.4 – 53.2, 37.5 – 40, 28.4 – 36.8, 20.2 – 29.5, 39.5 – 42.6, 17.6 – 24.3, 17.6 – 29.4, 26.2 – 34.5
Compatible Insulation Diameter Range (in) 1.46 – 1.63, 1.57 – 1.83, .79 – 1.16, .692 – 1.157, 1.33 – 1.46, .905 – 1.322, 1.03 – 1.35, .692 – .956, 1.55 – 1.67, 1.22 – 1.55, .783 – 1.08, 1.76 – 1.84, 1.94 – 2.09, 1.01 – 1.28, .925 – 1.283, .692 – .944, 2.19 – 2.31, 1.97 – 2.1, .984 – 1.39, 1.8 – 1.98, .86 – 1.26, 1.11 – 1.44, 1.77 – 1.87, .94 – 1.18, 1.47 – 1.574
Compatible Cable Cross-Section - Main (Max) (mm²) 300, 95, 630, 1000, 150, 500, 800, 400, 240
Compatible Cable Cross-Section - Main (Min) (mm²) 150, 120, 95, 240, 50, 630, 35, 70, 800, 500
Compatible Cable Diameter - Main (Max) (mm) 65
Compatible Conductor Diameter Range (mm) 29 – 32.5, 13.9 – 21.6, 10.3 – 19.2, 8.7 – 15, 6 – 12, 25.5 – 29.2, 12.9 – 21.6, 7.2 – 12, 11 – 19.2, 38.5 – 39.2, 25.5 – 27.6, 32 – 33.8, 7.2 – 15, 17.8 – 24.6
Compatible Conductor Diameter Range (in) .433 – .755, 1 – 1.15, 1.25 – 1.33, .23 – .472, .4 – .75, .283 – .472, 1 – 1.08, .7 – .968, .405 – .755, .547 – .85, 1.51 – 1.55, 1.14 – 1.27, .342 – .59, .283 – .59, .507 – .85, .685 – .968
Sheath Outside Diameter (mm) 69 – 73, 24 – 38, 62 – 66, 38 – 53, 55 – 68, 28 – 41, 33 – 47, 28 – 44, 48 – 54, 52 – 60, 24 – 60, 25 – 38, 34 – 44, 64 – 67, 33 – 48, 28 – 39, 31 – 45, 35 – 50, 52 – 57, 30 – 43, 58 – 61, 44 – 50, 32 – 43, 26 – 40, 47 – 54, 59 – 64
Sheath Outside Diameter (in) 2.44 – 2.6, 1.85 – 2.12, 2.32 – 2.51, 2.51 – 2.63, .944 – 1.49, 1.1 – 1.73, 2.28 – 2.4, 2.04 – 2.24, 1.02 – 1.57, 1.33 – 1.73, 2.16 – 2.67, 1.73 – 1.96, 1.29 – 1.88, 1.37 – 1.96, 1.1 – 1.53, .984 – 1.49, 2.71 – 2.87, 1.25 – 1.69, 1.18 – 1.69, 1.22 – 1.77, 2.04 – 2.36, 1.88 – 2.12, 1.29 – 1.85, 1.49 – 2.08, 1.1 – 1.61

Configuration Features

Number of Cores 1

Body Features

Insulation Material Polymeric

Reference Number

TE Internal Number CAT-MXSU-INL-1C
