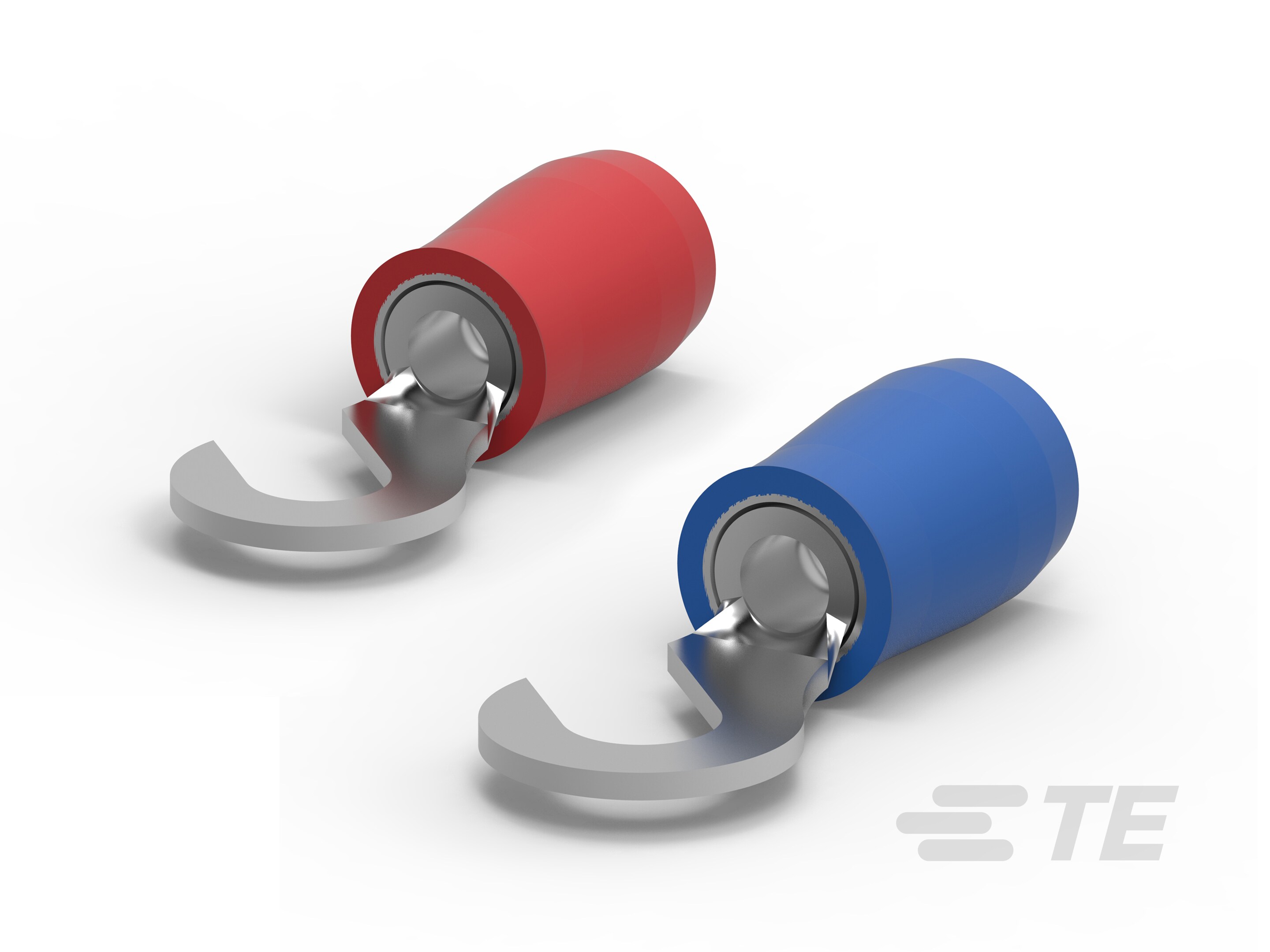

PIDG Hook Tongue Terminals

Please review product documents or contact us for the latest agency approval information.

• Voltage Rating (V) 300

• Wire Insulation Support  With

• Product Weight (g) .612, .945, .977

• Government Qualified Terminal  No

• Packaging Quantity  5000, 1000

• Packaging Method  Reel, Loose Piece

• Number of Holes  1

• Ring Terminal Product Type  Hook Tongue Terminal

• Stud Size  M3.5,

• Sealable  No

• Wire Insulation Support Retention Type  Insulation Support

• Barrel Type  Closed

• Terminal Orientation  Straight

• Terminal Plating Material  Tin

• Wire Size (AWG) 22 – 16, 16 – 14

• Wire Size (mm²) 1.25 – 2, 1.04 – 2.62, .26 – 1.65

• Wire Size (CMA) 509 – 3260, 2050 – 5180

• Stud Diameter (mm) 3.51, 5, 4.17

• Stud Diameter (in) .197, .138, .164

• Tongue Thickness  .79 mm [ .031 in ]

• Product Length (mm) 21.82, 19.05

• Product Length (in) .86, .859, .75

• Compatible Insulation Diameter (Max) (mm) 3.56, 4.32

• Compatible Insulation Diameter (Max) (in) .14, .17

• Compatible Insulation Diameter Range (mm) 2.67 – 3.56, 2.92 – 4.31

• Compatible Insulation Diameter Range (in) .115 – .17, .105 – .14

• Insulation Option  Partially Insulated

• Compatible With Wire Base Material  Copper

• Compatible With Wire Plating Material  Tin

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
