Separable Connectors for Bushing Type F, 1250 A

RAYCHEM

|

RAYCHEM RSTF

Our Raychem RSTF Separable Connectors are outer cone screened T-connectors for switchgear and transformers up to 72.5 kV for bushing type F. They ensure high performance and reliability for renewable energy applications.

More Less

Available from

Build and price the product now

Contact Us

Overview

Shorten installation time. Conduct pre-installation. Our compact, reliable and safe Raychem RSTF Separable Connectors help save time and costs.

Our Raychem RSTF Separable Connectors portfolio is designed to meet the technical and economic challenges of offshore wind farms, offshore substations and the next generation of solar farms.

They are compatible with the switchgear and transformers for interface bushing F including SIEMENS ENERGY Blue GIS with Clean Air and fit easily in the limited space of the latest compact switchgear.

Our design is easy to push on, requiring only one installer and reducing installation time. This enables you to quickly connect and disconnect tower, sea and array cables. To save time and reduce costs, Raychem RSTF connectors can be pre-installed and the cables can be pre-tested, before going offshore.

Designed to deliver high reliability even in harsh environments, our Raychem RSTF connectors are maintenance-free, withstand extreme temperatures, humidity, corrosion and high vibration.

To ensure high performance, we can test your selected cable and the screen connections with our solution in our labs and organize installation training. Because every project is different, we can help you create a customized solution together with our dedicated engineering consultancy team.

Benefit from more flexibility and connection possibilities, thanks to our large range of separable connectors for cross-sections from 70 mm² to 1200 mm². We also provide a wide range of accessories to perform inline connections, fix to a rail or structure, provide dead end facility and test your cable system.

Key Features

Compact design for cables with cross sections from 70 mm² to 1200 mm²
Easy fitting onto T-connector due to design and installation procedure
Featuring up to 1800 A and higher as combined continuous current rating
Offer a variety of applications for more flexibility in wind turbine cabling
Type-tested for 31.5 kA short circuit current without need for metal enclosure
State-of-the-art gapless ZnO surge arrester design
Maintenance-free and corrosion resistant
Nominal discharge current: 10 kA available integrated in base or coupling connector

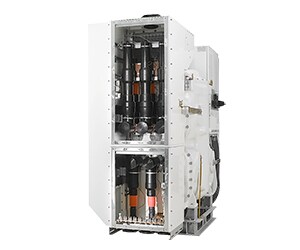

switchgear siemens — Fit easily in the latest compact switchgear including SIEMENS ENERGY Blue GIS with Clean Air.

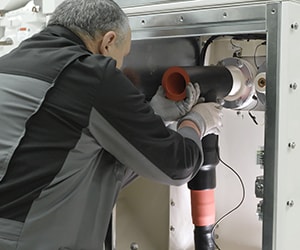

easy installation — Our design is easy to push on, requiring only one installer.

Multiple Connection Possibilities

Thanks to our Large Portfolio

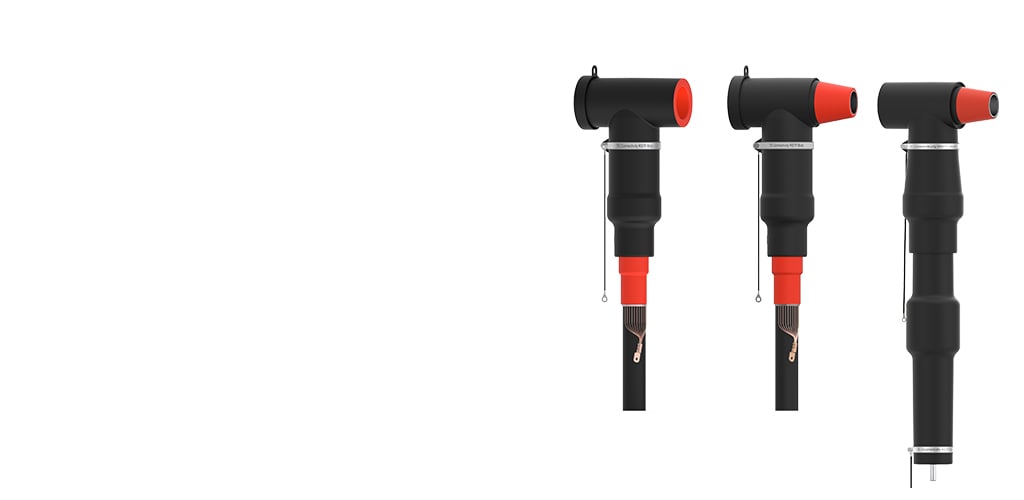

rstf-bc — BASE CONNECTORS: screened T-connector for type F bushing.

rstf-cc — COUPLING CONNECTORS: for inline and parallel connections.

rstf-sa — SURGE ARRESTERS: available as base and coupling connectors.

Connection, Fixing & Insulation Accessories

For More Project Flexibility

dead end plugs — DEAD END PLUGS: provide dead-end facility.

back plug — BACK PLUGS: seal and protect the connector back.

dead plug — DEAD PLUGS: fix the connector to a rail or structure.

fixing frames — FIXING FRAMES: for mechanical stability.

Separable Connectors for Bushing Type F

Improving Grid Reliability

Know More

Dead Break Connections
Product Listing Page
Separable Connectors
Product Family Group

FAQ

Frequently Asked Question

Question: Does TE offer screened separable connectors for cables up to 1200 mm²?

Answer: Yes, our Raychem RSTF screened separable connectors cover large cables cross-sections from 70 mm² to 1200 mm² for both copper or aluminum conductors.

Question: Are TE´s screened separable connectors suitable for copper Class 5 flexible cables?

Answer: Yes, our Raychem RSTF screened separable connector kits include shear bolt lugs compatible with flexible copper cables.

Question: Does TE offer test accessories for Raychem RSTF Separable Connectors?

Answer: Yes, we offer accessories for the connection, fixing, insulation and testing of our Raychem RSTF Connectors.

Question: Are the Raychem RSTF screened separable connectors suitable for offshore environments?

Answer: Yes, our RSTF connectors can be used in both onshore and offshore wind farm environments. They are made of modified silicone rubber which ensures high performance even under broad temperature changes, high humidity and salinity.

Question: What makes Raychem RSTF installer friendly and time saving?

Answer: No extra tooling is necessary to install Raychem RSTF Connectors. The mechanical connector relies on the proven shear bolt technology which can be installed without a special tool such as compression tool for hexagonal crimp or push on tool for wedge connectors.

Question: Can different cables be jointed?

Answer: Yes. By using a Raychem RSTF T-base connector and a coupling connector, cables with different cross sections, constructions, and conductor materials can be jointed.

Question: What are the application differences in between outer cone systems and inner cone systems?

Answer: Both systems are suitable and offer different advantages that depend on your application requirements. We offer both outer cone and inner cone systems to ensure we can provide you with the right solution for your project.

Our Raychem RSTF outer cone connectors provide multiple connection possibilities for more cabling and design flexibility. The RSTF portfolio allows you to install branch off cables at the same place thanks to coupling connectors, to protect your equipment with surge arresters and to fix, insulate and test your system with a wide range of accessories.
