Screened Separable Connectors 1250 A

RAYCHEM

RAYCHEM RSTI

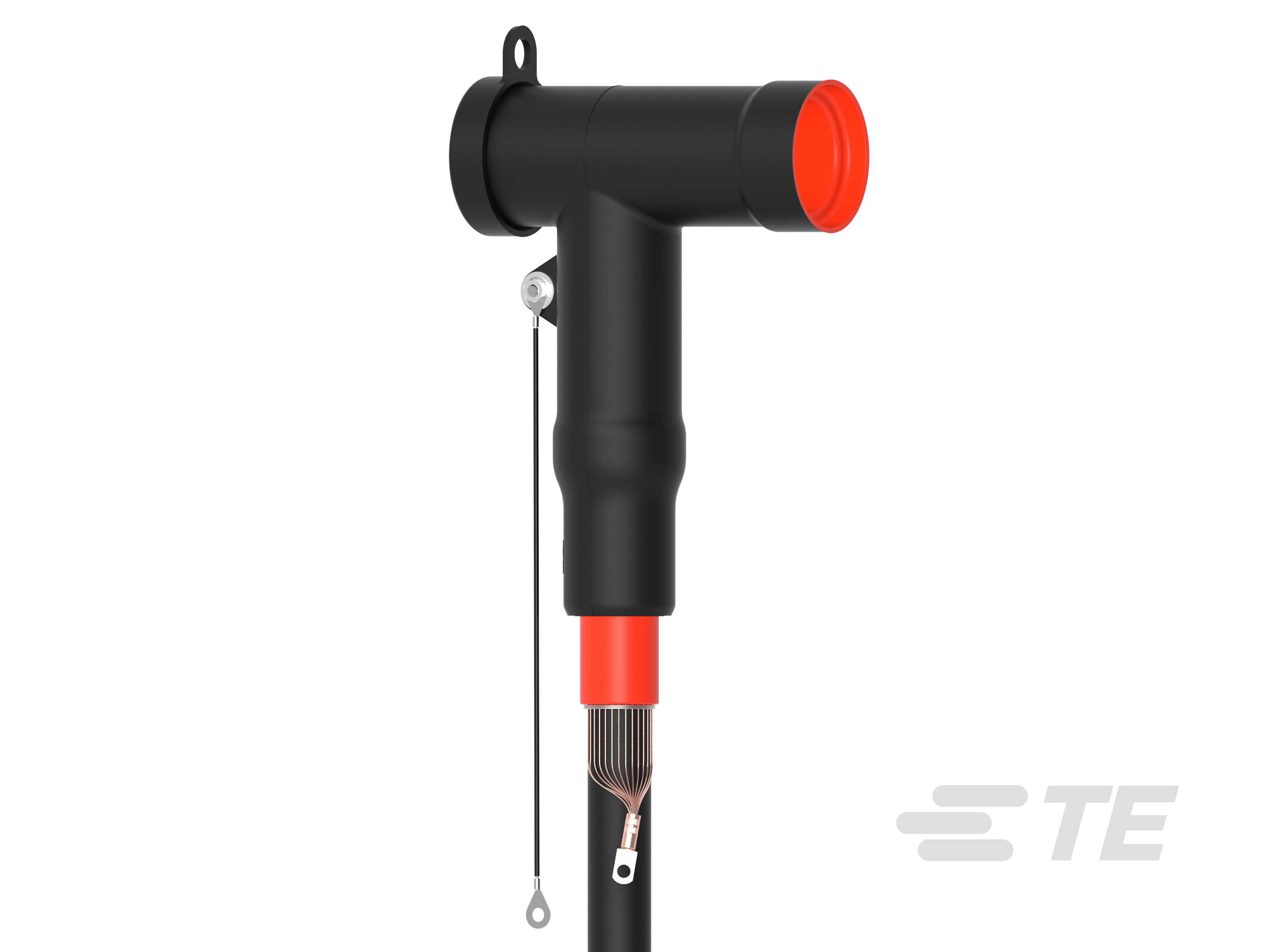

Our Raychem RSTI Screened Separable Connectors for bushing type C (EN50181) are designed to connect underground cables to electrical equipment such as RMU's, switchgear and transformers up to 42 kV / 1250 A.

More Less

Product Features

Product Availability : Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands
Installation Instruction : Polish, Dutch, Swedish, Italian, Russian, English, Hungarian, Estonian, Lithuanian, German, Bulgarian, Hebrew, Romanian, Portuguese, Flemish, Spanish, Norwegian, French, Finnish, Slovenian, Slovak, Croatian, Czech
Installation Technology : Wedge & Contact Ring, Shear Bolt, Mechanical
Voltage Class (kV): ≤ 12, ≤ 36, ≤ 42, ≤ 24
Bushing Type : 630A, 630A/1250A, Size 3, 1250A, Size 2

Available from

Product	TE Part #	Documents	Product Availability	Installation Instruction	Installation Technology	Voltage Class	Bushing Type	Cable Shield Style	Compatible Conductor Diameter Range	Insulation Material	Compatible Insulation Diameter Range	Number of Cores	EU RoHS Compliance	EU ELV Compliance
RSTI-CC-6953	CS8876-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-6851	CR7869-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	22.4 – 35.5 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5954	CR6080-005	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5951	CS8880-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-3951	CR6086-005	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	German	Shear Bolt	≤ 12 kV	1250A, 630A	Copper Wire	-	XLPE/EPR	28.9 – 36.4 mm	-	Not Compliant	Compliant with Exemptions
RSTI-CC-6952	CS8873-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-6951-01	EN3743-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Tape	-	Polymeric	34 – 45.4 mm	1	-	-
RSTI-5852	CM0010-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5855	CM0099-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6951	CR6079-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-6851	CR4949-013	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Czech	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	22.4 – 35.5 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6951	2364413-1	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-6853-01	BM2148-000	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Tape	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6855-02-NL01	EP8565-000	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	-	-
RSTI-5853	CM0011-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	17 – 30.1 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5853	CM0096-005	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	17 – 30.1 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6851	CR4949-018	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Flemish, French	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	22.4 – 35.5 mm	1	-	-
RSTI-CC-5854	CM0097-018	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Dutch, Flemish, French	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5953	CR6084-008	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Norwegian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-6852	CR4990-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	22.4 – 35.5 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5953	CR6084-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-5854-01	CS9701-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Tape	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5854	CM0012-015	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Croatian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6851	CR4949-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	22.4 – 35.5 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-3951	CR6086-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Shear Bolt	≤ 12 kV	1250A, 630A	Copper Wire	-	XLPE/EPR	28.9 – 36.4 mm	-	Not Compliant	Compliant with Exemptions
RSTI-6855	2364411-1	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5853	CM0011-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	17 – 30.1 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5851	CM0094-018	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Dutch, Flemish, French	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5854	CM0097-062	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Polish	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RPIT-6205-W	EE9626-000	Product Drawing	Australia, New Zealand & Pacific Islands	English	Wedge & Contact Ring	≤ 36 kV	Size 2	-	7 – 24.6 mm	Polymeric	-	3	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5851	CM0094-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5851	CM0094-073	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Estonian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5851-01	CN7924-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Tape	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5951	CR6082-061	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Bulgarian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-6855	CR7868-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-6952	CS8873-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-6952	CS8873-018	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Dutch, Flemish, French	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	-	-
RSTI-5851-01-TW01	ES2445-000	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-935-9524-SC	2197837-2	Product Drawing	Asia	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Tape	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-6853	CR7866-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-935-9524-SC	2197840-2	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-3951	CS8877-005	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	German	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6952	CR6078-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-5855	CM0099-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6952	CR6078-007	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-6853	CR5011-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5951-01	EN1795-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Tape	-	Polymeric	34 – 45.4 mm	1	-	-
RSTI-3953	CR6077-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Shear Bolt	≤ 12 kV	1250A, 630A	Copper Wire	-	XLPE/EPR	34 – 45.4 mm	-	Not Compliant	Compliant with Exemptions
RSTI-6853-02-MA01	ES4082-000	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-935-3595-SC	2197837-1	Product Drawing	Asia	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Tape	-	Polymeric	22.4 – 35.5 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5853B-01-JP01	CH6128-000	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5853	CM0011-018	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Dutch, Flemish, French	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	17 – 30.1 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-3951	CR6086-000	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-6953	CS8876-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5951	CS8880-007	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Italian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-935-400-SC	2197837-4	Product Drawing	-	-	Mechanical	-	630A/1250A	Copper Wire	-	Polymeric	45 – 47.4 mm	1	-	-
RSTI-CC-6853	CR7866-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-6851	CR7869-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	22.4 – 35.5 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-6853	CR7866-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-935-9524	2197838-2	Product Drawing	Asia	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Tape	-	Polymeric	28.9 – 42 mm	3	Compliant with Exemptions	Compliant with Exemptions
RSTI-6852	CR4990-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	22.4 – 35.5 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6853	CR5011-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6853	CR5011-013	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Czech	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 42 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5855	CM0099-076	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Russian, Lithuanian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5856	CR5244-000	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6952	CR6078-008	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-3953	CS8874-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-5952	CS8879-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-6855	CR7868-000	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Shear Bolt	≤ 42 kV	1250A, 630A	Copper Wire	-	XLPE/EPR	28.9 – 42 mm	-	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5953	CS8872-018	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Dutch, Flemish, French	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	-	-
RSTI-CC-6952	CS8873-005	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-6951	CS8881-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-5954	CS8882-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-3954	CS8884-000	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5853	CM0096-076	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Russian, Lithuanian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	17 – 30.1 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-3953	CS8874-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-5851	CM0009-062	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Polish	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5854	CM0012-023	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5854	CM0012-072	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Slovenian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5851	CM0094-011	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5851	CM0094-025	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Finnish	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5855	CM0099-018	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Dutch, Flemish, French	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-6951	CR6079-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 42 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-5952	CR6083-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant
RSTI-6953	CR6087-018	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	-	-
RSTI-CC-6851	CR7869-047	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5854	CM0012-063	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Romanian	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5855	CM0013-000	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5855	CM0013-018	Product Drawing	Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	Dutch, Flemish, French	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5852	CM0095-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	12.7 – 23.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5853	CM0096-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	17 – 30.1 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-6951	CS8881-047	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-5951	CR6082-008	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Norwegian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-5855-OM01	ES2777-000	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-5953	CR6084-005	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	German	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	39.1 – 59 mm	1	Not Compliant	Compliant with Exemptions
RSTI-CC-5952	CS8879-007	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Italian	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	34 – 45.4 mm	1	Not Compliant	Compliant with Exemptions
RSTI-935-3595-CTR	2343048-1	Product Drawing	Asia, Europe, Middle East & Africa	-	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	-	-
RSTI-5854	CM0012-009	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	Spanish	Mechanical	≤ 24 kV, ≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	21.2 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-5854	CM0097-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 24 kV	1250A, 630A	Copper Wire	-	Polymeric	21.3 – 34.6 mm	1	Compliant with Exemptions	Compliant with Exemptions
RSTI-CC-3951	CS8877-011	Product Drawing	Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	English	Mechanical	≤ 12 kV	1250A, 630A	Copper Wire	-	Polymeric	28.9 – 36.4 mm	1	Compliant with Exemptions	Compliant with Exemptions

Overview

Our Raychem RSTI Screened Separable Connectors feature a compact design to fit in tight installation spaces, are fully shielded, submersible and available with optional test points.

Our Raychem RSTI Screened Separable Connectors are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings Type “C” (EN 50180/EN 50181), specified for 630/1250A up to 42 kV. Made of a highly modified silicone rubber and protected by a thin-walled outer conductive screen connected to the earth, these screened separable connectors are equally suited for indoor and outdoor installation. Supporting a wide application range, the design incorporates one body and two stress cone adapters to cover all cross-sections from 25 to 1000 mm². The overall and cut-back dimensions are designed to take up minimum space in the terminal box. These connectors are equipped with a capacitive test point for determining whether the circuit is energized. This test point is protected by a conductive cap. After cable preparation and lubrication, the stress control adapter is simply slid into place, followed by the screened connector body. These two components can be installed under virtually any conditions. A separable mounting system ensures easy installation of the connector onto the bushing. All kits include high-performance multi-range mechanical or DIN compression lugs matching the design of the screened separable connectors.

Learn more about our new generation of screened separable connectors: RSTI with Voltage Sensor

Key Features

Very compact design to fit easily in compact switchgears
Range-taking connectors support a wide range of applications, cable types and sizes
Screened connector does not need to be removed for over sheath testing
Wide application range covers cable cross-sections from 35 to 1000 mm²
Easy access rear plug with capacitive test point
Insulation made of highly modified silicone rubber
High accuracy for reliable power quality applications (RSTI-VS)
Inherent safety thanks to total galvanic isolation from high voltage (RSTI-VS)
Simple connection as no auxiliary power supply is needed due to passive components (RSTI-VS)
Factory-calibrated thus no need for on-site calibration (RSTI-VS)

Separable Connectors with Voltage Sensor

Improving Grid Reliability

with Raychem RSTI-VS separable connector with voltage sensor, now compatible with Kries’ grid monitoring device IKI-50.

Applications

View All TE's Raychem Separable Connectors

View All TE's Raychem Separable Connectors
Our Separable Connectors are engineered to optimize performance and solve your switchgear and transformer connection challenges in IEC, IEEE and GB/T power grids.

FAQ

Frequently Asked Questions

Question: Does TE offer Screened Separable Connectors for cables up to 1000mm²?

Answer: Yes, our Raychem Screened Separable Connectors cover large cables cross-sections from 35 to 1000 mm² for both copper or aluminum conductors.

Question: Are the Screened Separable Connectors suitable for copper class 5 /flexible cables?
Answer: Yes, our Screened Separable Connectors include compression and shear bolt lugs that are compatible with flexible copper cables.

Question: Does TE offer test accessories?

Answer: Yes, we can offer test rods and earthing adapters.

Question: Which voltage range do Screened Separable Connectors cover?

Answer: Our Screened Separable Connectors are rated for 33 kV and 42 kV.

Question: Are the Screened Separable Connectors suitable for offshore environments?

Answer: Yes, our Screened Separable Connectors can be used in both onshore and offshore wind farm environments since they are made of modified silicone rubber which ensures high performance even under broad temperature changes, high humidity and salinity. Additionally, they have the DNV GL certification for marine and offshore applications.

Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

Marine-Offshore-Shipbuilding Certified Yes
Dead Break Connection Product Type Inner Cone, T-Connector

Industry Standards

Compatible With Approved Standards Products GB/T 12706.4-2008, HD629.1-S2

Product Availability

Product Availability Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands

Other

Installation Instruction Polish, Dutch, Swedish, Italian, Russian, English, Hungarian, Estonian, Lithuanian, German, Bulgarian, Hebrew, Romanian, Portuguese, Flemish, Spanish, Norwegian, French, Finnish, Slovenian, Slovak, Croatian, Czech
EU RoHS Compliance Compliant, Compliant with Exemptions, Not Compliant
EU ELV Compliance Compliant, Compliant with Exemptions

Product Type Features

Installation Technology Wedge & Contact Ring, Shear Bolt, Mechanical
Bushing Type 630A, 630A/1250A, Size 3, 1250A, Size 2
Cable Shield Style Copper Tape, Copper Wire
Screened Screened

Electrical Characteristics

Voltage Class (kV) ≤ 12, ≤ 36, ≤ 42, ≤ 24

Body Features

Compatible Conductor Material Aluminum, Copper
Insulation Material Polymeric, XLPE/EPR

Dimensions

Compatible Conductor Diameter Range (mm) 7 – 32, 7 – 24.6
Compatible Conductor Diameter Range (in) .275 – 1.25, .275 – .968
Compatible Insulation Diameter Range (mm) 22.4 – 35.5, 28.9 – 36.4, 12.7 – 23.4, 48.4 – 54.3, 39.1 – 59, 17 – 30.1, 28.9 – 42, 21.2 – 34.6, 45 – 47.4, 21.3 – 34.6, 34 – 45.4
Compatible Conductor Cross-Section Range (mm²) 400, 25 – 70, 500 – 630, 120 – 240, 240, 95 – 120, 95 – 240, 150 – 240, 500, 25 – 95, 50, 630, 300, 185 – 300, 800, 95 – 185, 35 – 70, 240 – 400, 95 – 150, 35 – 95

Configuration Features

Number of Cores 3, 1

Reference Number

TE Internal Number CAT-RSTI

Related Materials

Datasheets & Catalog Pages

TE's RAYCHEM SCREENED COUPLING CONNECTORS RSTI-CC-58 pdf English
TE's RAYCHEM SCREENED COUPLING CONNECTORS RSTI-CC-68 pdf English
TE's RAYCHEM SCREENED COUPLING CONNECTORS RSTI-CC-X9 pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-58 IEC pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-68 IEC pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-X9 IEC pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI IEC pdf English
TE's RAYCHEM SCREENED T-CONNECTORS RSTI-935 GBT pdf English

Screened Separable Connectors 1250 A

Product Features

Product Availability : Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands

Installation Instruction : Polish, Dutch, Swedish, Italian, Russian, English, Hungarian, Estonian, Lithuanian, German, Bulgarian, Hebrew, Romanian, Portuguese, Flemish, Spanish, Norwegian, French, Finnish, Slovenian, Slovak, Croatian, Czech

Installation Technology : Wedge & Contact Ring, Shear Bolt, Mechanical

Voltage Class (kV): ≤ 12, ≤ 36, ≤ 42, ≤ 24

Bushing Type : 630A, 630A/1250A, Size 3, 1250A, Size 2

Key Features

Separable Connectors with Voltage Sensor

Improving Grid Reliability

Applications

How to Install TE's Raychem RSTI-CC (English)

View All TE's Raychem Separable Connectors

Frequently Asked Questions

Operation/Application

Marine-Offshore-Shipbuilding Certified Yes

Dead Break Connection Product Type Inner Cone, T-Connector

Industry Standards

Compatible With Approved Standards Products GB/T 12706.4-2008, HD629.1-S2

Product Availability

Product Availability Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands

Other

Installation Instruction Polish, Dutch, Swedish, Italian, Russian, English, Hungarian, Estonian, Lithuanian, German, Bulgarian, Hebrew, Romanian, Portuguese, Flemish, Spanish, Norwegian, French, Finnish, Slovenian, Slovak, Croatian, Czech

EU RoHS Compliance Compliant, Compliant with Exemptions, Not Compliant

EU ELV Compliance Compliant, Compliant with Exemptions

Product Type Features

Installation Technology Wedge & Contact Ring, Shear Bolt, Mechanical

Bushing Type 630A, 630A/1250A, Size 3, 1250A, Size 2

Cable Shield Style Copper Tape, Copper Wire

Screened Screened

Electrical Characteristics

Voltage Class (kV) ≤ 12, ≤ 36, ≤ 42, ≤ 24

Body Features

Compatible Conductor Material Aluminum, Copper

Insulation Material Polymeric, XLPE/EPR

Dimensions

Compatible Conductor Diameter Range (mm) 7 – 32, 7 – 24.6

Compatible Conductor Diameter Range (in) .275 – 1.25, .275 – .968

Compatible Insulation Diameter Range (mm) 22.4 – 35.5, 28.9 – 36.4, 12.7 – 23.4, 48.4 – 54.3, 39.1 – 59, 17 – 30.1, 28.9 – 42, 21.2 – 34.6, 45 – 47.4, 21.3 – 34.6, 34 – 45.4

Compatible Conductor Cross-Section Range (mm²) 400, 25 – 70, 500 – 630, 120 – 240, 240, 95 – 120, 95 – 240, 150 – 240, 500, 25 – 95, 50, 630, 300, 185 – 300, 800, 95 – 185, 35 – 70, 240 – 400, 95 – 150, 35 – 95

Configuration Features

Number of Cores 3, 1

Reference Number

TE Internal Number CAT-RSTI

Datasheets & Catalog Pages
