Direct Immersion RTD Probe w/ Twin Threaded Fitting (Configurable Product)

Direct Immersion RTD Probe w/ Twin Threaded Fitting (Configurable Product)-CAT-RTD0011

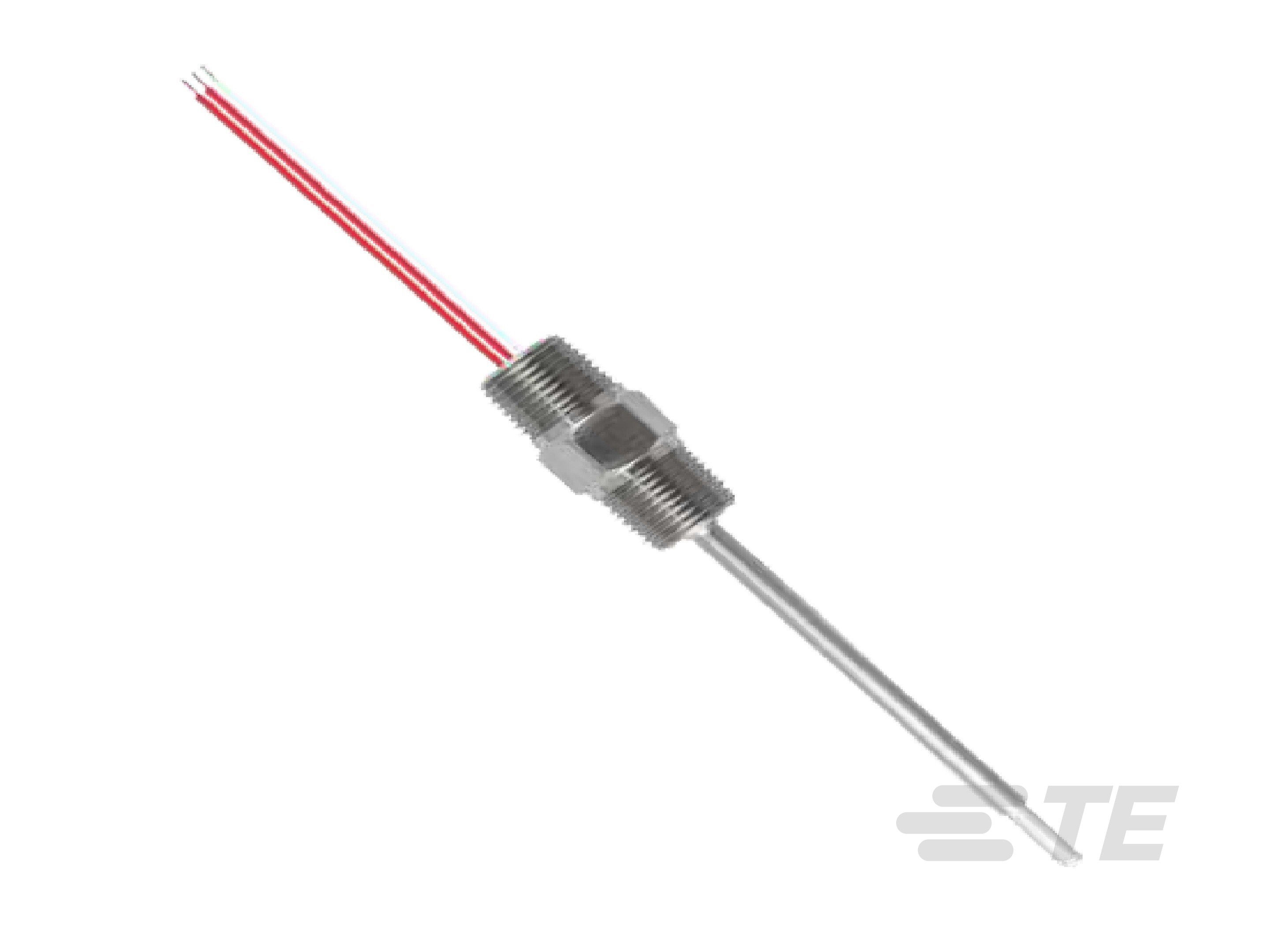

The 110M model direct immersion RTD probe with a twin threaded fitting is constructed with a stainless steel sheath and a welded connection. This product offers configurable options for element type, accuracy, lead wire configuration, lead wire, sheath dimensions, connection head, and thread fitting.
More Less

Product Features

  • RTD Sensor Type : Point Sensing Probe

  • Element Type : Stainless Steel & Aluminum

  • Element Material : Platinum

  • Lead Wire Style : PTFE

  • Operating Temperature (Max) : 250 °C [ 482 °F ]

Available from

LADD Inc
Overview

Features

  • Stainless steel sheath
  • Platinum, copper, or nickel elements
  • Teflon wire insulation
  • Silver plated or copper conductor wire stranding
  • 0.125", 0.188", 0.250" sheath diameter options

Applications

Performance Specifications

Repeatability: less than ±0.06% change in ice point resistance after 10 consecutive cycles between ice point and 250°C.



Long term stability: less than ±0.2% ice point resistance shift after 1,000 hours at 250°C.



Self heating: 10mW/C in water moving 3 feet/second



Pressure rating: 1,500 psi



Insulation resistance: 1,000 megaohms @ 500V, leads to case



Vibration: Withstands 5 to 500 Hz at 3 g-level peak for 3 hours. Per ASTM E 644, Sec. 10.



Shock: Withstands 50 g-level peak sine wave shock of 11 milliseconds duration. Per ASTM E 644, Sec. 11.

RTD Temperature Accuracy Specifications

Standard Tolerances at 0°C

Element Material TCR ±.06% ±0.12% ±0.2% ±0.5%
Platinum 0.00385 0.15°C, 0.06Ω 0.30°C, 0.12Ω 0.50°C, 0.19Ω 1.20°C, 0.46Ω
Platinum 0.00392 N/A N/A N/A 1.20°C, 0.46Ω
Copper 0.00427 N/A N/A 0.71°C, 0.028Ω 1.49°C, 0.58Ω
Nickel 0.00672 N/A N/A N/A 0.85°C, 0.68Ω
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • RTD Sensor Type  Point Sensing Probe

  • Element Type  Stainless Steel & Aluminum

  • Element Material  Platinum

  • Lead Wire Style  PTFE

Usage Conditions

  • Operating Temperature (Max)  250 °C [ 482 °F ]

Reference Number

  • TE Internal Number CAT-RTD0011
