AXISENSE-2 Dual Axis Tilt Sensors

AXISENSE-2 Dual Axis Tilt Sensors-CAT-TSI0020
  • MEAS
|
  • MEAS AXISENSE-2
The AXISENSE-2 CAN J1939-90 is a dual axis tilt sensor with a focus on platform leveling, dynamic engine management, tip-over protection, and tilt alarm. A fast response time and good accuracy makes this tilt sensor the ideal choice for mobile leveling applications. It features digital signal processing including temperature compensation.
More Less

Product Features

  • Measurement Principle : MEMS

  • Sensor Package : Plastic Housing

  • Measurement Axes : Dual Axis

  • Measurement Ranges (°): up to +/- 90

  • Housing Width (mm): Up to 70

Available from

LADD Inc
Overview

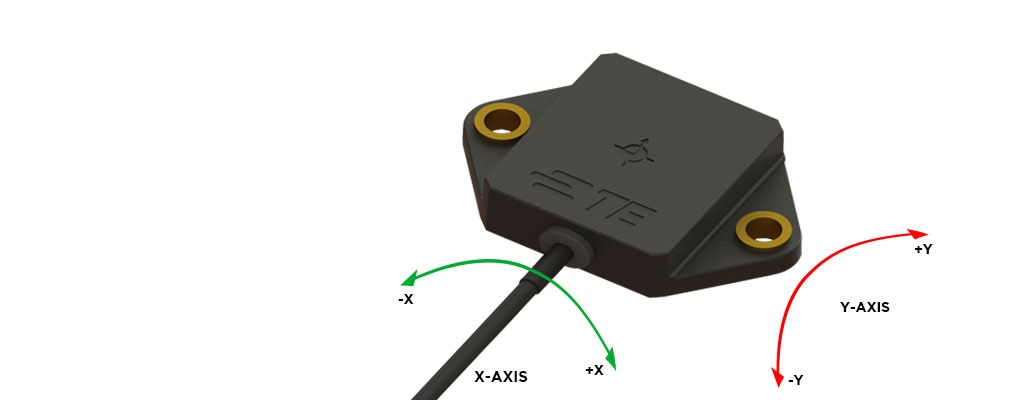

The AXISENSE-2
CAN J1939 inclinometer
perfect solution for
automatic tip-over protection.

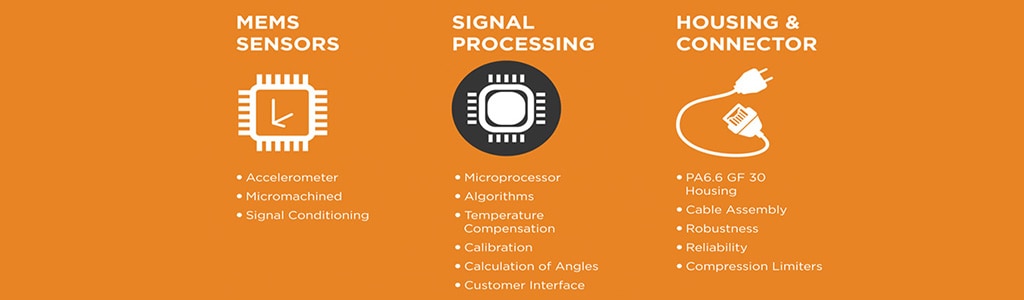

The integrated filter improves performance and allows using the sensor in many  noisy environments (e.g. vibrations). The inclinometer includes a powerful digital signal processing that offers various filter algorithms and allows customer specific OEM solutions. It is possible to adjust the sensor to different environments yielding an optimized performance. Customization can also be made in terms of angular range and connectivity, i.e. cable and connector. The PA6.6 housing is very compact in size and has compression limiter bushings for safe installation of the sensor. It is also compatible with oil, grease and fuel. Therefore it is frequently used for engine and vehicle applications.

± 90°

Measurement range

0.5°

-40 °C to +85 °C Operating temperature

Applications

  • Load & unload tilt monitoring
  • Man lift
  • Mast angle
  • Chassis, boom
  • Road grade monitoring
  • Bucket angle
  • Cabin leveling
  • Depth control
  • Paving equipment tool leveling
  • Crane chassis leveling
  • Mobile home automatic leveling
orange bar

Benefits

  • Dual axis inclinometer
  • Measurement ranges ±90°
  • CAN J1939 interface
  • 8 – 30 VDC supply voltage
  • 12 bit resolution
  • 100 Hz refresh rate
  • -40 °C – +85 °C temperature range
  • Accuracy typically: 0.5° (-40 °C – 85 °C) | 0.15°  (25 °C)
  • Digital signal processing includes: filter (e.g. vibration damping), temperature compensation
x

Other CAN Output Sensors



canbus string pot

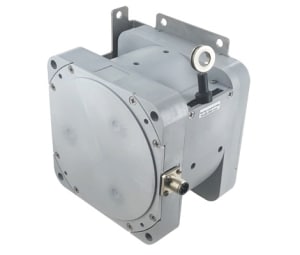

SKJ Series

CANBUS String Potentiometer

The SKJ string potentiometer is designed and manufactured for various applications and offers a CANBus output signal for simple integration.
TRICAN Digital Combination Sensor

TRICAN HTD2800 Series

Humidity Temperature Pressure Sensor

The TRICAN digital combination sensor provides output signals for relative humidity, temperature and pressure from a single device.
Features

Please review product documents or contact us for the latest agency approval information.

Dimensions

  • Resolution (°) up to +/- .01

  • Measurement Ranges (°) up to +/- 90

  • Housing Width (mm) Up to 70

  • Accuracy (°) up to +/- .3

Body Features

  • Product Orientation  Horizontal

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

  • Measurement Principle  MEMS

Product Type Features

  • Sensor Package  Plastic Housing

  • Interface Signal Type  Digital

Other

  • Measurement Axes  Dual Axis

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant

Industry Standards

  • IP Rating  IP67

Electrical Characteristics

  • Supply Voltage (VDC) 8 – 30

Operation/Application

  • Output Interface  CAN J1939

Configuration Features

  • Electrical Connection  Connector TE/AMP

Reference Number

  • TE Internal Number CAT-TSI0020
