BLE-5 Wireless Vibration Sensor
Product Features
-
Accelerometer Type : Wireless
-
Vibration Sensor Product Type : Wireless Accelerometers
-
Wireless Application : Bluetooth
-
Frequency Band (MHz): 2400
-
Number of Sensing Axes : Uniaxial, Triaxial
The model 8511N wireless accelerometer uses the Bluetooth® BLE-5 communication protocol, offering a simple, reliable, and secure means of expanding condition-based maintenance into plant areas where the cost to install wired systems is prohibitive, making data available to existing process control and information
systems. The Bluetooth® interface provides easy access to the embedded configuration settings at the sensor installation. The model 8511N incorporates a piezo-electric accelerometer which offers a wide bandwidth to >15kHz, outstanding
measurement resolution and superior long-term stability compared to design using MEMS solutions.
Technical Specifications
- Wireless piezoelectric single axis accelerometer
- Designed for condition monitoring
- Programmable and customer configurable
- Corrosion resistant stainless steel housing
- Wide bandwidth to >15kHz
- ATEX certified
- Explosive atmospheres certified
Features
- Compact design
- Up to 4-year battery life
- -40°C to +60°C operating temperature
- 35kHz resonant frequency
- Embedded FFT signal analysis
- Stud, magnet, or adhesive mounting accessories
Applications
- Condition based monitoring
- Electric motors
- Oil & gas equipment
- ICE powerplants
- Pumps for liquids
- Compressors
- Factory equipment
- Robots and cobots
- Autonomous guided vehicles
- HVACR equipment
TE Connectivity's (TE) 85x1N & 89x1N series brings great stability and longevity to industrial monitoring. Utilizing both Bluetooth® Low Energy and LoRaWAN® technology, these compact sensors fit seamlessly into tight spaces and diverse environments. These sensors offer a wide-bandwidth, with excellent resolution of up to 10kHz, compared to 4kHz in common MEMs-based models. The design features short and long-range reach with edge-computing for user-configurable settings and features.

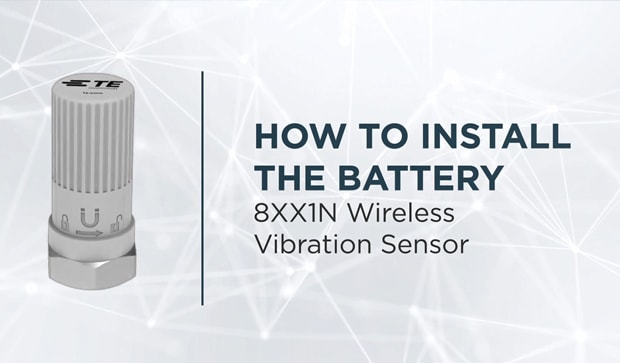

Welcome to our step-by-step guide on installing a battery in your wireless vibration sensor. In this video, we'll walk you through the simple process to ensure your sensor is up and running smoothly.
Please review product documents or contact us for the latest agency approval information.
Other
-
Overall Acceleration Range (±) (g) 50
-
EU RoHS Compliance Compliant with Exemptions
-
EU ELV Compliance Compliant
Industry Standards
-
IP Rating IP67
-
Wireless Application Bluetooth
-
Hazardous Area Approval Yes
Usage Conditions
-
Operating Temperature Range -40 – 80 °C [ -40 – 176 °F ]
Body Features
-
Primary Product Material Polymer, 316L Stainless Steel
-
Product Weight 165 g [ 5.82 oz ]
-
Number of Sensing Axes Uniaxial, Triaxial
Product Type Features
-
Accelerometer Type Wireless
-
Vibration Sensor Product Type Wireless Accelerometers
Signal Characteristics
-
Frequency Band (MHz) 2400
-
Frequency Response (Hz) 2 to 15000
Reference Number
-
TE Internal Number CAT-WVS0002
