LUMAWISE Endurance N Poke-In: Streetlight Dimming Receptacles

LUMAWISE Endurance N Poke-In: Streetlight Dimming Receptacles-CAT-Z23-DRE

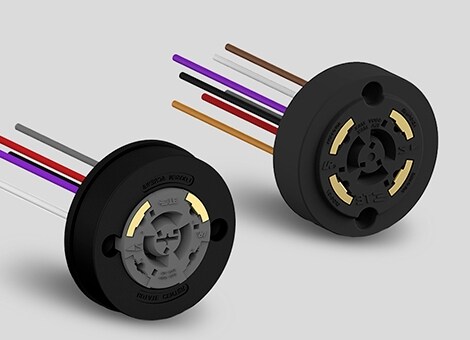

Version of the standard C136.41 dimming receptacles but with poke-in wire connections instead of flying leads, designed for manufacturing efficiencies. 3 and 7 positions. Power contacts 12 A, 480V AC. Signal Contacts 1.5 A, 30V AC / DC.
More Less

Product Features

  • Lighting Product Type : Shorting Cap, Connector

  • Lighting Connector Features Included : Not Rotatable, Rotatable

  • Connector System : Wire-to-Device, Component-to-Wire, Wire-to-Component

  • Number of Positions : 7, 5

  • Sealable : Yes

Available from

LADD Inc
Overview

two- or dual-node architecture

Hybrid Solutions for LED Street Lighting Systems

Learn about street lighting architecture designed to enhance smart capabilities in modern lighting systems and explore TE Connectivity’s advanced hybrid solutions.

Application

Street & Area Lighting Solutions

Learn about TE’s connectivity solutions engineered to reduce the complexity of LED streetlight architecture.
ANSI/NEMA C136.41 LUMAWISE Endurance N dimming receptacles

Product Group

LUMAWISE Endurance N Dimming Receptacles

Explore TE's LUMAWISE Endurance N dimming receptacle, engineered for outdoor commercial and utility lighting. The ANSI/NEMA receptacle is available with 2, 3, and 4 dimming contacts. The 2- and 4-position versions comply with ANSI C136.41, while the 3-position version complies with ANSI C136.10.
Datasheet(English)
LUMAWISE ENDURANCE N POKE-IN

LUMAWISE Endurance N poke-in is the next generation of ANSI type streetlight dimming receptacle. The flying leads on a standard ANSI dimming receptacle are a must in markets that use drivers with flying leads for the rest of the world, where terminal blocks are used. LUMAWISE Endurance N poke-in will help simplify a manufacturer’s supply chain and create manufacturing efficiencies.

LED lighting

LED Lighting Contact Us Form

Need some expert connectivity advice on your lighting designs? Have a question for our sales engineers? Are you looking for samples? Fill in this form and we'll connect with you shortly!

 CONNECT WITH US
Features

Please review product documents or contact us for the latest agency approval information.

Dimensions

  • Wire Size (AWG) 18 – 14, 14 – 18

Electrical Characteristics

  • Operating Voltage (VDC) 600

  • Operating Voltage (VAC) 600, 480

Contact Features

  • Contact Current Rating (Max) (A) 15

  • Contact Mating Area Plating Material  Gold

Body Features

  • Primary Product Color  Black

Mechanical Attachment

  • Connector Mounting Type  Panel Mount

Product Type Features

  • Connector & Contact Terminates To  Wire & Cable

  • Lighting Product Type  Shorting Cap, Connector

  • Connector System  Wire-to-Device, Component-to-Wire, Wire-to-Component

  • Sealable  Yes

Industry Standards

  • Compatible With Agency/Standards Products  UL, ANSI

  • Compatible With Approved Standards Products  UL 773

Configuration Features

  • Lighting Connector Features Included  Not Rotatable, Rotatable

  • Number of Positions  7, 5

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-Z23-DRE
