Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

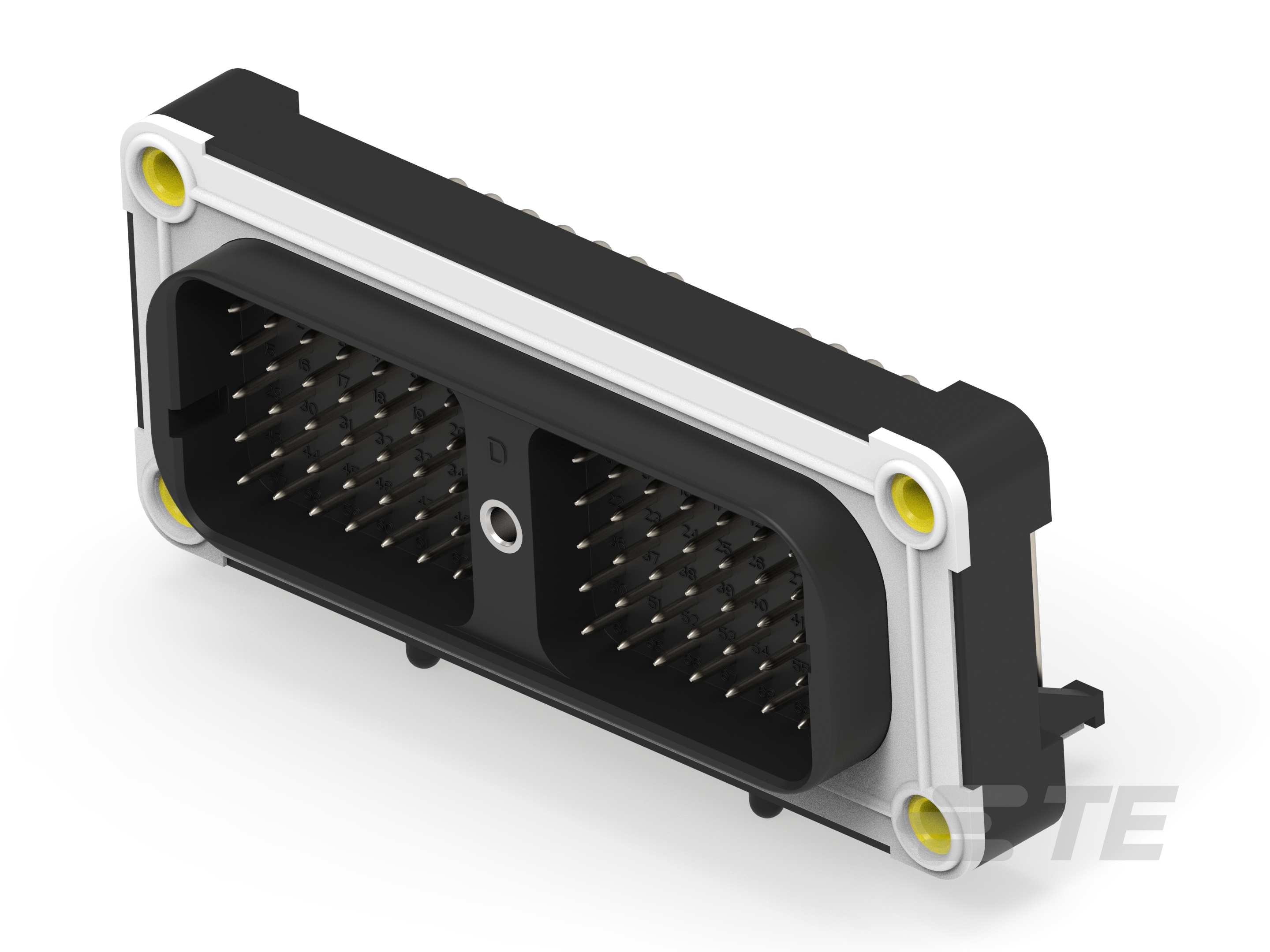

• Mixed & Hybrid Header : No

• PCB Connector Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : Yes

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Number of Sections : 2

• Number of Signal Positions : 70

• PCB Mount Orientation : Right Angle

• Number of Positions : 70

• Number of Rows : 5

• Nominal Voltage Architecture (V): 12, 24

• Voltage Rating (Max) (VDC): 250

• Voltage Rating (Max) (VAC): 250

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Connector & Keying Code : D

• Primary Product Color : Black

• Mating Pin Diameter : 1.56 mm [ .061 in ]

• Contact Mating Area Plating Material : Nickel (Ni)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 13

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Mounting Screw

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : With

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Centerline (Pitch) : 5.5 mm [ .216 in ]

• Connector Length : 127 mm [ 5 in ]

• Profile Height from PCB : 54 mm [ 2.12 in ]

• PCB Thickness (Recommended) : .78 – 2.36 mm [ .031 – .093 in ]

• Connector Width : 46.3 mm [ 1.82 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Shielded : No

• Circuit Application : Power

• IP Rating : IP6K9K

• Packaging Quantity : 1

• Packaging Method : Box
