Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

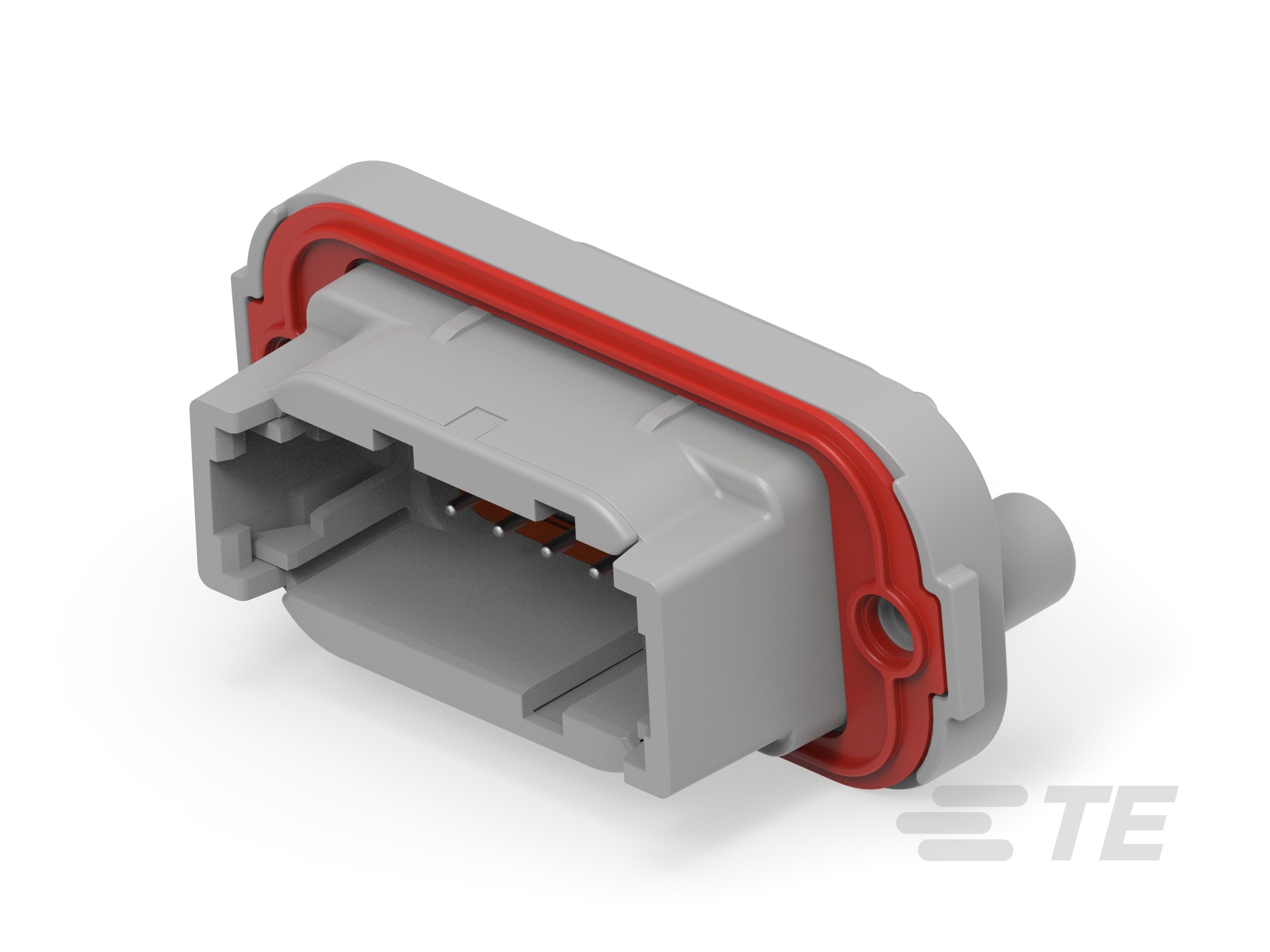

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Number of Sections : 1

• Number of Signal Positions : 12

• PCB Mount Orientation : Right Angle

• Nominal Voltage Architecture (V): 12, 24

• Voltage Rating (Max) (VDC): 250

• Voltage Rating (Max) (VAC): 250

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Connector & Keying Code : A

• Primary Product Color : Gray

• Mating Pin Diameter : 1.02 mm [ .04 in ]

• Contact Current Rating (Max) (A): 7.5

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Mounting Screw

• Mating Alignment Type : Keyed

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : With

• Connector Mounting Type : Board Mount

• Connector Length : 38.23 mm [ 1.505 in ]

• Profile Height from PCB : 35.54 mm [ 1.36 in ]

• PCB Thickness (Recommended) : .78 – 2.36 mm [ .031 – .093 in ]

• Connector Width : 60.96 mm [ 2.4 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Shielded : No

• Circuit Application : Signal

• IP Rating : Not Tested

• Packaging Quantity : 125
