Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Bolt Head Size (Across Flats) (mm): 19

• Inside Diameter Range (mm): 20

• Compatible Conductor Range (AWG/kcmil): 4/0 – 300, 2/0 – 500, 4/0 – 600

• Compatible Conductor Cross-Section Range (mm²): 95 – 150, 95 – 300, 70 – 240

• Compatible With Approved Standards Products : IEC 61238-1 Class A

• Product Availability : China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas

• Installation Technology : Shear Bolt

• Voltage Class (kV): ≤ 42

• Compatible Conductor Material : Copper, Aluminum

• Conductor Type : Sector, Solid, Stranded

• Primary Product Material : Aluminum Alloy

• Blocked : No

• Number of Bolts : 4

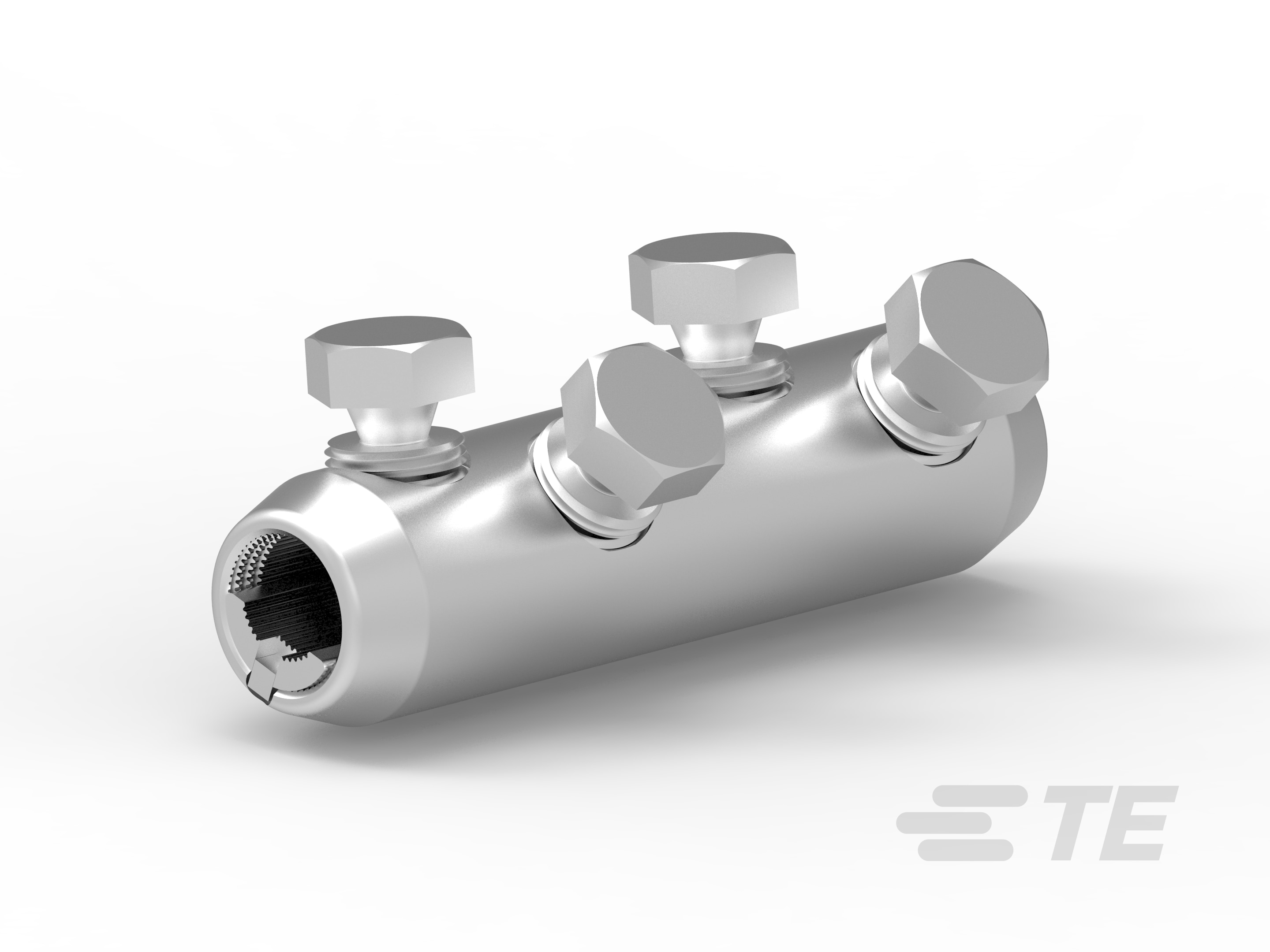

• Mechanical Connector Product Type : Mechanical Connector
