• Shelf Life : 2 Years

• Filler : RAPID 43B

• Filler Packing (D/C) : Cans

• Tap Geometry : Parallel

• Cable Sealing Method : Foam Rools

• Case Seal : Labyrinth

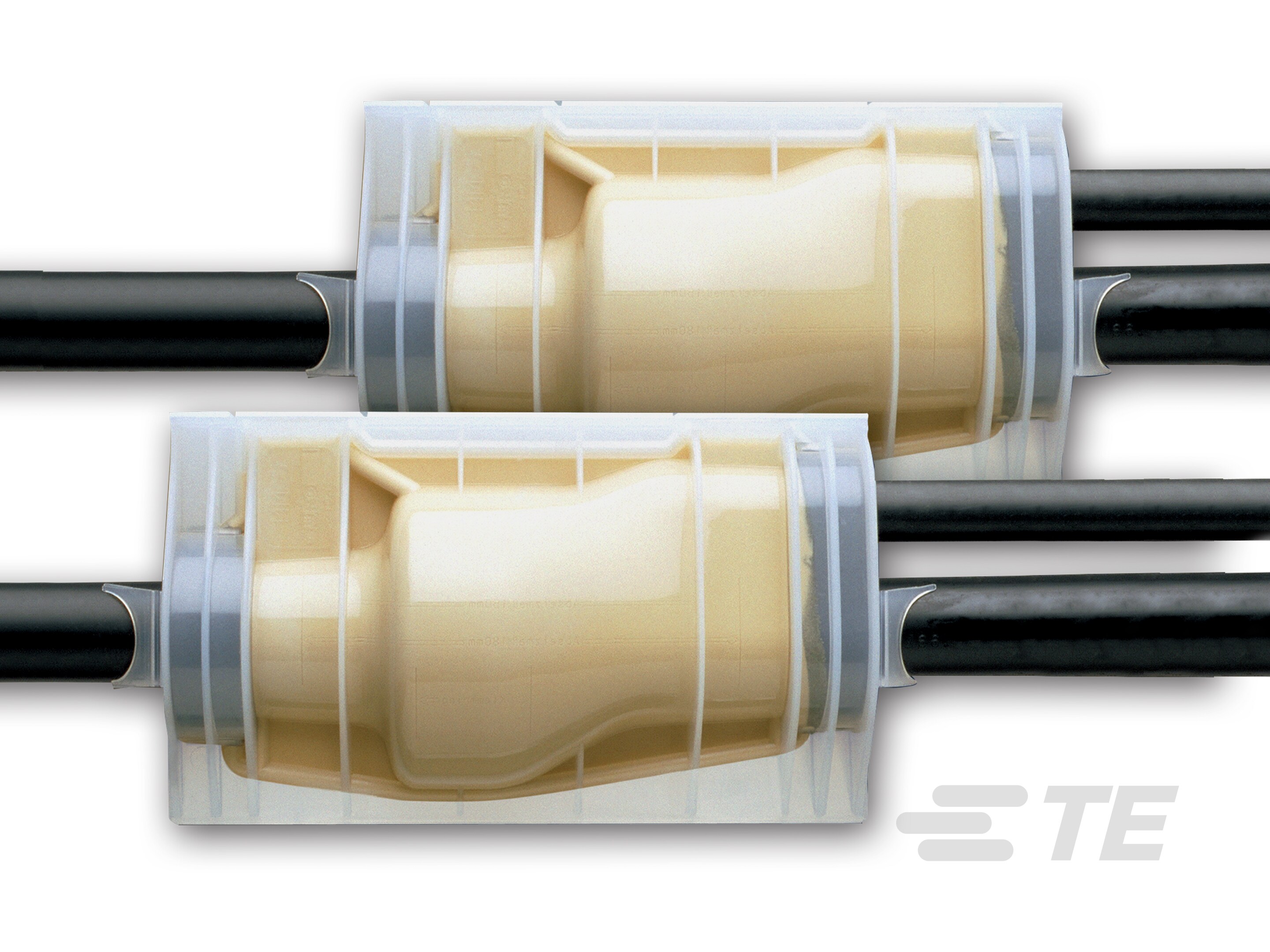

• Joints & Splice Product Type : LV Resin Branch Joint

• Closing Method : Snap to Close

• Compatible Cable Cross-Section - Branch (Max) (mm²): 70

• Filler Volume (l): 1.7

• Compatible Cable Cross-Section - Branch (Min) (mm²): 10

• Compatible Cable Diameter - Main (Min) (mm): 27

• Compatible Cable Diameter - Branch (Min) (mm): 18

• Compatible Cable Diameter - Branch (Max) (mm): 36

• Compatible Cable Cross-Section - Main (Max) (mm²): 150

• Compatible Cable Cross-Section - Main (Min) (mm²): 35

• Compatible Cable Diameter - Main (Max) (mm): 55

• Number of Branch Wires (Max) : 4

• Number of Main Wires (Max) : 4

• Packaging Quantity : 1

• Fluid Resistance Type : Water, Humic Acids

• Primary Product Color : Transparent

• Compatible With Approved Standards Products : EN 50393

• Strain Relief : Without

• UV-Stabilized : No

• Product Availability : Worldwide

• Installation Instruction : English

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant
