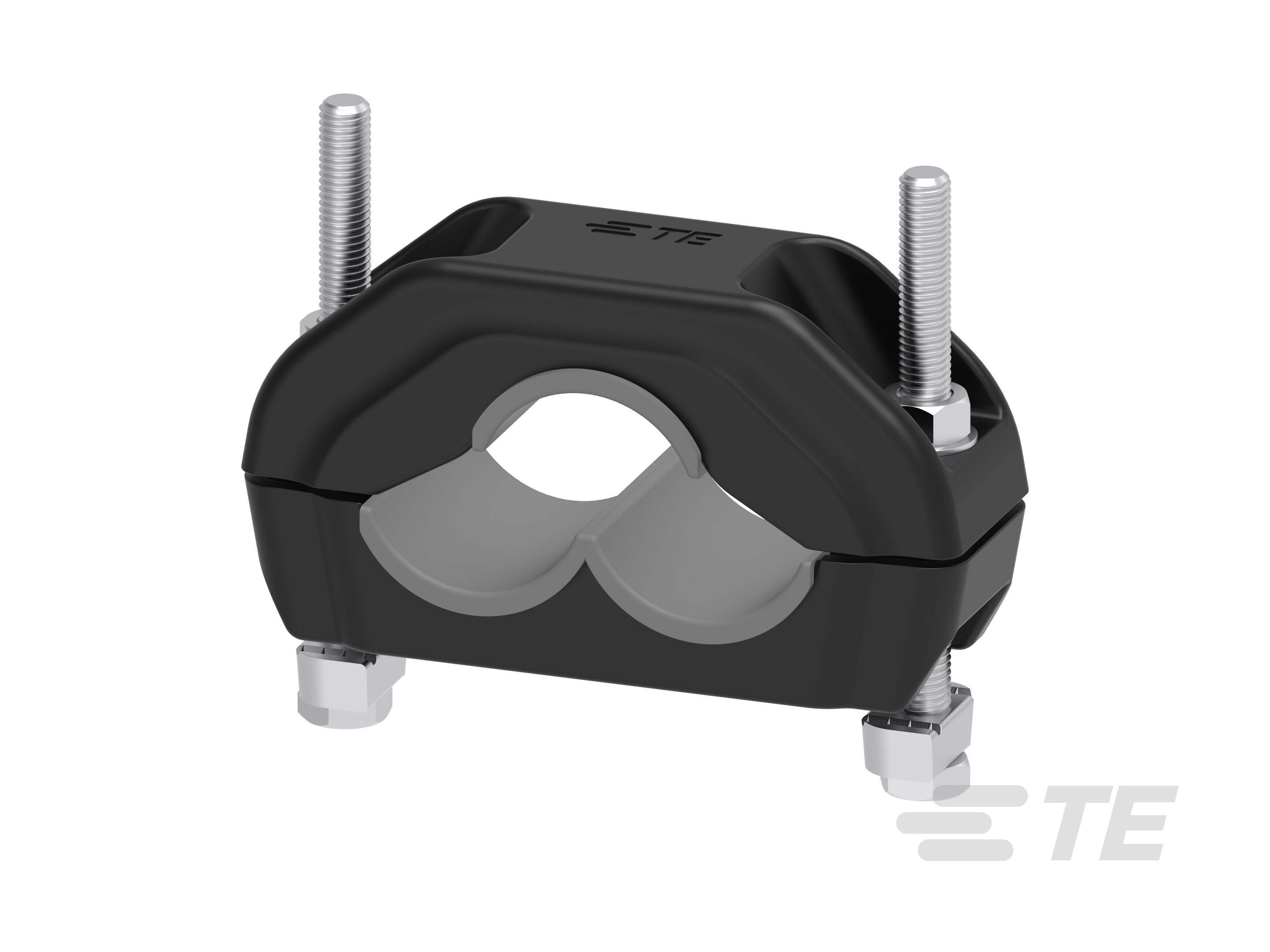

3 Cables, Compatible Cable Diameter Range 63 – 75 mm [2.48 – 2.95 in], Bolt Hole Centers 187 mm [7.36 in], Hardware, Grounding & Mounting
ER0089-000
3 Cables, Compatible Cable Diameter Range 63 – 75 mm [2.48 – 2.95 in], Bolt Hole Centers 187 mm [7.36 in], Hardware, Grounding & Mounting
- TE Internal #: ER0089-000
- TE Internal Description: CCT63-75-SN
- All Cable Cleats made from V0 Flame-Retardant Polymer (89)
-
Number of Cables to be Mounted : 3
-
Compatible Cable Diameter Range : 63 – 75 mm [ 2.48 – 2.95 in ]
-
Bolt Hole Centers : 187 mm [ 7.36 in ]
-
Height (Installed) : 170 mm [ 6.69 in ]
-
Bolt Size : 1 x M12
Documents
Product Drawings
- Single Cable Cleat CD ENG_CD_AU34997_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ER0089-000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_ER0089-000_A.2d_dxf.zip English
- ENG_CVM_CVM_ER0089-000_A.3d_igs.zip English
- ENG_CVM_CVM_ER0089-000_A.3d_stp.zip English
Datasheets & Catalog Pages
- TREFOIL CABLE CLEATS ENG_DS_EPP-3748_2201.pdf English
- TREFOIL CABLE CLEATS GER_DS_EPP-3748_2201.pdf German
- TREFOIL CABLE CLEATS SPA_DS_EPP-3748_2201.pdf Spanish
- TREFOIL CABLE CLEATS FRE_DS_EPP-3748_2201.pdf French
- TREFOIL CABLE CLEATS NOR_DS_EPP-3748_2201.pdf Norwegian
Instruction Sheets
- Instruction Sheet (non U.S.) ENG_SS_EPP-3680_A.pdf English
