• Bolt Head Size (Across Flats) (mm): 13

• Inside Diameter Range (mm): 12.8

• Compatible Conductor Range (AWG/kcmil): 4 – 2/0, 4 – 4/0

• Compatible Conductor Cross-Section Range (mm²): 16 – 95, 10 – 50, 25 – 70, 25 – 95

• Compatible With Approved Standards Products : IEC 61238-1 Class A

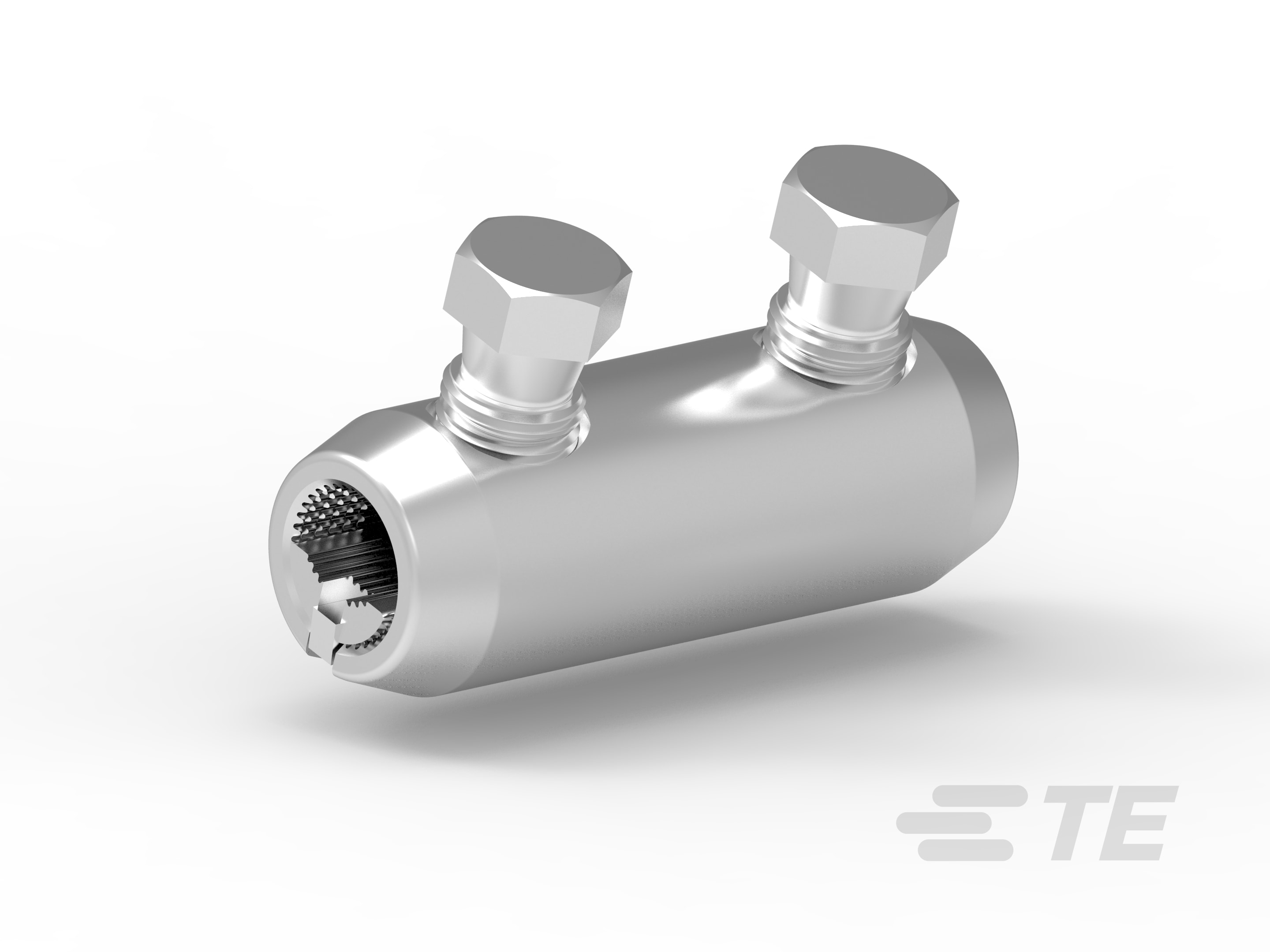

• Mechanical Connector Product Type : Mechanical Connector

• Installation Technology : Shear Bolt

• Voltage Class (kV): ≤ 42

• Compatible Conductor Material : Copper, Aluminum

• Conductor Type : Sector, Solid, Stranded

• Primary Product Material : Aluminum Alloy

• Blocked : No

• Number of Bolts : 2

• Product Availability : China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas
