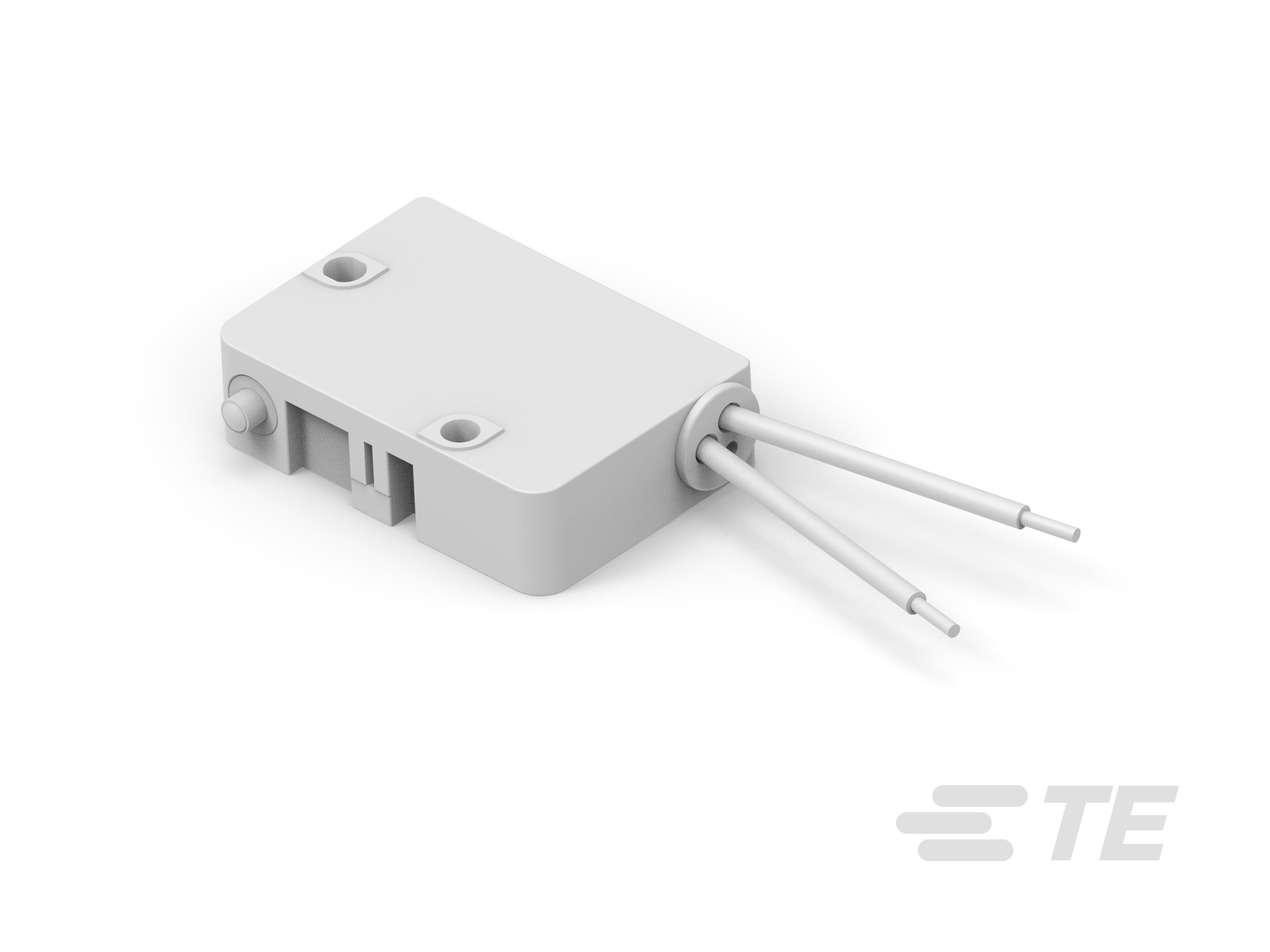

10.1 A Snap Action Switch, Single Pole - Double Throw Configuration (Pole-Throw), Plunger, 24 VDC, 250 VAC, Vertical, Micro, KISSLING Microswitch
MZW1 122 088 913
10.1 A Snap Action Switch, Single Pole - Double Throw Configuration (Pole-Throw), Plunger, 24 VDC, 250 VAC, Vertical, Micro, KISSLING Microswitch
-
- KISSLING
- KISSLING Microswitch
- TE Internal #: K1042014
- TE Internal Description: Micro Switch MZW1 122 088 913
-
Contact Current Rating (A): 10.1
-
Configuration (Pole-Throw) : Single Pole - Double Throw
-
Actuator Style : Plunger
-
Operating Voltage (VDC): 24
-
Operating Voltage (VAC): 250
Documents
Product Drawings
- Mikroschalter GER_CD_MZW1_122_088_913_5.pdf German
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_MZW1_122_088_913_1.pdf 3D
- Customer View Model ENG_CVM_CVM_MZW1_122_088_913_1.2d_dxf.zip English
- ENG_CVM_CVM_MZW1_122_088_913_1.3d_igs.zip English
- ENG_CVM_CVM_MZW1_122_088_913_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING MICRO SWITCH Series MZW1 ENG_DS_K1166735_A.pdf English
