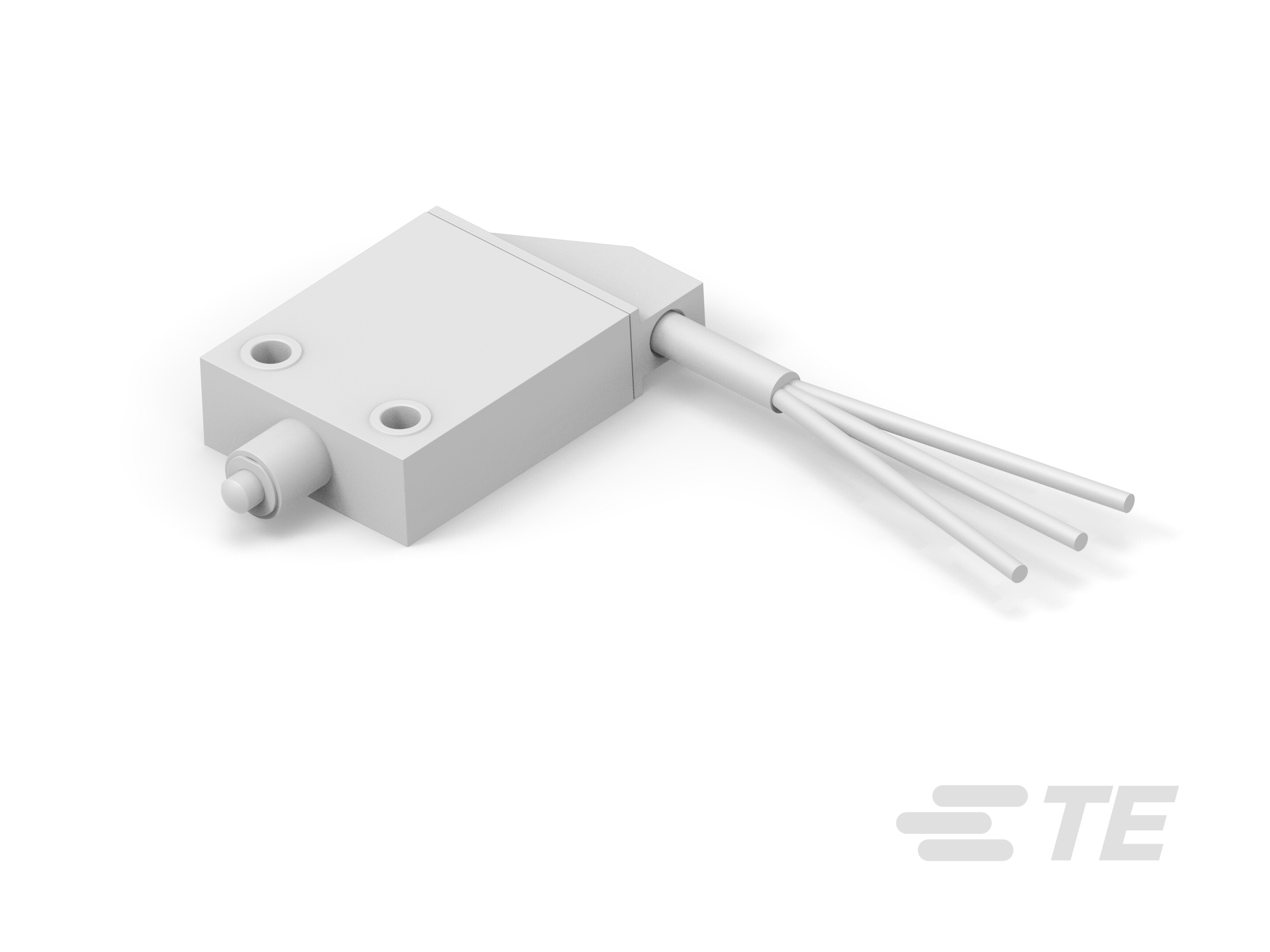

MND1 141 200
1.5 A / 2 A / 5 A Snap Action Switch, Single Pole - Single Throw Configuration (Pole-Throw), Plunger, 24 VDC, 250 VAC / 460 VAC, KISSLING Microswitch
MND1 141 200
1.5 A / 2 A / 5 A Snap Action Switch, Single Pole - Single Throw Configuration (Pole-Throw), Plunger, 24 VDC, 250 VAC / 460 VAC, KISSLING Microswitch
-
- KISSLING
- KISSLING Microswitch
- TE Internal #: K1121719
- TE Internal Description: Micro Switch MND1 141 200
-
Contact Current Rating (A): 1.5, 5, 2
-
Configuration (Pole-Throw) : Single Pole - Single Throw
-
Actuator Style : Plunger
-
Operating Voltage (VDC): 24
-
Operating Voltage (VAC): 250, 460
Documents
Product Drawings
- MICRO SWITCH Microschalter ENG_CD_MND1-141-200_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_MND1_141_200_1.pdf 3D
- Customer View Model ENG_CVM_CVM_MND1_141_200_1.2d_dxf.zip English
- ENG_CVM_CVM_MND1_141_200_1.3d_igs.zip English
- ENG_CVM_CVM_MND1_141_200_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING MICRO SWITCH Series MND 1 ENG_DS_K1166733_A.pdf English
