35-210-060-R

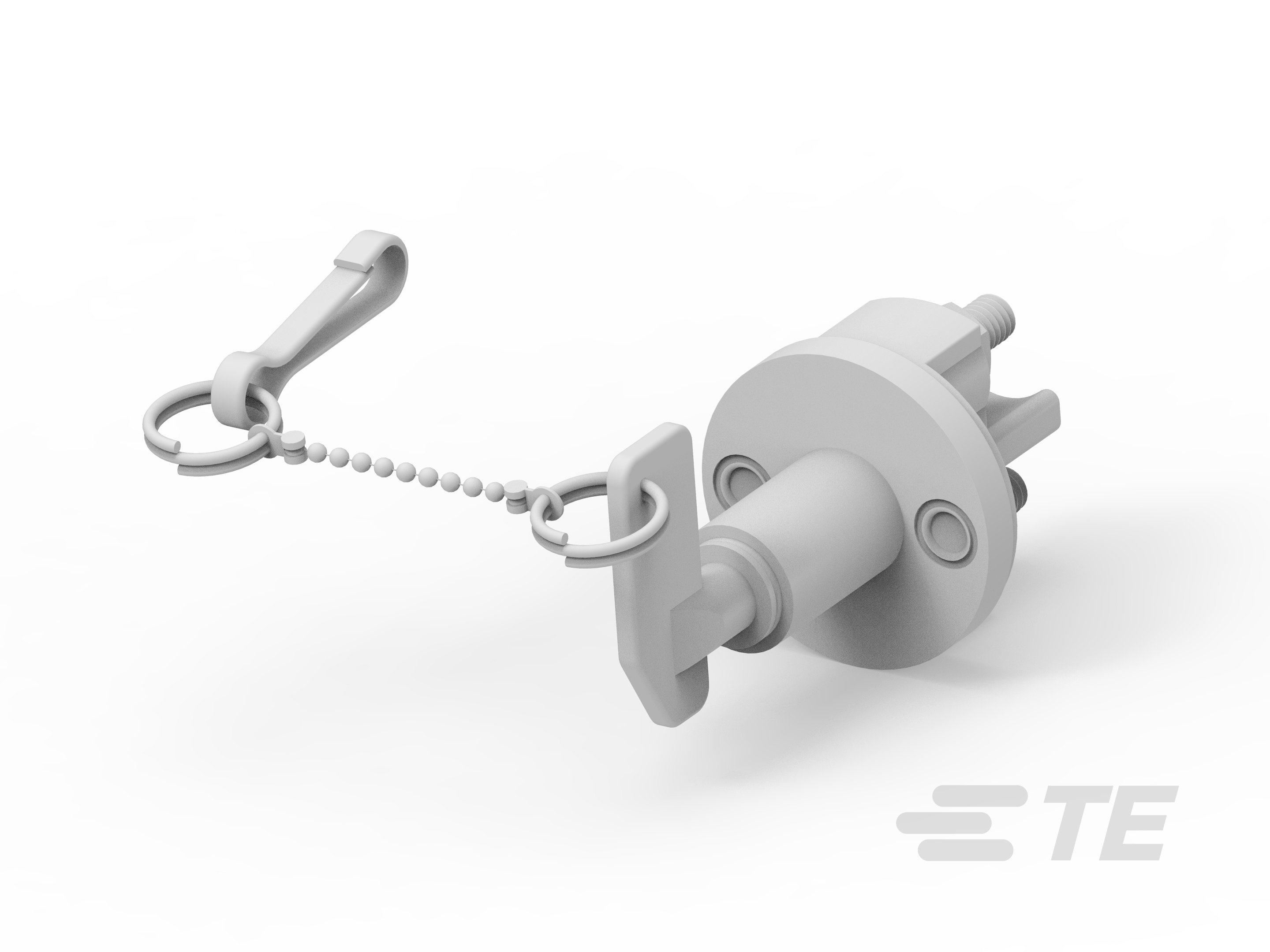

200 A Battery Disconnect Switch, 32 VDC, 1 Pole, M8, 0 Auxillary Positions, Round Flange, Lever, Removable With Chain, Red Handle, KISSLING Series 35
35-210-060-R
200 A Battery Disconnect Switch, 32 VDC, 1 Pole, M8, 0 Auxillary Positions, Round Flange, Lever, Removable With Chain, Red Handle, KISSLING Series 35
-
- KISSLING
- KISSLING Series 35
- TE Internal #: K1135221
- TE Internal Description: Battery Disconnector 35-210-060-R
- All Battery Disconnector, 200A, 1 Pole (30)
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Termination Thread Size : M8
-
Operating Handle Type : Lever
-
Number of Auxiliary Contacts : 0
-
Sealed Device : Yes
Documents
Product Drawings
- BATTERY DISCONNECTOR 200A Batterietrennschalter 200A ENG_CD_35-210-060-R_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_K1135221_1.pdf 3D
- Customer View Model ENG_CVM_CVM_K1135221_1.2d_dxf.zip English
- ENG_CVM_CVM_K1135221_1.3d_igs.zip English
- ENG_CVM_CVM_K1135221_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING BATTERY DISCONNECTOR Series 35 / 200A ENG_DS_K1166706_B.pdf English
