35-210-050-R-900

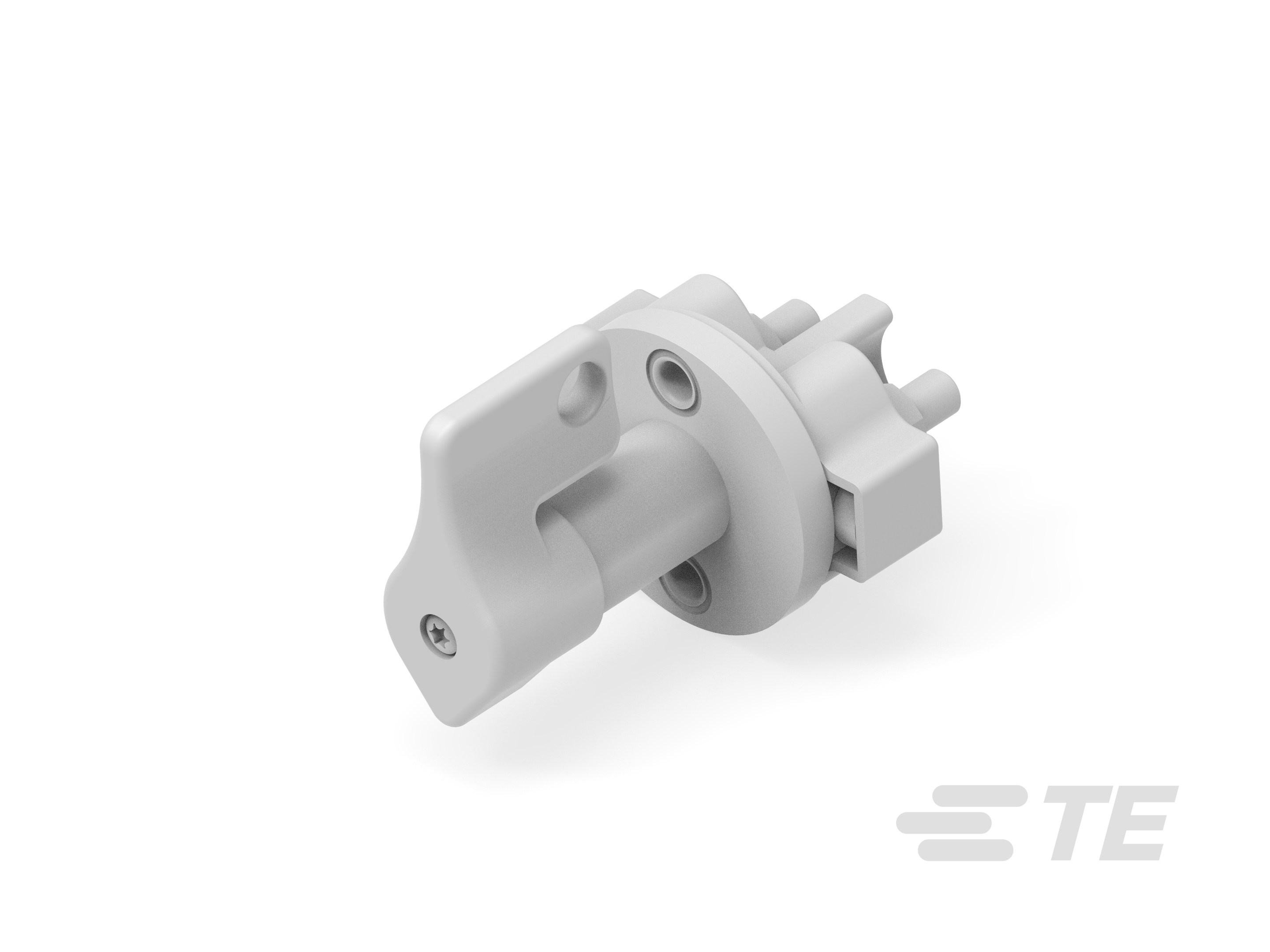

250 A Battery Disconnect Switch, 80 VDC, 1 Pole, M8, 0 Auxillary Positions, Round Flange, Pointer Key, Removable Without Chain, KISSLING Series 35
35-210-050-R-900
250 A Battery Disconnect Switch, 80 VDC, 1 Pole, M8, 0 Auxillary Positions, Round Flange, Pointer Key, Removable Without Chain, KISSLING Series 35
-
- KISSLING
- KISSLING Series 35
- TE Internal #: K1149711
- TE Internal Description: Battery Disconnector 35-210-050-R-900
- All Battery Disconnector, 200A, 1 Pole (30)
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Termination Thread Size : M8
-
Operating Handle Type : Pointer Key
-
Number of Auxiliary Contacts : 0
-
Sealed Device : Yes
Documents
Product Drawings
- Battery Disconnector 200A/80VDC ENG_CD_35-210-050-R-900_2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_35-210-050-R-900_1.pdf 3D
- Customer View Model ENG_CVM_CVM_35-210-050-R-900_1.2d_dxf.zip English
- ENG_CVM_CVM_35-210-050-R-900_1.3d_igs.zip English
- ENG_CVM_CVM_35-210-050-R-900_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING BATTERY DISCONNECTOR Series 35 / 200A ENG_DS_K1166706_B.pdf English
