Enabling High Speed with DDR5 DIMM Sockets
TE Connectivity’s (TE) DDR5 DIMM sockets are the next generation offering of memory hardware designed for high performance computing and server platforms. With the ability to support up to 6.4 GT/s (giga-transfers per second) in bandwidth, DDR5 sockets deliver on performance while maintaining the quality and robustness expected by the end user.
Product Overview

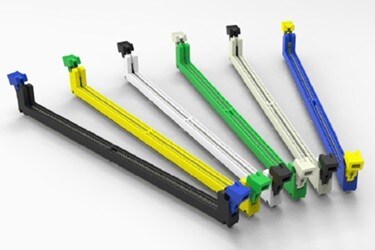

The DDR5 DIMM Socket is designed with short, medium, long, and narrow latch options to address multiple different PCB space requirements. Also with several colors and plating options, designers will not have to compromise between space demands and performance. TE’s DDR5 DIMM Sockets are engineered for higher data rates, providing twice the speed of DDR4 solutions, and built for increased reliability to withstand higher system shock and vibration.
Product Features
High Performance, Robust, Customized
- When partnered with TE Connectivity processor socket solutions and PCIe (Gen 5), DDR5 DIMM Sockets support the data rates required by next generation system architectures.
- Increased thermal protection minimizes asset downtime and increases overall system reliability.
- Robust construction and design features that allow for ease of installation and system upgrades.
- Custom features selectable via part number allowing for ease of ordering.
Key Benefits
High Speed, Better Airflow, Increased Reliability
- Higher data rates: supporting up to 6.4 GT/s.
- Narrow latch types and space saving features allow for better airflow between components.
- Better coplanarity and easy to install design prevents difficult soldering rework.
- Stronger latch tower and available hooking options allow for increased reliability.
TE Connectivity’s (TE) DDR5 DIMM socket is the next generation offering of memory hardware designed for high performance computing and server platforms.
TE’s fifth generation of double data rate 5 (DDR5) dual inline memory module (DIMM) sockets include surface mount technology and can address the higher data rates needed for today’s memory module applications. Designed in accordance with JEDEC industry standards, this socket includes 288 positions, 0.85mm pitch. DDR5 DIMM sockets support 288 pin SMT type. This socket is designed with short, medium, long and narrow latch options to address different space requirements. It is also available in multiple color and plating options.
