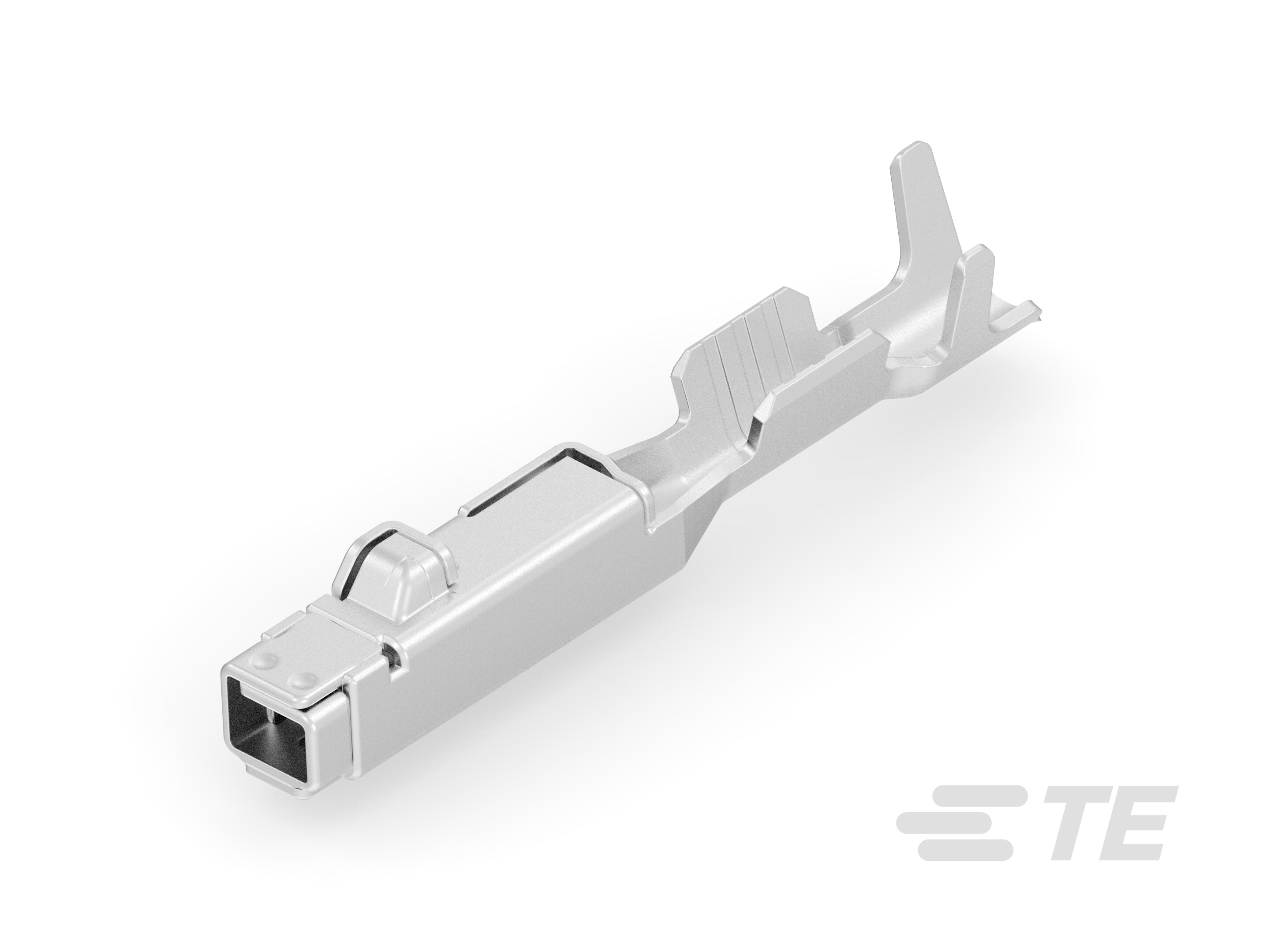

Receptacle Terminal, Gold (Au), 1.2 mm [.047 in] Tab Width, .6 mm [.024 in] Tab Thickness, 23 – 22 AWG, .25 – .35 mm² Wire, MCON 1.2mm
1534594-2
Receptacle Terminal, Gold (Au), 1.2 mm [.047 in] Tab Width, .6 mm [.024 in] Tab Thickness, 23 – 22 AWG, .25 – .35 mm² Wire, MCON 1.2mm
-
- MCON
- MCON 1.2mm ,
- AMP MCP Hybrid Coax
- TE Internal #: 1534594-2
- TE Internal Description: MCON 1.2 CB REC SRC AU
- All MCON Receptacle and Tab (64)
-
Terminal Type : Receptacle
-
Interface Plating : Gold (Au)
-
Mating Tab Width : 1.2 mm [ .047 in ]
-
Mating Tab Thickness : .6 mm [ .024 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
