175778-7

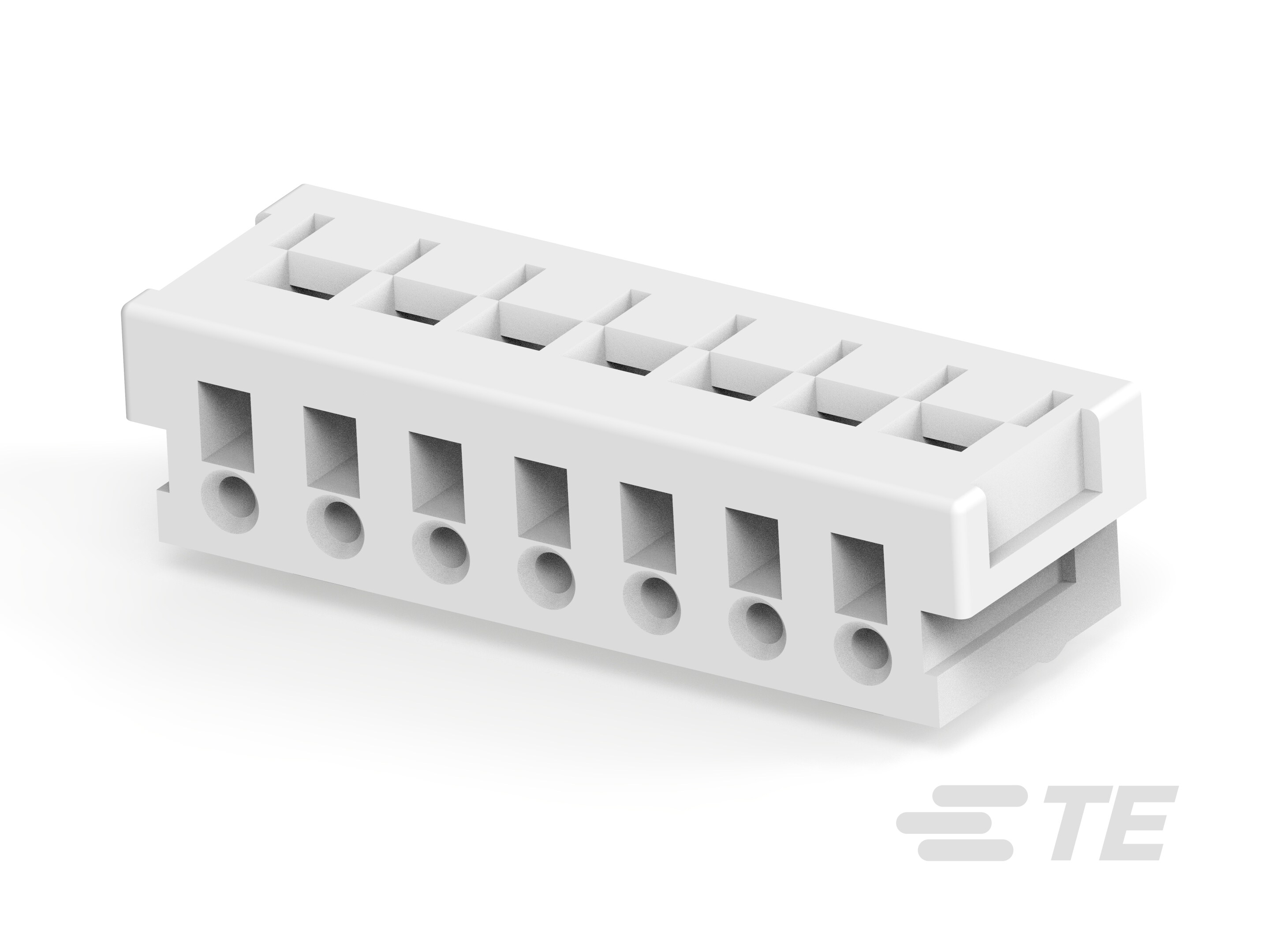

Housing, Receptacle, Wire-to-Board, 7 Position, 2 mm [.078 in] Centerline, Crimp, 1 Row, Natural, Mating Retention, Wire & Cable, Power & Signal
175778-7
Housing, Receptacle, Wire-to-Board, 7 Position, 2 mm [.078 in] Centerline, Crimp, 1 Row, Natural, Mating Retention, Wire & Cable, Power & Signal
-
- AMP CT
- TE Internal #: 175778-7
- TE Internal Description: CT. CRIMP REC HSG 7P
- All AMP COMMON TERMINATION HOUSINGS (176)
-
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
-
Primary Product Color : Natural
-
Connector & Contact Terminates To : Wire & Cable
-
Contact Layout : Inline
-
Connector & Housing Type : Receptacle
Documents
Product Drawings
- crimp type receptacle housing (amp ct connector 2mm pitch) English
- crimp type receptacle housing (amp ct connector 2mm pitch) ENG_CD_175778_D2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_175778-7_D1.pdf English
- Customer View Model ENG_CVM_175778-7_D1.2d_dxf.zip English
- ENG_CVM_175778-7_D1.3d_igs.zip English
- ENG_CVM_175778-7_D1.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-5140_E1.pdf English
- S_114-5140_E1.tif English
- Product Specification S_108-5297_B2.tif English
- ENG_SS_108-5297_B2.pdf English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6233_1700336_A.pdf English
- ENG_AAD_CSA_CERT_164196_6233_1700336_C1_B.pdf English
