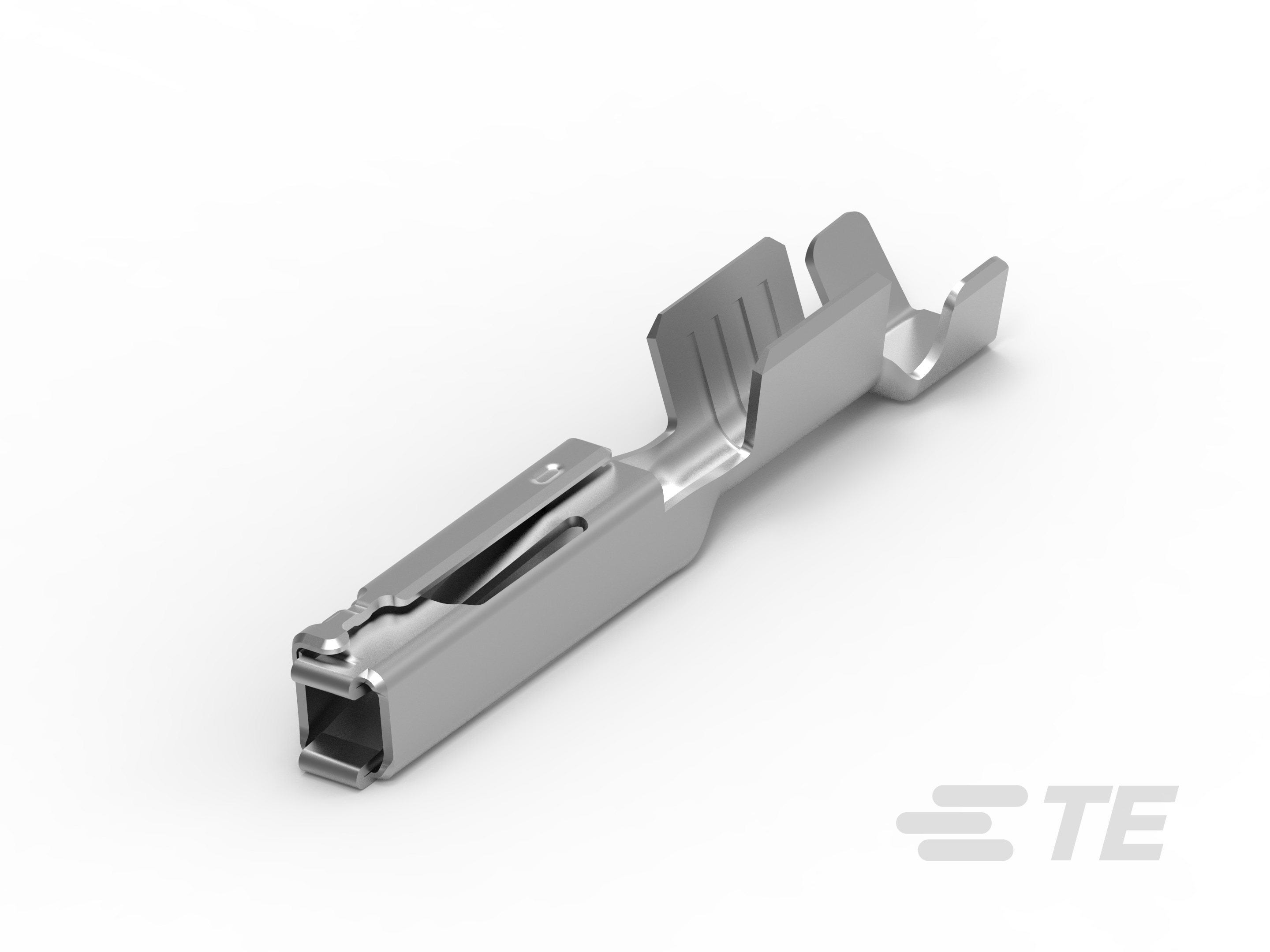

Receptacle Terminal, Mating Tab Width 1.2 mm [.047 in], Tab Thickness .64 mm [.025 in], 17 AWG Wire Size, Sealable, Get .64 Connector System
1924782-1
Receptacle Terminal, Mating Tab Width 1.2 mm [.047 in], Tab Thickness .64 mm [.025 in], 17 AWG Wire Size, Sealable, Get .64 Connector System
-
- Get .64 Connector System
- TE Internal #: 1924782-1
- TE Internal Description: GET FEM TERM 1.2MM, TS, SNAG 1MMSQ
- All GET .64 CONNECTOR SYSTEM, RECEPT AND TAB (24)
-
Terminal Type : Receptacle
-
Mating Tab Width : 1.2 mm [ .047 in ]
-
Mating Tab Thickness : .64 mm [ .025 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Wire Size (AWG): 17
