2-31890-1

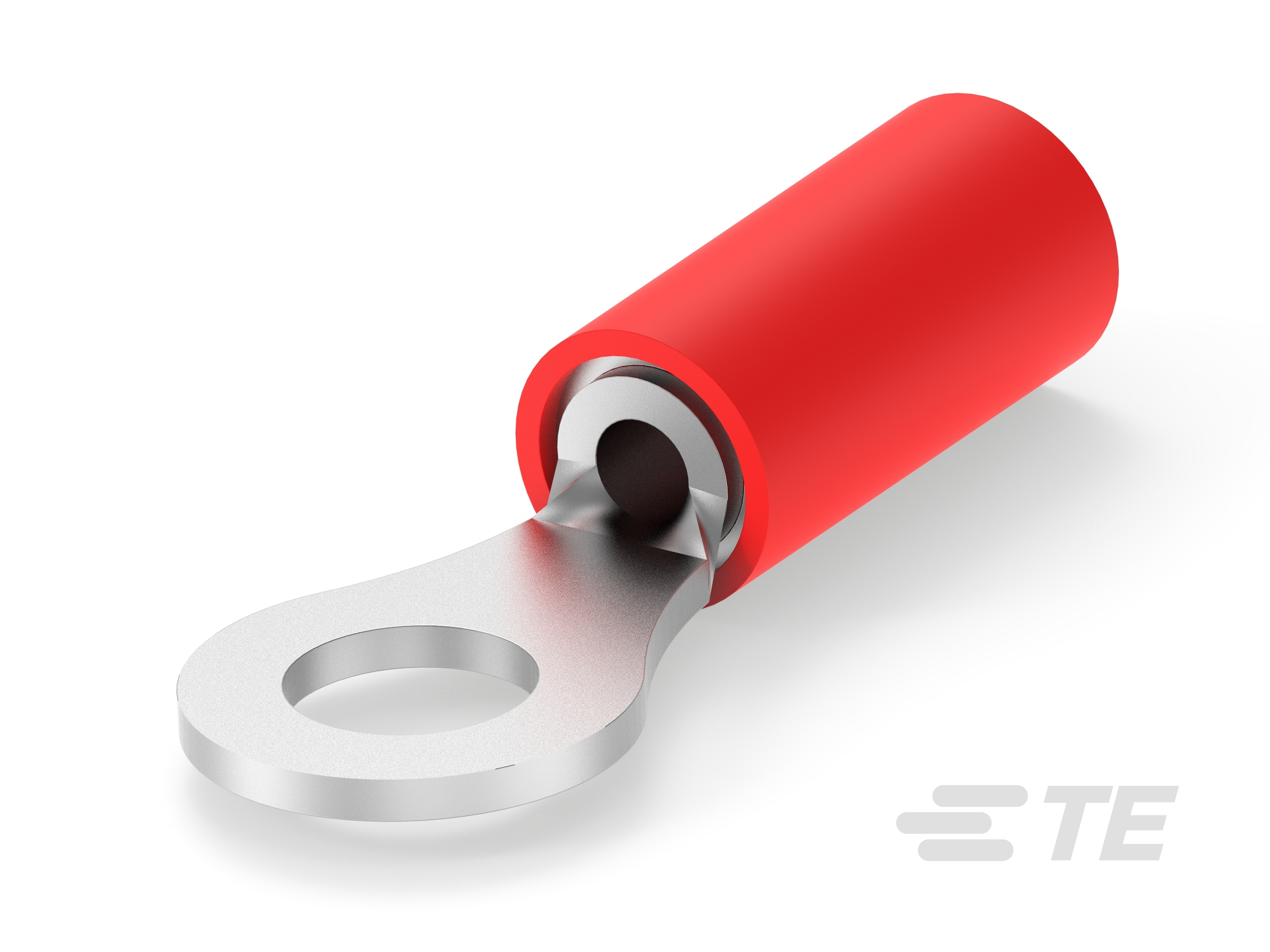

Closed Ring Tongue Terminal, 22 AWG, #8 / M4 Stud Size, 4.17 mm [.164 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
2-31890-1
Closed Ring Tongue Terminal, 22 AWG, #8 / M4 Stud Size, 4.17 mm [.164 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated
-
- PIDG
- TE Internal #: 2-31890-1
- TE Internal Description: PIDG R 22-16 COMM 22-18 MIL 8
- Alias #: 403354103
- All PIDG Ring Tongue Terminals (411)
-
Packaging Method : Tape Mounted
-
Operating Temperature Range : 105 °C [ 221 °F ]
-
Wire Size (AWG): 22
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Tongue Thickness : .79 mm [ .031 in ]
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG, WIRE SIZE, 22-16 AWG ENG_CD_31890_V4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-31890-1_AF.pdf 3D
- Customer View Model ENG_CVM_CVM_2-31890-1_AF.2d_dxf.zip English
- ENG_CVM_CVM_2-31890-1_AF.3d_igs.zip English
- ENG_CVM_CVM_2-31890-1_AF.3d_stp.zip English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_1437861_B.pdf English
