2-962841-1

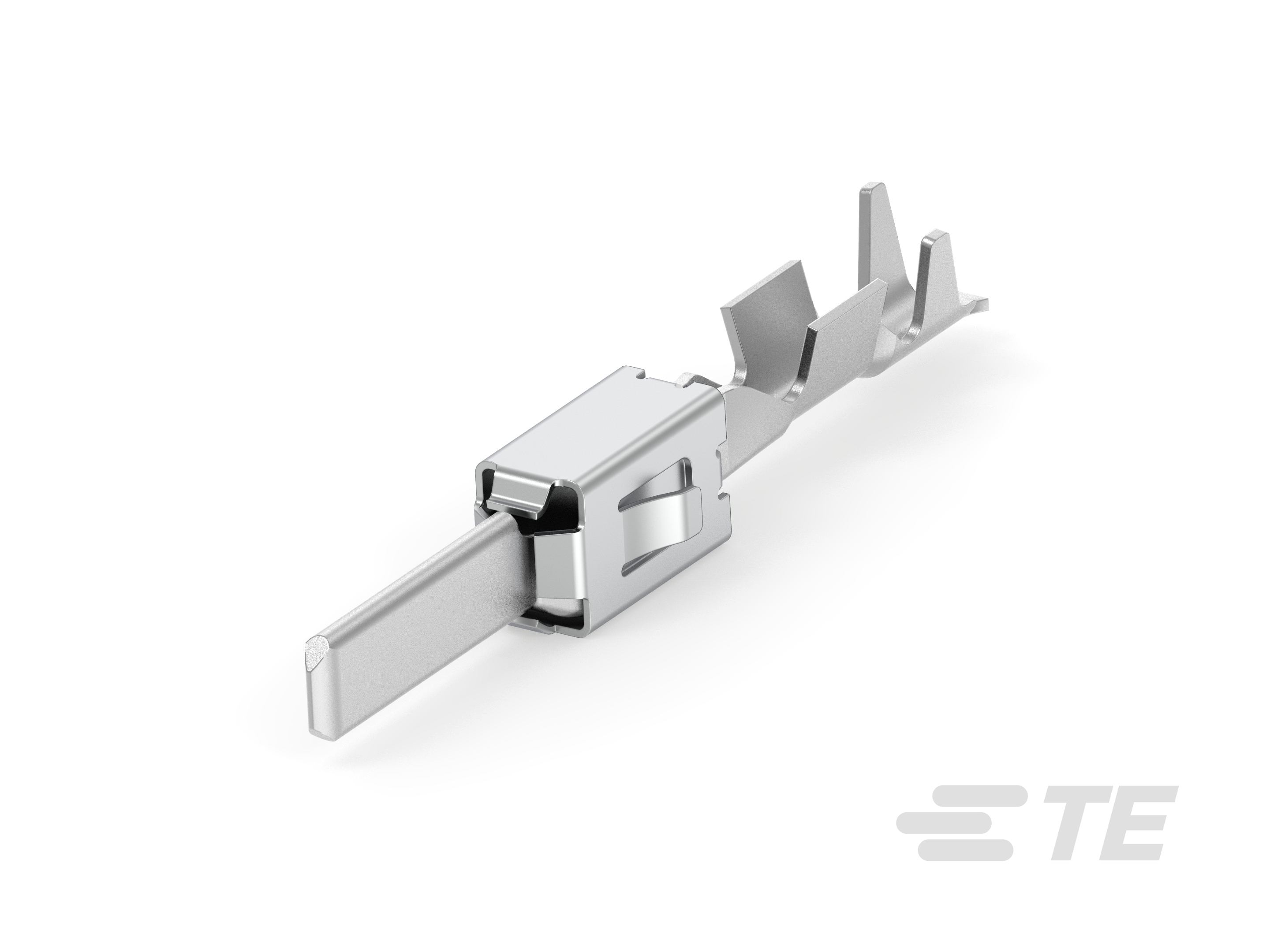

Tab Terminal, 20 – 17 AWG, .5 – 1 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), .8 mm [.031 in] Tab Thickness, Timer Connector System
2-962841-1
Tab Terminal, 20 – 17 AWG, .5 – 1 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), .8 mm [.031 in] Tab Thickness, Timer Connector System
-
- AMP
- Junior Power Timer ,
- Timer Connector System
- TE Internal #: 2-962841-1
- TE Internal Description: TAB 2.8x0.8 CONTACT CF SRC Sn
- All TIMER, RECEPTACLE AND TAB (279)
-
Terminal Type : Tab
-
Wire Size (AWG): 20 – 17
-
Wire Size (mm²): .5 – 1
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Interface Plating : Tin (Sn)
Documents
Product Drawings
- PRODUCT GROUP DRAWING FOR TAB 2.8x0.8 Produktgruppenzeichnung fuer ENG_CD_1355052_A18.pdf English
- TAB 2.8x0.8 Flachstecker 2,8x0,8 ENG_CD_962841_F1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-962841-1_F.pdf 3D
- Customer View Model ENG_CVM_CVM_2-962841-1_F.2d_dxf.zip English
- ENG_CVM_CVM_2-962841-1_F.3d_igs.zip English
- ENG_CVM_CVM_2-962841-1_F.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18051-1_G.pdf English
- GER_SS_114-18022_N.pdf German
- ENG_SS_114-18051_L1.pdf English
- ENG_SS_114-18022-20_L.pdf English
- Product Specification ENG_SS_108-1067_B.pdf English
