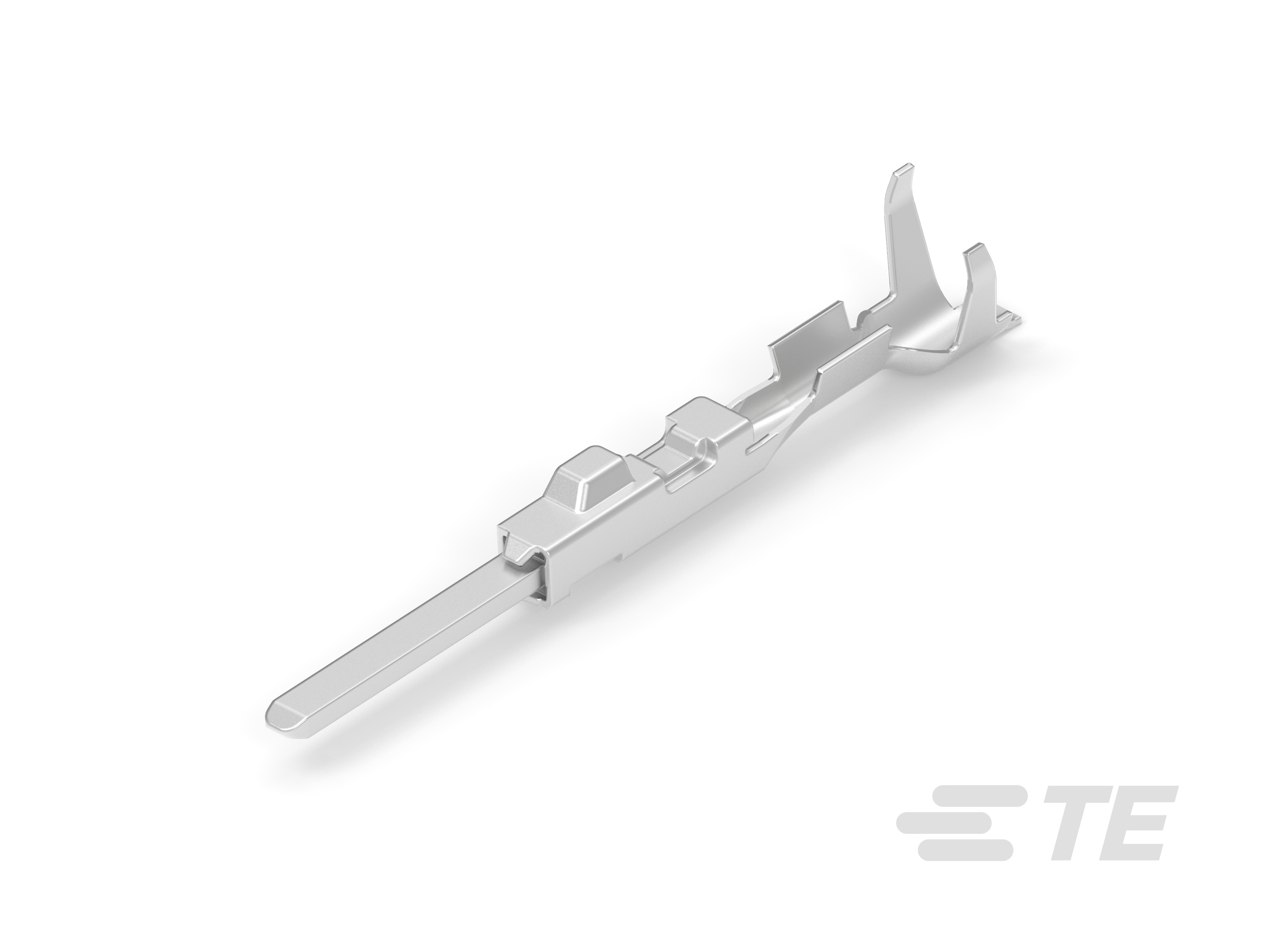

Tab Terminal, 23 – 22 AWG, .25 – .35 mm² Wire, 1.2 mm [.047 in] Tab Width, Tin (Sn), Sealable, .63 mm [.024 in] Tab Thickness, MCON 1.2mm
2141114-1
Tab Terminal, 23 – 22 AWG, .25 – .35 mm² Wire, 1.2 mm [.047 in] Tab Width, Tin (Sn), Sealable, .63 mm [.024 in] Tab Thickness, MCON 1.2mm
-
- MCON
- AMP MCP Hybrid Coax ,
- MCON 1.2mm
- TE Internal #: 2141114-1
- TE Internal Description: MCON 1.2 CB TAB SWS SN
- All MCON Receptacle and Tab (64)
-
Terminal Type : Tab
-
Wire Size (AWG): 23 – 22
-
Wire Size (mm²): .25 – .35
-
Mating Tab Width : 1.2 mm [ .047 in ]
-
Interface Plating : Tin (Sn)
Documents
Product Drawings
- MCON 1.2 TAB-CB-TERMINAL MCON 1.2 Tab-CB-Flachstecker ENG_CD_1718398_B11.pdf English
- TAB 1.2 x 0.6 CB CONTACT, SWS Tab 1.2 x 0.6 CB Kontakt, SWS GER_CD_2141114_B.pdf German
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2141114-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2141114-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2141114-1_A.3d_igs.zip English
- ENG_CVM_CVM_2141114-1_A.3d_stp.zip English
Product Specifications
- Application Specification GER_SS_114-18022_N.pdf German
- ENG_SS_114-18464_Y.pdf English
- ENG_SS_114-18022-20_L.pdf English
- Product Specification ENG_SS_108-18782_E.pdf English
