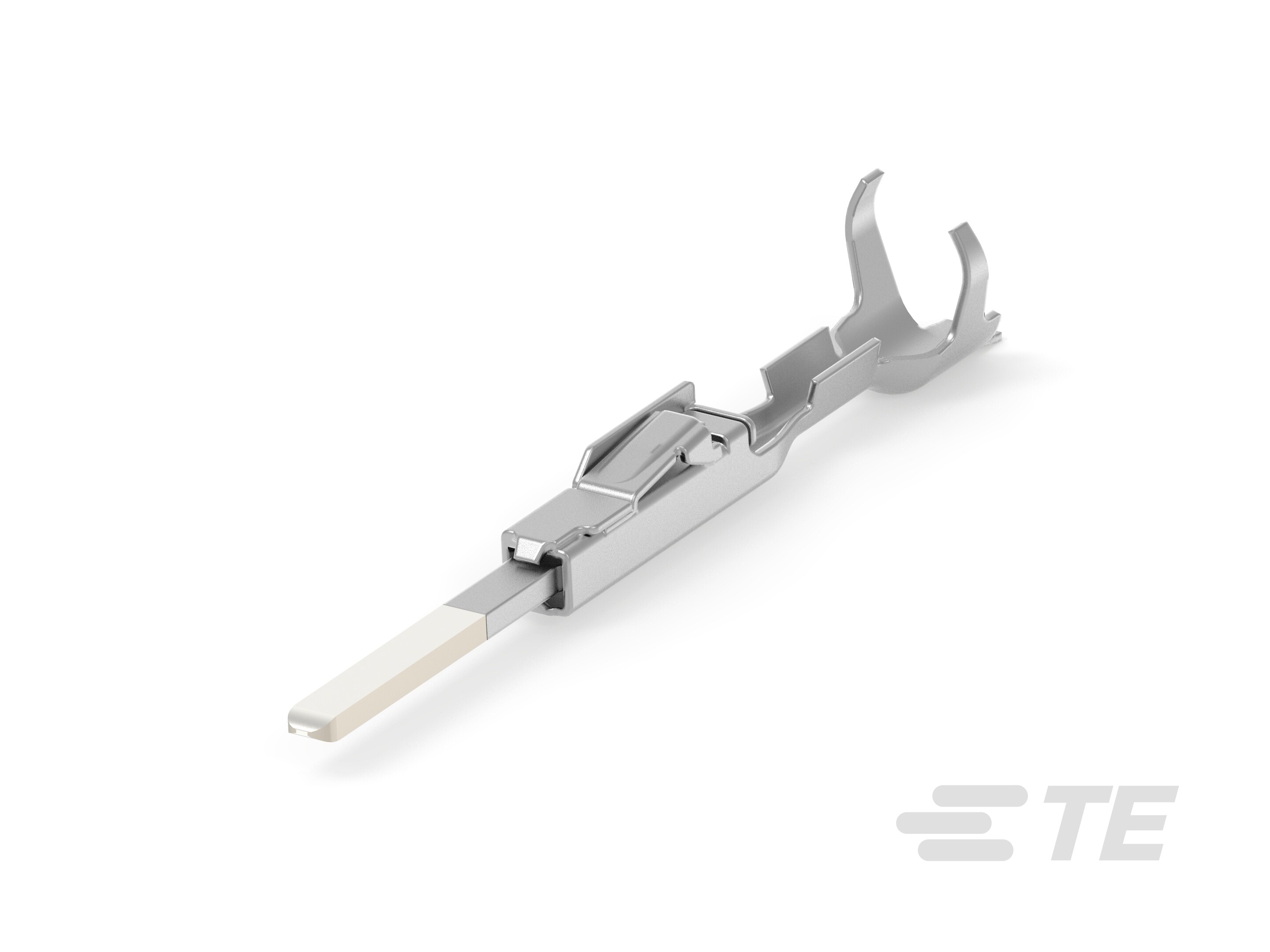

Tab Terminal, Silver (Ag), 1.2 mm [.047 in] Tab Width, .6 mm [.024 in] Tab Thickness, 26 – 25 AWG, .13 – .17 mm² Wire, MCON Interconnection System
2141868-3
Tab Terminal, Silver (Ag), 1.2 mm [.047 in] Tab Width, .6 mm [.024 in] Tab Thickness, 26 – 25 AWG, .13 – .17 mm² Wire, MCON Interconnection System
-
- MCON Interconnection System
- TE Internal #: 2141868-3
- TE Internal Description: TAB 1.2X0.6,SWS; 0,08-0,15SQMM
- All MCON Receptacle and Tab (64)
-
Terminal Type : Tab
-
Interface Plating : Silver (Ag)
-
Mating Tab Width : 1.2 mm [ .047 in ]
-
Mating Tab Thickness : .6 mm [ .024 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
Documents
Product Drawings
- PRODUCT GROUP DRAWING FOR TAB CONTACT 1.2 MM ENG_CD_1418754_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2141868-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2141868-3_A.2d_dxf.zip English
- ENG_CVM_CVM_2141868-3_A.3d_igs.zip English
- ENG_CVM_CVM_2141868-3_A.3d_stp.zip English
Product Specifications
- Application Specification GER_SS_114-18022_N.pdf German
- ENG_SS_114-18464_Y.pdf English
- ENG_SS_114-18022-20_L.pdf English
- Product Specification ENG_SS_108-18782_E.pdf English
