TLRS157540ER002FTDG

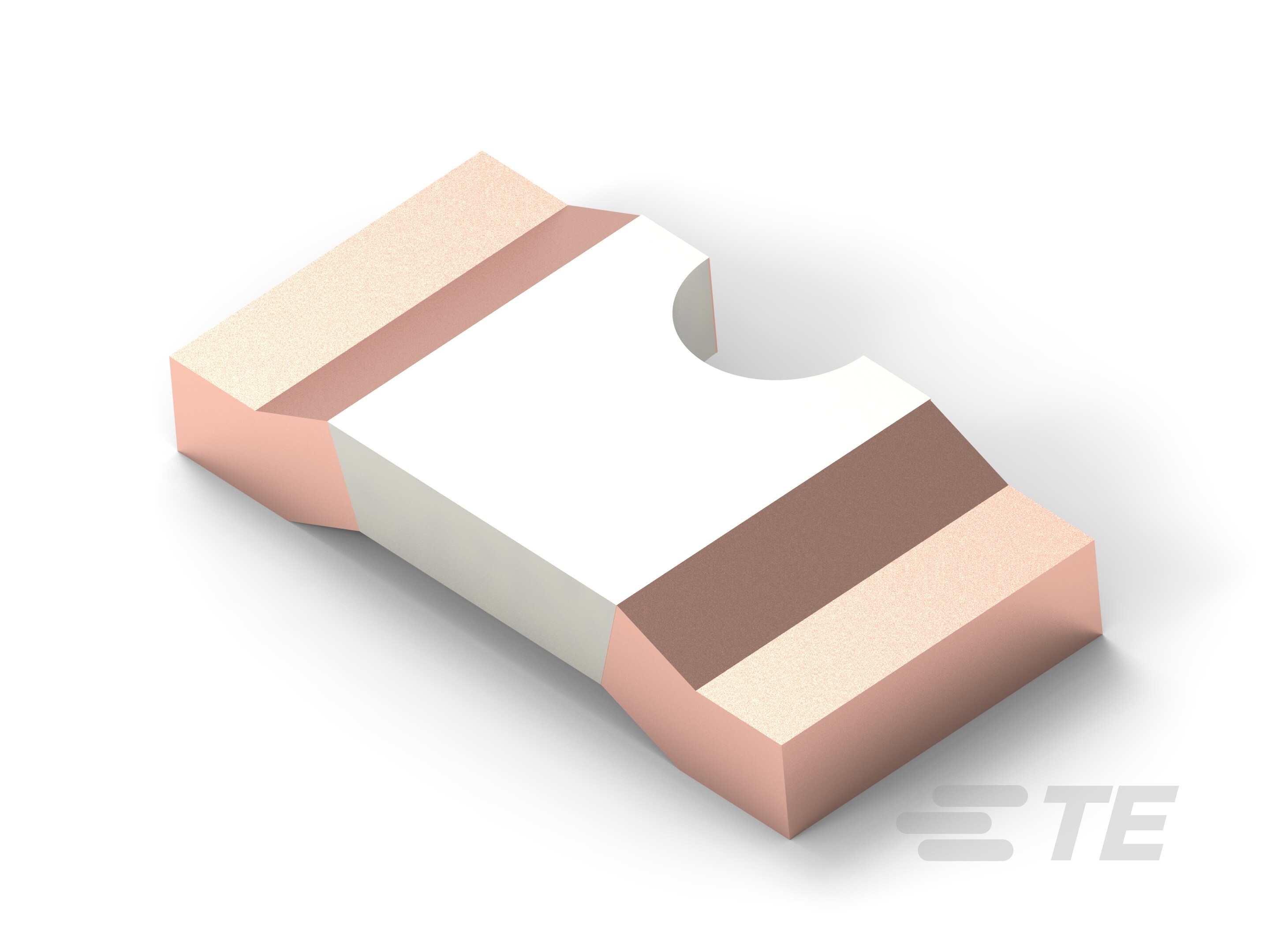

Surface Mount Low Ohmic Resistor, Metal Strip, 1575, 4 W, .002 ohm, 1 %, ±100 ppm/°C, Solder, 2 Termination, Height .93 mm [.037 in], CGS TLRS
TLRS157540ER002FTDG
Surface Mount Low Ohmic Resistor, Metal Strip, 1575, 4 W, .002 ohm, 1 %, ±100 ppm/°C, Solder, 2 Termination, Height .93 mm [.037 in], CGS TLRS
-
- CGS
- CGS TLRS
- TE Internal #: 2176077-3
- TE Internal Description: TLRS1575 4.0W R002 1% 100PPM 2KRL
- All Metal Chip Resistor: Current Sense (49)
-
Resistor Type : Low Ohmic Resistor
-
Element Type : Metal Strip
-
Package Size Code : 1575
-
Power Rating (W): 4
-
Resistance Value (Ω): .002
