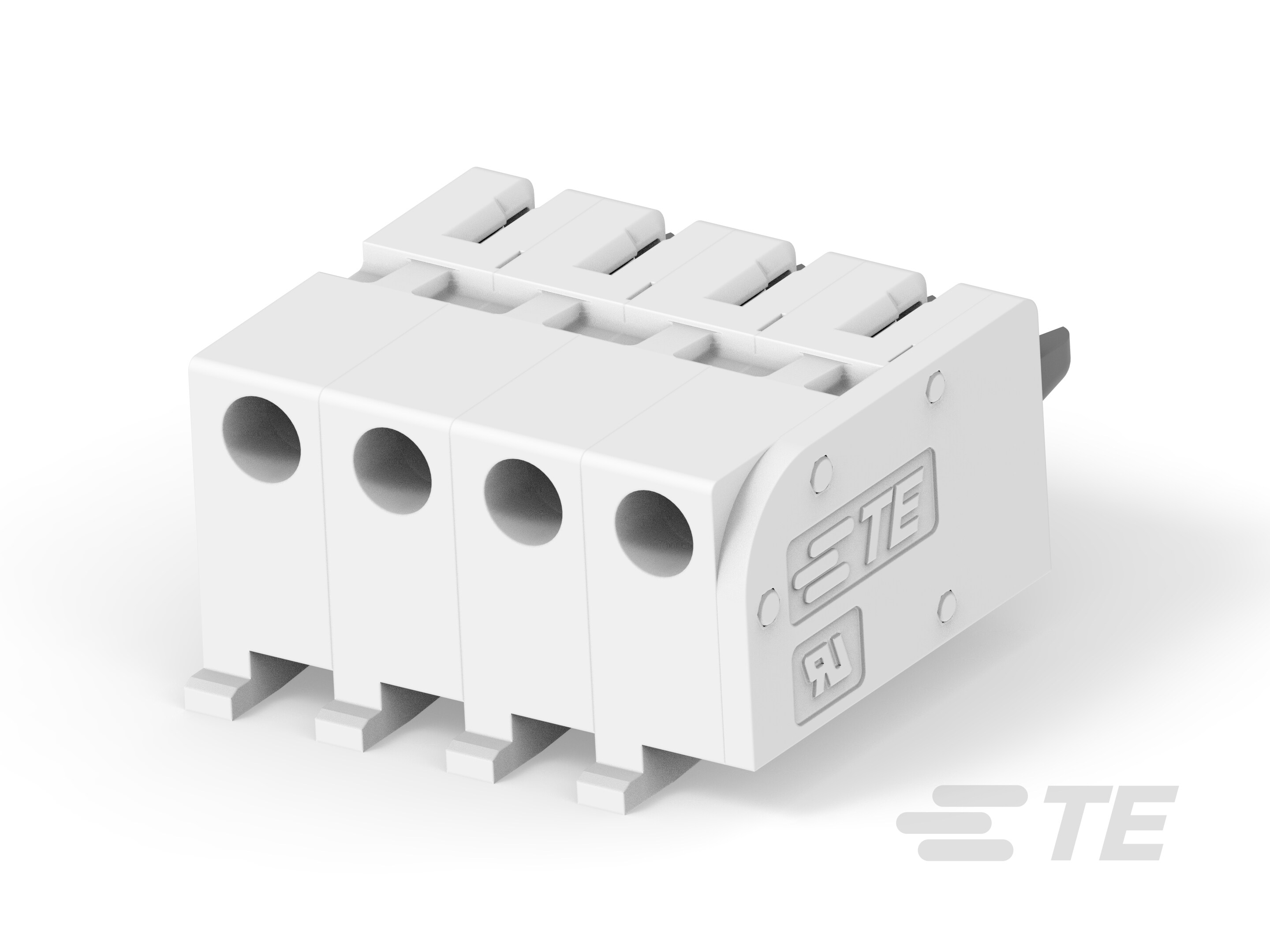

Receptacle, Wire-to-Component, 4 Position, 5 mm Centerline, 1 Row, BUCHANAN WireMate Two-Piece Poke-In Series, PCB Terminal Blocks
2319461-4
Receptacle, Wire-to-Component, 4 Position, 5 mm Centerline, 1 Row, BUCHANAN WireMate Two-Piece Poke-In Series, PCB Terminal Blocks
-
- Buchanan WireMate
- BUCHANAN WireMate Two-Piece Poke-In Series
- TE Internal #: 2319461-4
- TE Internal Description: TWO-PIECE POKE-IN, 5MM CONN, 4 POS
- All Poke-In Connectors, Two-Piece (14)
-
EU RoHS Compliance : Compliant
-
EU ELV Compliance : Compliant
-
Terminal Block Connector Type : Receptacle
-
Connector System : Wire-to-Component
-
Number of Positions : 4
