2347091-1

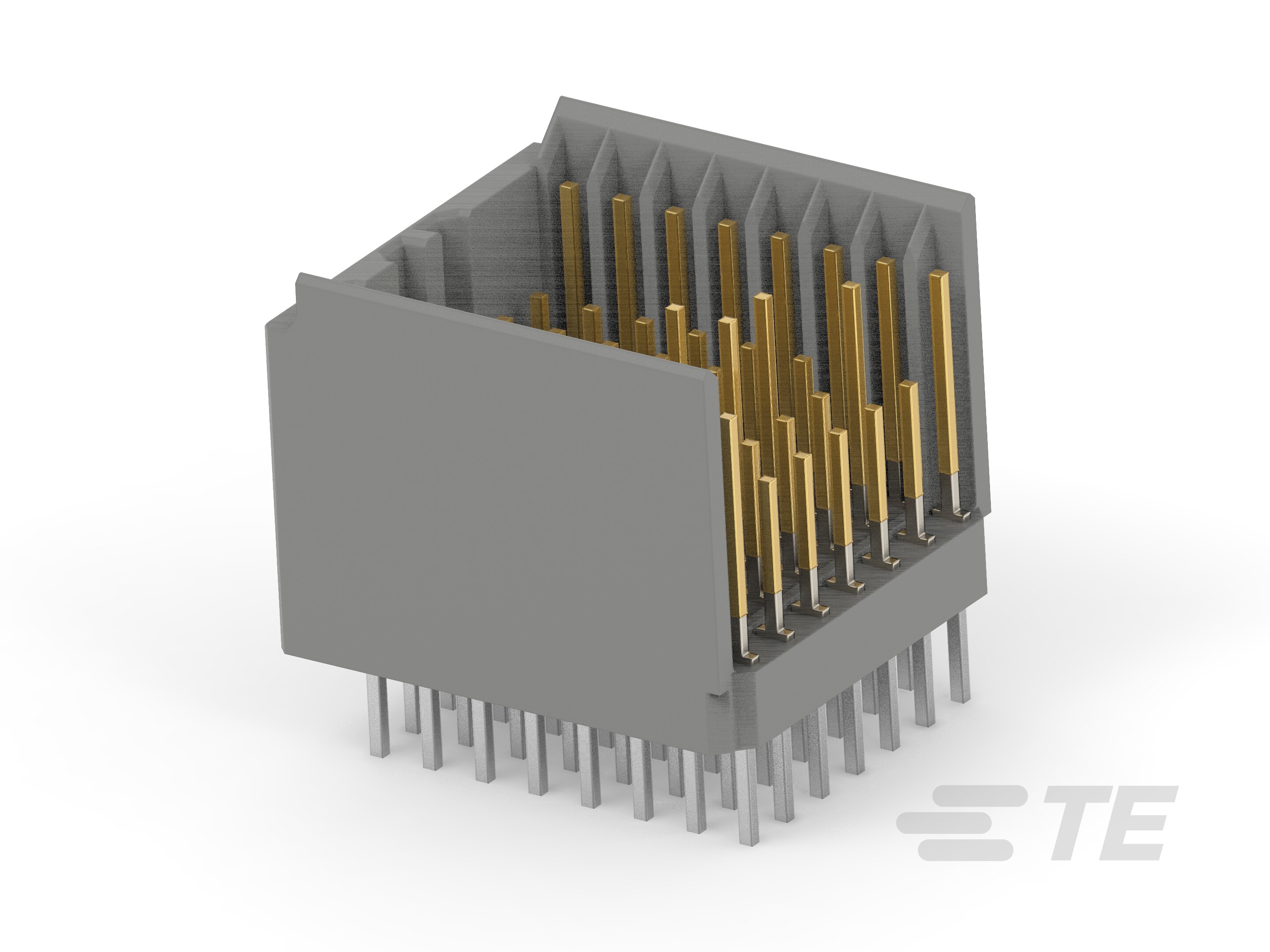

Hard Metric Backplane PCB Mount Header, 1 Gb/s, 8 Column, 7 Row, 56 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Power & Signal
2347091-1
Hard Metric Backplane PCB Mount Header, 1 Gb/s, 8 Column, 7 Row, 56 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Power & Signal
- TE Internal #: 2347091-1
- TE Internal Description: 2MM HM MALE CONNECTOR, COL 8, M1
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Assembly Type : PCB Mount Header
-
Data Rate (Gb/s): 1
-
Number of Columns : 8
-
Number of Rows : 7
-
Number of Positions : 56
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, 8 COLUMN, TYPE 1 ENG_CD_2347091_1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2347091-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2347091-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2347091-1_A.3d_igs.zip English
- ENG_CVM_CVM_2347091-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-19029_E.pdf English
- Product Specification ENG_SS_108-60123_A.pdf English
- Qualification Test Report ENG_SS_501-60081_A.pdf English
