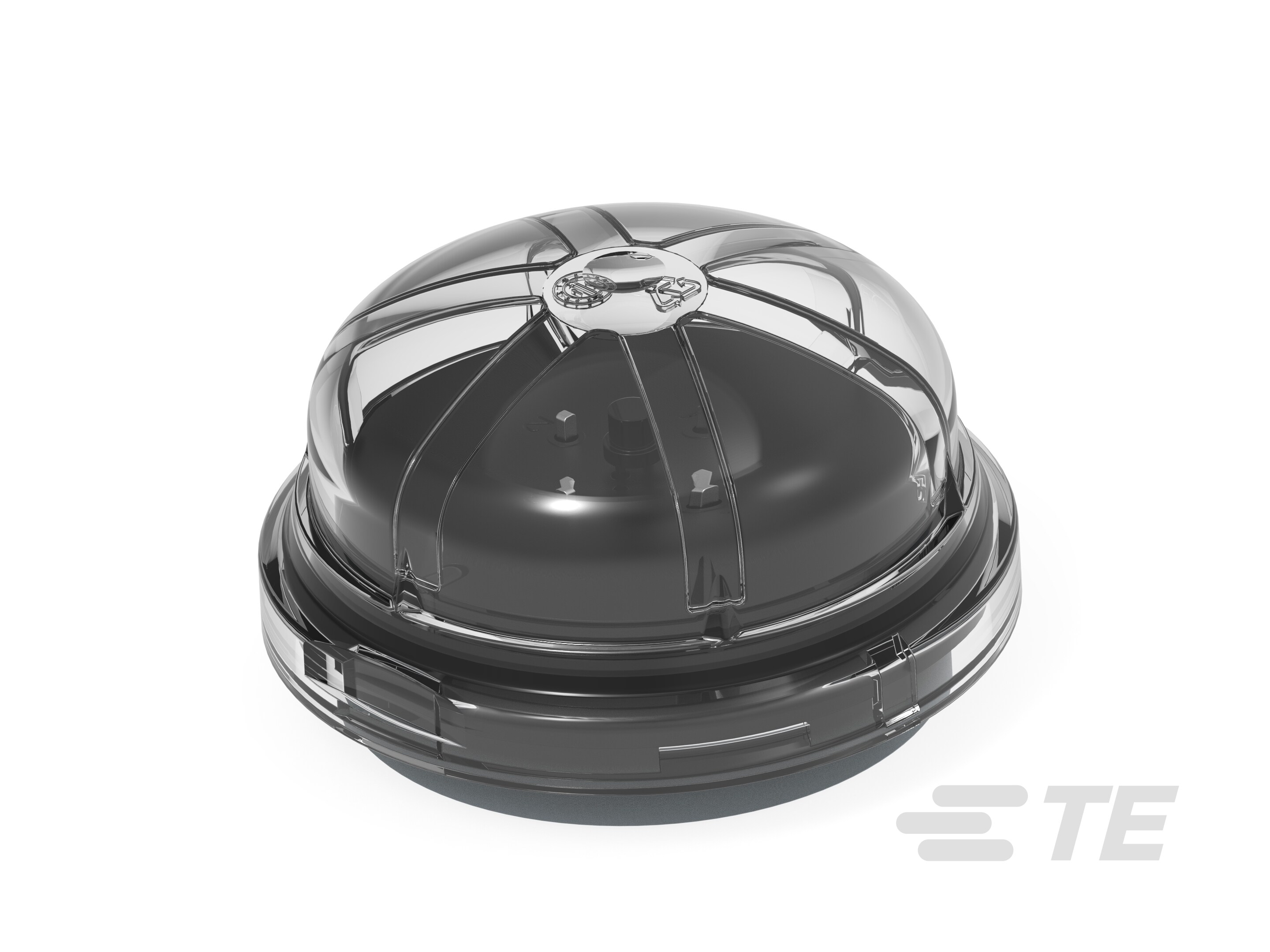

2410739-1
Enables Zhaga Compatibility, Zhaga, 4 Position, Sealable, -40 – 80 °C [-40 – 176 °F], ALR 11000 Series, Street Lighting Power Management
2410739-1
Enables Zhaga Compatibility, Zhaga, 4 Position, Sealable, -40 – 80 °C [-40 – 176 °F], ALR 11000 Series, Street Lighting Power Management
-
- ALR
- ALR 11000 Series
- TE Internal #: 2410739-1
- TE Internal Description: ALR-11000, DALI LUMAWISE S Photocell, A
-
Operating Temperature Range : -40 – 80 °C [ -40 – 176 °F ]
-
IP Rating : IP66
-
Output Voltage (Max) (V): 24
-
Lighting Connector Features Included : Enables Zhaga Compatibility
-
Compatible With Approved Standards Products : UL 773
Documents
Product Drawings
- ALR-11000 STREETLIGHT DIGITAL PHOTOCELL ENG_CD_2410739_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2410739-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2410739-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2410739-1_A.3d_stp.zip English
- ENG_CVM_CVM_2410739-1_A.3d_igs.zip English
Datasheets & Catalog Pages
- lumawise-alr_2312 ENG_DS_lumawise-alr_2312_1.pdf English
- lumawise-alr_2312 POR_DS_lumawise-alr_2312_1.pdf Portuguese
- lumawise-alr_2312 GER_DS_lumawise-alr_2312_1.pdf German
- lumawise-alr_2312 CHI_DS_lumawise-alr_2312_1.pdf
- lumawise-alr_2312 SPA_DS_lumawise-alr_2312_1.pdf Spanish
Product Specifications
- Product Specification ENG_SS_108-160585_A.pdf English
- Test Specification ENG_SS_109-160160_6.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E66375_20230113_C1_3.pdf English
