NEMA Base assembly designed to reduce time to market

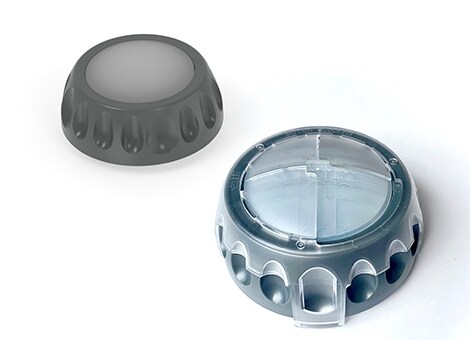

Our Endurance N Enhanced Base is a NEMA base assembly with integrated AC/DC power supply, surge protection, relay with switching control, and energy metering interface. Compatible with ANSI C136.41 dimming receptacles, the enhanced base provides an accelerated starting point for customer-designed electronic solutions, giving them a head start on development and reducing time to market.
The streetlight control node is a platform with almost unlimited opportunities to create value through innovation, but nearly every solution must address a few common needs: mechanical mounting and sealing, surge protection, load switching, AC/DC power conversion, and an energy metering interface. With the LUMAWISE Endurance N Enhanced Base, we implement these core features in a robust, flexible, and easy to interface platform, allowing engineers and designers to focus on the business of innovation and implementing their differentiating product features without worrying where the DC power supply will come from or how to interface with the switching relay. Even for engineers experienced in the design and implementation of multi-output, isolated AC/DC power supplies, there are many pitfalls and opportunities for costly design loops throughout the development and qualification process. This is especially true when the product must consider the creepage, clearance, isolation, and emissions requirements of multiple certification and standards bodies. By offering a NEMA base with these power supply functions already implemented, the enhanced base de-risks project schedules and cost of design changes, reduces opportunity cost by enabling more value-adding innovation using the same time & designers, and streamlines supply chains, all to drive benefit of the bottom line.
Technical Features
Street lighting enhanced base
- Standard NEMA/ANSI street lighting interface.
- Universal AC input range.
- Isolated 24V mA DC output for ballast control communications.
- Isolated 5V and 3.3V DC outputs for customer circuits.
- Low voltage signal interface to light fixture.
- Line voltage and current sense interface for energy metering.
- Integrated surge protection.
- Long life relay with zero-cross switching for AC load control.
- Designed for compliance with UL 773, ANSI C136.41 and FCC Title 47 part 15.
Technical Articles
-
Making Cities Smarter: Hybrid Solutions for LED Street Lighting Systems
Since much of the world is using luminaires designed to ANSI C136 Standards, backward compatibility is important when updating light fixtures. However, Zhaga/D4i dual-node architecture is destined to become the backbone of smart city infrastructure. Our LUMAWISE Endurance products may be the key to implementing a hybrid solution.
-
Photocontrols for Automating Outdoor Lighting Systems
Today's outdoor lighting systems are increasingly designed for connected solutions with smart cities in mind. These systems typically involve integrating wireless communication with LED lights and dimming controls. To define these advances, engineers have had to update standards around a grand vision for the future state of automated lighting. Informed by our 50 years experience designing robust controls for lighting systems in communities around the world, we have developed the LUMAWISE ALR photocontrols to automate luminaire operation for a wide variety of on/off applications.
Applications
- Street and roadway lighting control.
- Commercial, residential and campus outdoor lighting management.
- Smart cities network lighting controls.
- Smart grid to smart cities bridging.
Videos
-
Check out our YouTube videos (external link)
Learn more about our LUMAWISE Endurance products and hear directly from our product experts on how these products can enlighten your next lighting designs.
3
ANSI
UL
Design Details
MATERIALS: | |
---|---|
Housing | PBT |
Dimming contacts | Copper alloy gold plated |
Power contacts | Copper alloy tin plated |
Gasket | Vinyl-nitrile foam |
O-Ring | Silicone rubber |
RoHS | compliant |
ENVIRONMENTAL | |||||
---|---|---|---|---|---|
Operating temperature | -40°C to +85°C | ||||
Relative humidity | Operating: 15% to 96% - Non-condensing environment | ||||
Altitude |
|
Operating | -15M to +2,000M |
Non-Operating | -15M to +14,000M |
SPECIFICATIONS | |
---|---|
Application | 114-133085 |
Product | 108-133085 |
