3-188835-0

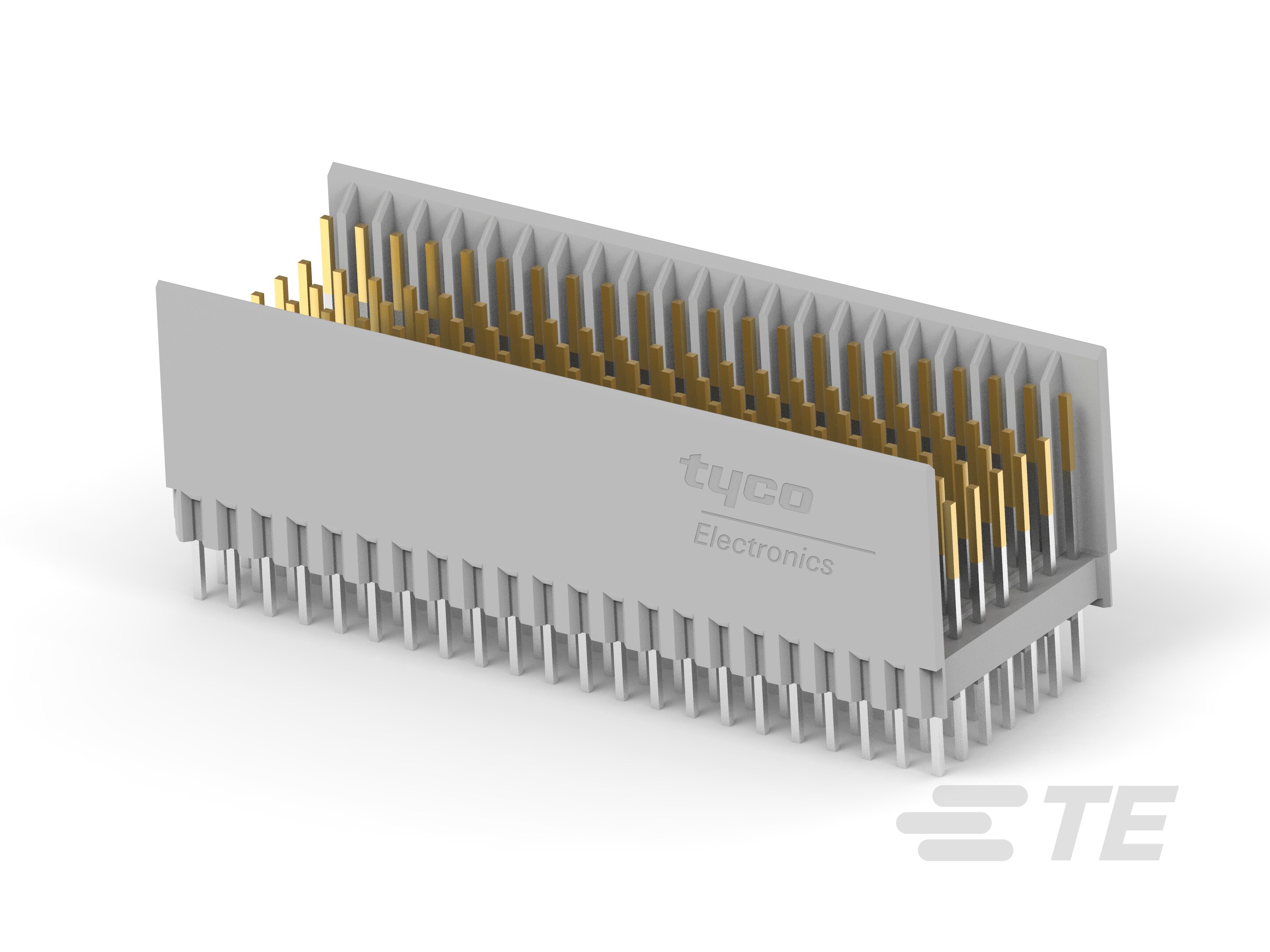

Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 22 Column, 7 Row, 154 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Z-PACK 2mm HM
3-188835-0
Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 22 Column, 7 Row, 154 Position, 2 mm Centerline, Vertical, Gray, Tube, Gold, Z-PACK 2mm HM
-
- Z-PACK
- Z-PACK 2mm HM
- TE Internal #: 3-188835-0
- TE Internal Description: Z-PACK/B M-HDR 154P.
- All Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm (124)
-
PCB Connector Assembly Type : PCB Mount Header
-
Data Rate (Gb/s): ≤1
-
Number of Columns : 22
-
Number of Rows : 7
-
Number of Positions : 154
Documents
Product Drawings
- MALE ASSEMBLY, Z-PACK 2mm HM, TYPE B ENG_CD_188835_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-188835-0_G.pdf 3D
- Customer View Model ENG_CVM_CVM_3-188835-0_G.2d_dxf.zip English
- ENG_CVM_CVM_3-188835-0_G.3d_igs.zip English
- ENG_CVM_CVM_3-188835-0_G.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-19029_E.pdf English
- Product Specification ENG_SS_108-19082_C.pdf English
