Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

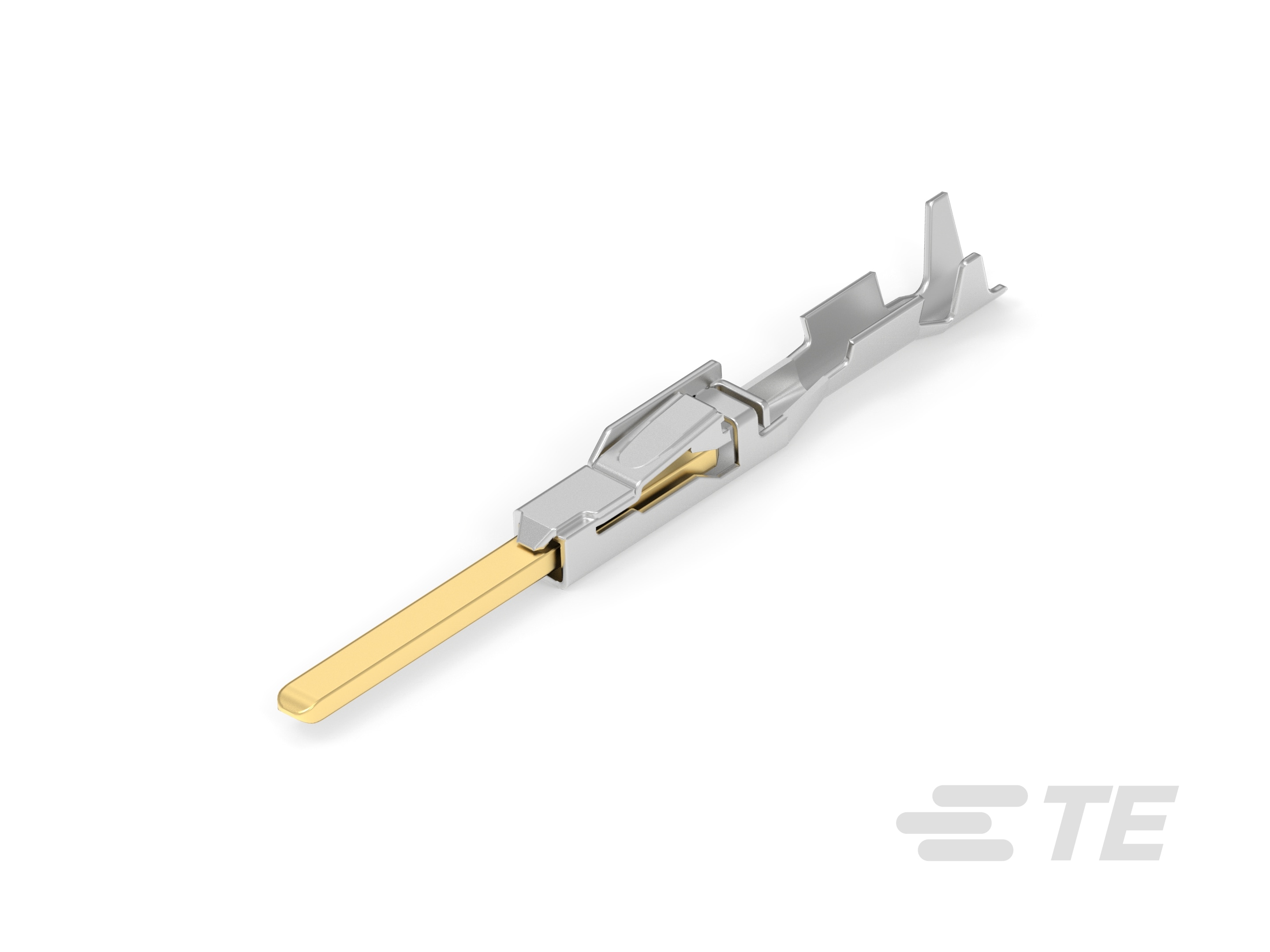

• Contact Fabrication : Stamped & Formed

• Contact Size : 1.15mm

• Crimp Type : F-Crimp

• Typical Current Rating (A): 10

• Terminal Type : Tab

• Mating Tab Width : 1.2 mm [ .047 in ]

• Mating Tab Thickness : .6 mm [ .024 in ]

• Interface Plating : Gold (Au)

• Compatible Insulation Diameter Range : 1.1 – 1.75 mm [ .043 – .069 in ]

• Wire Size (AWG): 23 – 22

• Wire Size (mm²): .25 – .35

• Wire Size Search (mm²): .3, .25

• Wire Size Search (AWG): 22, 23

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire

• Insulation Option : Uninsulated

• Operating Temperature (Max) (°C): 130, 80, 125, 105, 90, 100, 85, 150, 145, 140, 110, 120

• Operating Temperature (Max) (°F): 293, 248, 221, 230, 176, 194, 302, 185, 284, 266, 212, 257

• Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

• Packaging Quantity : 9000

• Packaging Method : Reel

• Conforms to Automation Guideline : Yes, KOMAX Automatic Component Insertion per Version 5.0 (March 2018)

• Compatible With Wire Base Material : Copper

• Sealable : No

• Primary Locking Feature : Locking Lance
