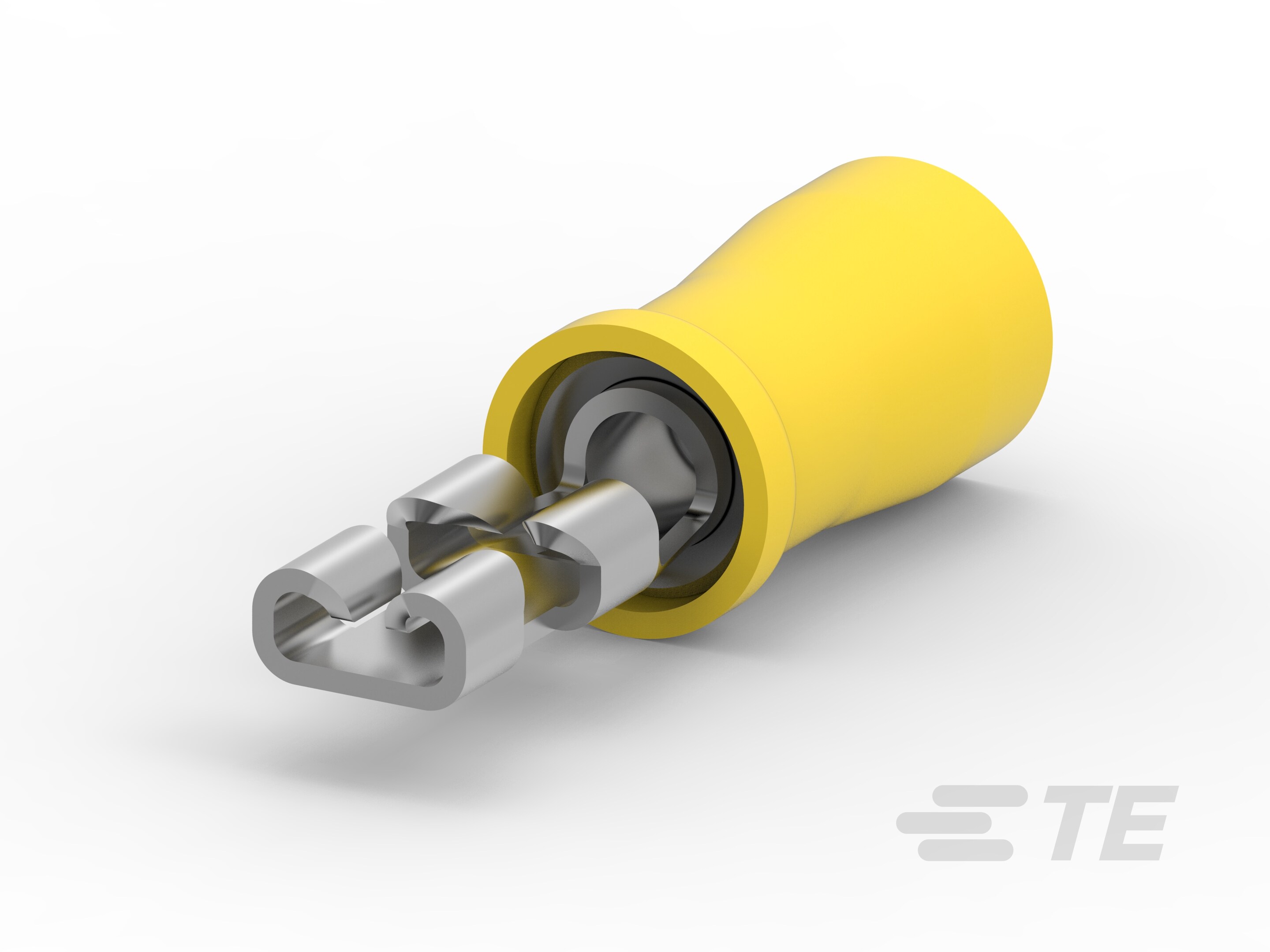

641324-1
Receptacle, 26 – 24 AWG Wire Size, .12 – .20 mm² Wire Size, 238 – 475 CMA Wire Size, Mating Tab Width 2.79 mm [.11 in], PIDG, Quick Disconnects
641324-1
Receptacle, 26 – 24 AWG Wire Size, .12 – .20 mm² Wire Size, 238 – 475 CMA Wire Size, Mating Tab Width 2.79 mm [.11 in], PIDG, Quick Disconnects
-
- PIDG
- TE Internal #: 641324-1
- TE Internal Description: RECEPT PIDG FASTON 26-24 110
- All PIDG LOW INSERTION FORCE FASTON RECPT (6)
-
Packaging Method : Loose Piece
-
Operating Temperature Range : 105 °C [ 221 °F ]
-
Wire Size (AWG): 26 – 24
-
Mating Tab Thickness : .51 mm [ .02 in ]
-
Wire Insulation Support : With
Documents
Product Drawings
- RECEPTACLE, 110 SERIES, FASTON , PIDG , AWG 26-24 WIRE SIZE, FASTON, PIDG, FASTON, PIDG, English
- RECEPTACLE, 110 SERIES, FASTON , PIDG , AWG 26-24 WIRE SIZE, FASTON, PIDG, FASTON, PIDG, ENG_CD_641324_G.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_641324-1_E.pdf 3D
- Customer View Model ENG_CVM_CVM_641324-1_E.2d_dxf.zip English
- ENG_CVM_CVM_641324-1_E.3d_igs.zip English
- ENG_CVM_CVM_641324-1_E.3d_stp.zip English
Datasheets & Catalog Pages
- PIDG_FASTON ENG_CS_82004_PIDG_FASTON_0411.pdf English
- ENG_CS_82004_Ultra-Fast_and_Ultra_Fast_Plus_0311.pdf English
- PIDG TERMINALS & SPLICES Quick Reference Guide ENG_DS_1773464-1_QRG_PIDG_1902.pdf English
Product Specifications
- Application Specification ENG_SS_114-1002_E.pdf English
