85098-1

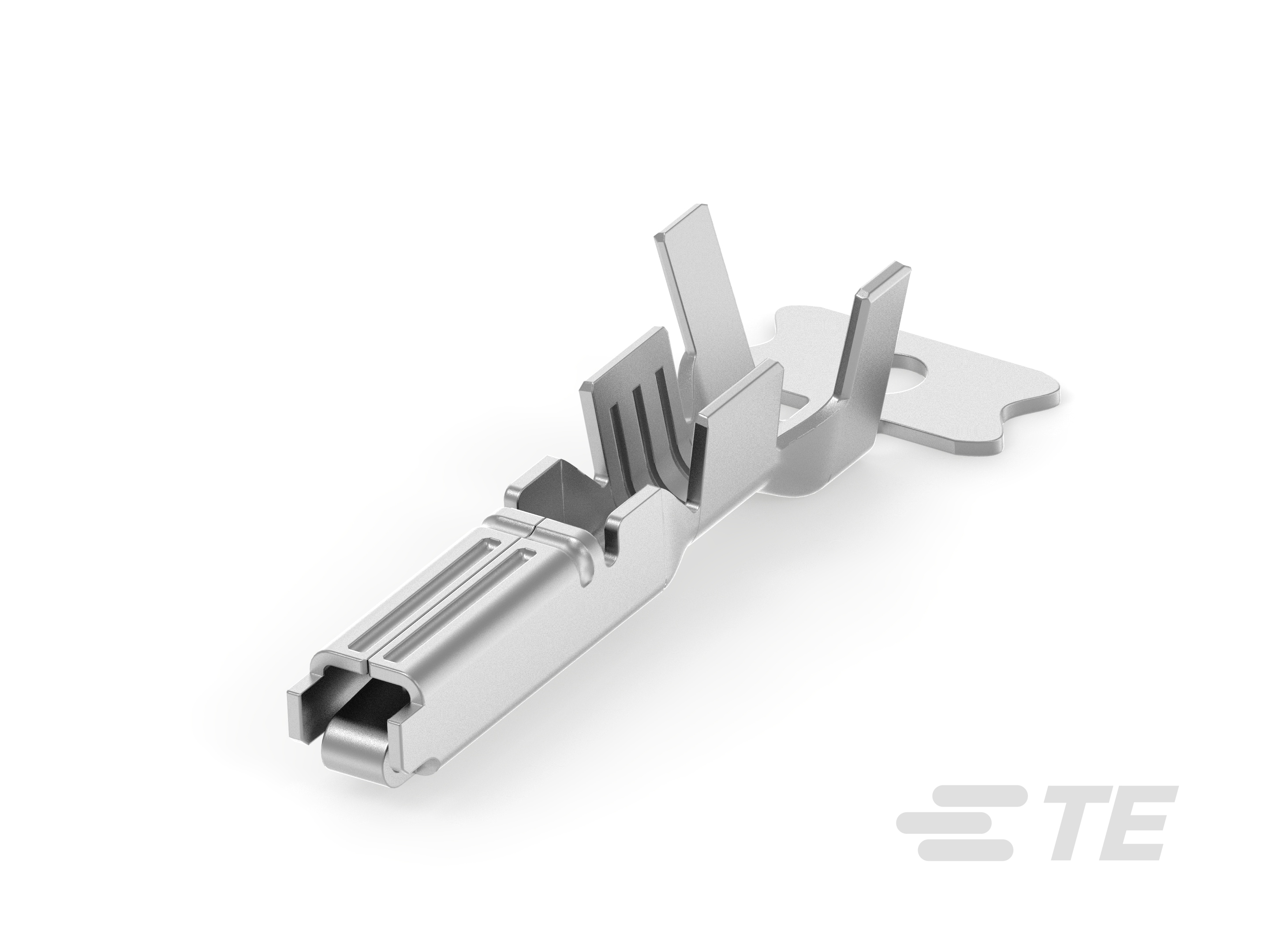

Receptacle, Mating Tab Width 1.8 mm [.071 in], Tab Thickness .64 mm [.025 in], 14 AWG Wire Size, Multilock Connector System, Automotive Terminals
85098-1
Receptacle, Mating Tab Width 1.8 mm [.071 in], Tab Thickness .64 mm [.025 in], 14 AWG Wire Size, Multilock Connector System, Automotive Terminals
-
- AMP
- Multilock Connector System
- TE Internal #: 85098-1
- TE Internal Description: 070 MULTILOCK REC TML(2mm)
- All MULTILOCK, RECEPTACLE AND TAB (81)
-
Packaging Method : Reel
-
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) (°C): 85, 90, 80, 105, 100
-
Operating Temperature (Max) (°F): 185, 221, 212, 176, 194
-
Wire Size (AWG): 14
