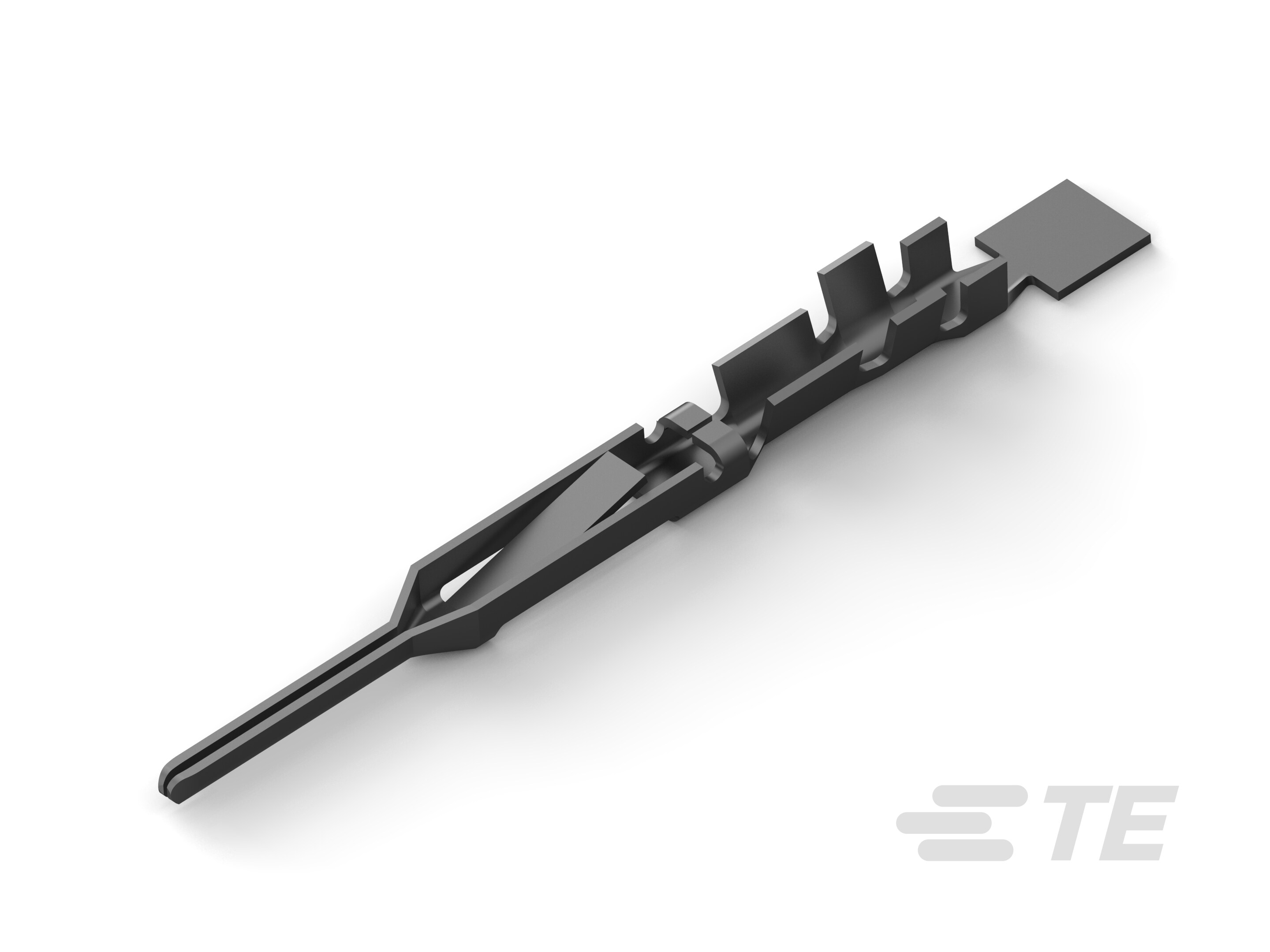

86561-9
Pin Contact, Tin-Lead, Discrete Wire, 26 – 22 AWG Wire Size, .12 – .4 mm² Wire Size, Insulation Displacement (IDC), Phosphor Bronze, Signal
86561-9
Pin Contact, Tin-Lead, Discrete Wire, 26 – 22 AWG Wire Size, .12 – .4 mm² Wire Size, Insulation Displacement (IDC), Phosphor Bronze, Signal
- TE Internal #: 86561-9
- TE Internal Description: FFC PIN WIRE BBL SN
- All 2.54mm FFC Connectors Pin Contacts (34)
-
Packaging Method : Loose Piece
-
Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]
-
Wire Size (AWG): 26 – 22
-
Product Terminates To : Wire & Cable
-
Contact Base Material : Phosphor Bronze
Documents
Product Drawings
- CONTACT, PIN, .025 SQ ROUND WIRE, .100 CENTERLINE, FFC ENG_CD_86557_AA1.pdf English
- CONTACT, PIN, .025 SQ ROUND WIRE, .100 CENTERLINE, FFC ENG_CD_86561_E1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_86561-9_D.pdf 3D
- Customer View Model ENG_CVM_CVM_86561-9_D.2d_dxf.zip English
- ENG_CVM_CVM_86561-9_D.3d_igs.zip English
- ENG_CVM_CVM_86561-9_D.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-16003_F.pdf English
- ENG_SS_114-16015_P.pdf English
- Product Specification ENG_SS_108-5390_F1.pdf English
- ENG_SS_108-9024_L.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-7384_B.pdf English
- ENG_SS_408-7645_O.pdf English
- S_408-7645_O.tif English
