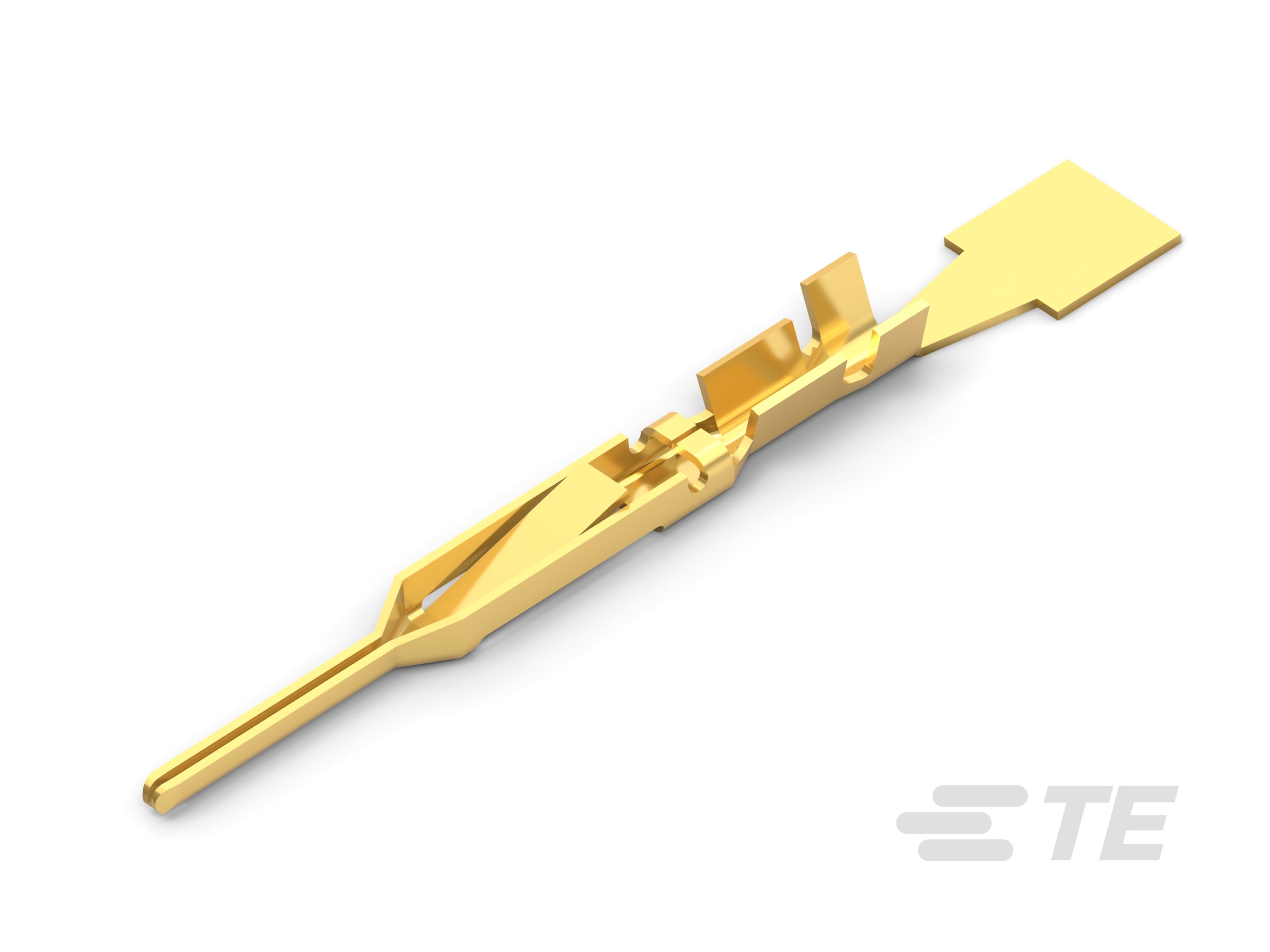

86656-2
Pin Contact, Gold / Gold Flash over Palladium Nickel, Discrete Wire, 24 – 22 AWG Wire Size, .2 – .4 mm² Wire Size, Insulation Displacement (IDC)
86656-2
Pin Contact, Gold / Gold Flash over Palladium Nickel, Discrete Wire, 24 – 22 AWG Wire Size, .2 – .4 mm² Wire Size, Insulation Displacement (IDC)
- TE Internal #: 86656-2
- TE Internal Description: FFC PIN ROUND WIRE PLTD AU15
- All 2.54mm FFC Connectors Pin Contacts (34)
-
Contact Type : Pin
-
Contact Mating Area Plating Material : Gold Flash over Palladium Nickel, Gold
-
Compatible With Wire & Cable Type : Discrete Wire
-
Wire Size (AWG): 24 – 22
-
Wire Size (mm²): .2 – .4
Documents
Product Drawings
- CONTACT, PIN, .025 SQ, ROUND WIRE, .100 CENTERLINE, FFC English
- CONTACT, PIN, .025 SQ, ROUND WIRE, .100 CENTERLINE, FFC ENG_CD_86656_L.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_86656-2_AF.pdf 3D
- Customer View Model ENG_CVM_CVM_86656-2_AF.2d_dxf.zip English
- ENG_CVM_CVM_86656-2_AF.3d_igs.zip English
- ENG_CVM_CVM_86656-2_AF.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-16003_F.pdf English
- ENG_SS_114-16015_P.pdf English
- Product Specification ENG_SS_108-9024_L.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-7384_B.pdf English
- ENG_SS_408-7645_O.pdf English
- S_408-7645_O.tif English
