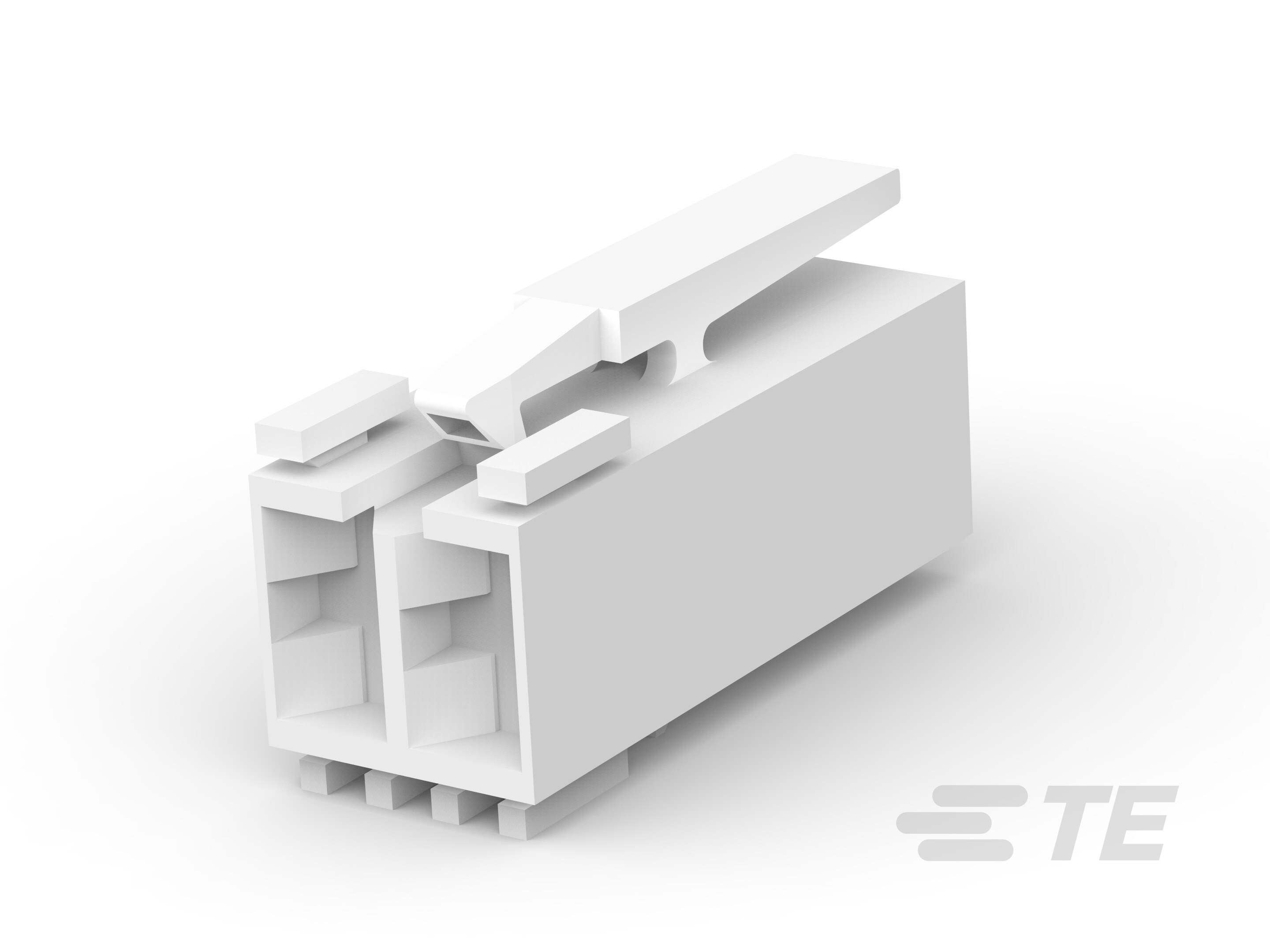

Housing, Receptacle, Wire-to-Board, 2 Position, 5 mm [.196 in] Centerline, Crimp, 1 Row, Natural, Mating Retention, RAST 5 IDC Connectors
969484-1
Housing, Receptacle, Wire-to-Board, 2 Position, 5 mm [.196 in] Centerline, Crimp, 1 Row, Natural, Mating Retention, RAST 5 IDC Connectors
-
- RAST
- RAST 5 IDC Connectors
- TE Internal #: 969484-1
- TE Internal Description: STD TIM MK2 GEH 2P
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Connector System : Wire-to-Board
-
Number of Positions : 2
-
Centerline (Pitch) : 5 mm [ .196 in ]
