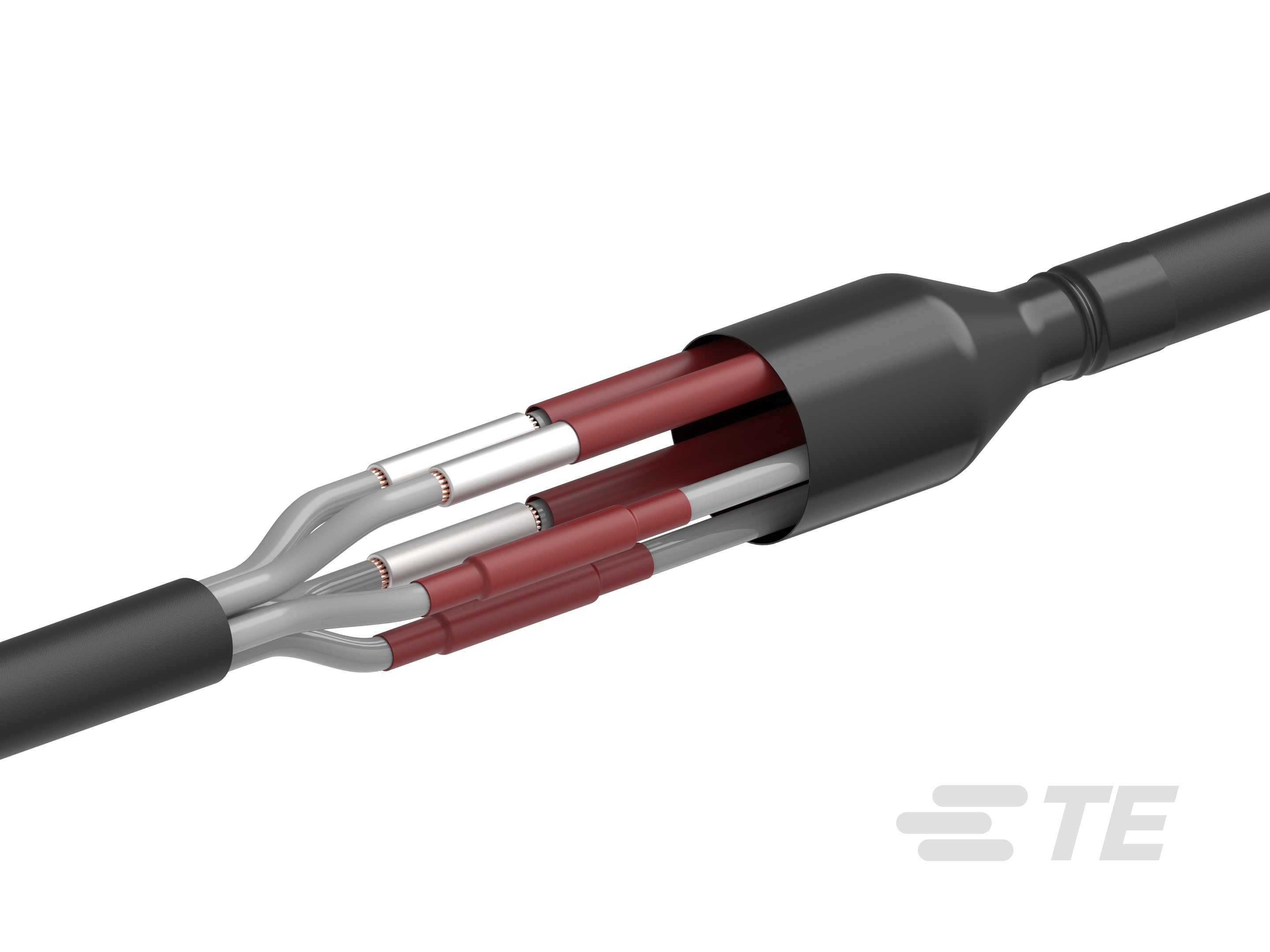

Low Voltage Heat Shrink Joint, Up to 3kV
Product Features
-
Joints & Splice Product Type : Inline Joint
-
Voltage Class (kV): ≤ 3
-
Number of Cores : 4 – 5
-
Insulation Material : XLPE/EPR
-
Compatible Insulation Diameter Range (mm): 30 – 63, 12 – 28, 20 – 35
-
Compatible Insulation Diameter Range (in): 1.181 – 2.48, .787 – 1.378, .472 – 1.102
Provide excellent electrical performance and long service life with heat shrink medium wall insulation tubing MWJS.
Our Raychem APKJ heat shrink joints are designed for unscreened insulating solar cables, from single core to 5 cores, up to 3 kV. With three sizes covering a wide range of cable insulation outer diameter (OD) from 12 mm to 63 mm, these highly shrinkable tubings provide excellent sealing performance. The use of high-sealing performance mastic S1061 ensures reliable protection for solar cable connections.
Easily install our Raychem APKJ joints in the field with a gas torch or hot air. APKJ features high-performance Heat Shrink Medium Wall Insulation Tubing (MWJS) with a continuous temperature rating of up to 105°C (221°F), ensuring outstanding mechanical and electrical performance.
Raychem APKJ joints are tested in accordance with JB/T 7830-2006, ensuring decades of operating life
Key Features
- Simplified product type selection
- Excellent in field electrical and mechanical performance
- Continuous operating temperature rating up to 105°C (221°F)
- High shrink ratio, covering a wide application range from cable insulation outer diameter (OD) 12 mm to 63 mm
Frequently Asked Questions
Question: We provide 3 sizes to cover the full range of regular cable diameters.
Answer: Our Raychem APKJ heat shrink joints can be used for solar cable outer diameter from 12 mm to 63 mm.
Question: How many Rachem APKJ heat shrink joint sizes are available?
Answer: We provide 3 sizes to cover the full range of regular cable diameters.
Question: How many cable cores can Raychem APKJ heat shrink joints 1.8/3kV be used for?
Answer: Our Raychem APKJ heat shrink joints 1.8/3kV are suitable for 1 to 5 cores of regular cables.
Question: Are special tools required to install Raychem APKJ heat shrink joints?
Answer: No, they can be easily installed using hot air or a torch.
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Adhesive Coating Without
-
Installation Technology Heat Shrink
-
Material System Crosslinked Polyolefin
-
Shelf Life Unlimited
-
Cable Sealing Method Mastic
-
Termination Length (mm) 500
-
Joints & Splice Product Type Inline Joint
-
Cable Shield Style AL-Tape
Configuration Features
-
Number of Branch Wires (Max) 5
-
Number of Cores 4 – 5
-
Number of Main Wires (Max) 5
Electrical Characteristics
-
Voltage Class (kV) ≤ 3
Body Features
-
Primary Product Color Red
-
Insulation Material XLPE/EPR
Housing Features
-
Armoring Material Steel Tape
Dimensions
-
Compatible Insulation Diameter Range (mm) 30 – 63, 12 – 28, 20 – 35
-
Compatible Insulation Diameter Range (in) 1.181 – 2.48, .787 – 1.378, .472 – 1.102
Industry Standards
-
Compatible With Approved Standards Products JB/T 7830-2006
Packaging Features
-
Packaging Method Cardbox
-
Packaging Quantity 1
Other
-
Product Use Cable Jointing Accessory
Reference Number
-
TE Internal Number CAT-APKJ
Datasheets & Catalog Pages
- RAYCHEM LOW VOLTAGE HEAT SHRINK JOINTS APKJ English
- RAYCHEM LOW VOLTAGE HEAT SHRINK JOINTS APKJ Chinese (Simplified)
