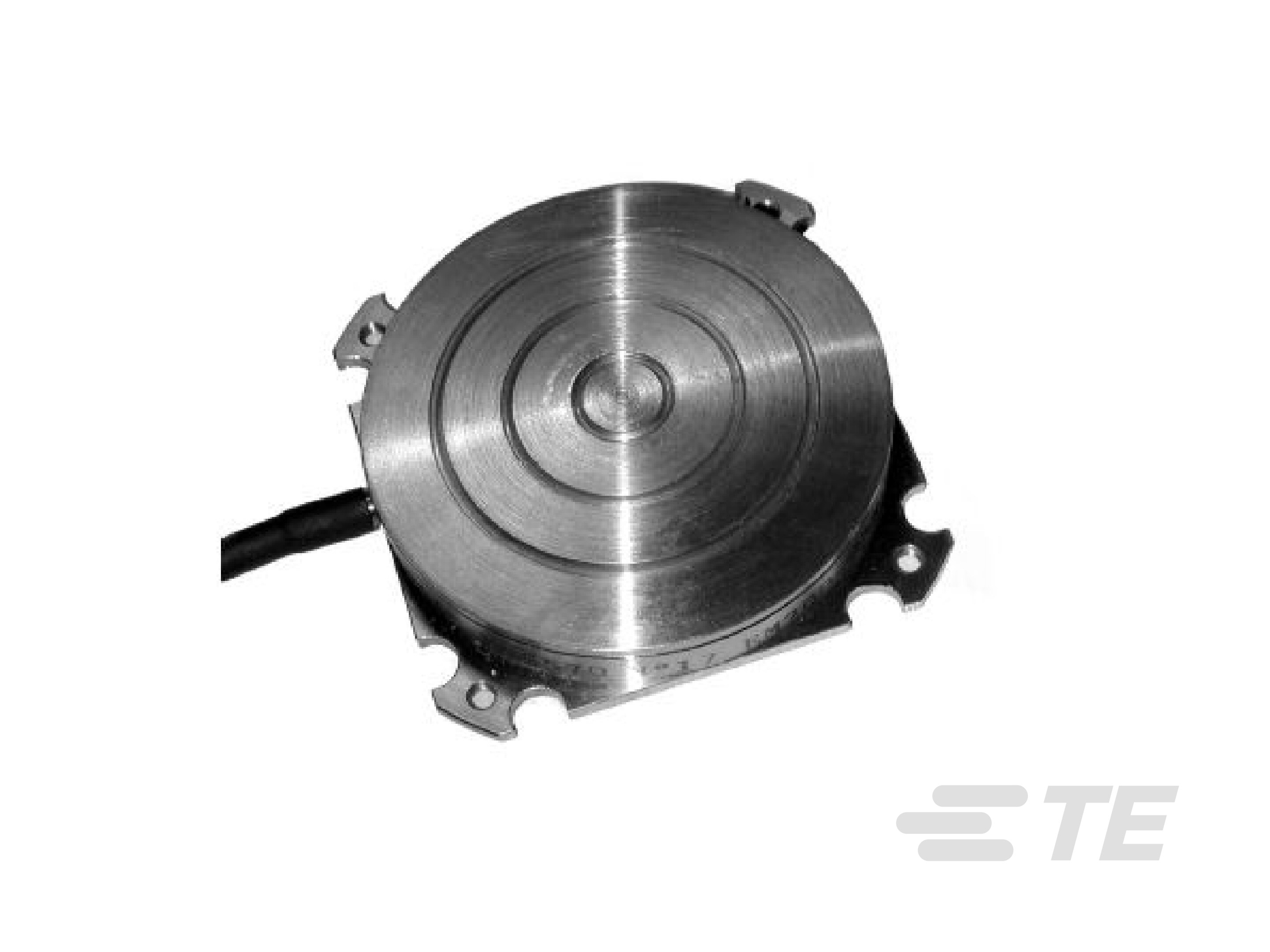

Load Cell - Extra Flat

Load Cell - Extra Flat-CAT-FLS0035
  • MEAS
|
  • MEAS FN2570
The FN2570 series extra flat load cell has been developed for pedal force testing. It attaches easily on all types of pedals and test rigs for endurance and fatigue tests, especially where size is an important factor.
More Less

Product Features

  • Force Load Cell Sensor Type : Automotive Load Cells

  • Force Direction : Compression

  • Full Scale Range (Newton): 200 – 2500

  • Full Scale Range (lbf): 40 – 500

  • Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]

Available from

LADD Inc

Build and price the product now

Overview
The FN2570 series extra flat load cell attaches easily on all types of pedals and test rigs for endurance and fatigue tests, especially where size is an important factor.

The FN2570 series extra flat load cell's force is measured with high precision independent of the point of application of force.  A strain relief spring strengthens the cable output. A similar pedal load cells with a better accuracy 1%FS and integrated amplifier option exists as model FN2114. With many years of experience as a designer and manufacturer of sensors, we often work with customers to design or customize sensors for specific uses and testing environments. On request, instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

Benefits

  • Range 200 to 2500 N (40 to 500 lbf)
  • Stainless Steel material
  • Cable Output
  • Very easy fixation
  • Compression only
  • Accuracy regardless of force application point
  • Extra flat and rugged design
orange bar

Applications

  • On-board vehicle equipment
  • Test bench equipment
  • Laboratory and research
orange bar

Other Auto Safety Sensors



pedal load cell

FN2114 Series

PEDAL LOAD CELL

The FN2114 series pedal load cell has been developed for pedal load testing. Its size allows the sensor to be easily installed on the pedals of any vehicle or a fatigue/endurance test bench.

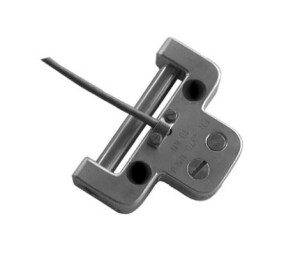

FN2317 handbrake load cell

FN2317 Series

HAND BRAKE LOAD CELL

The FN2317 handbrake load cell is designed with the purpose of allowing quick and easy installation when measuring forces applied to the handle of the hand brake in automobiles.
FN4070 seat buckle sensor

FN4070/FN4080 Series

SEAT BUCKLE SENSOR

The FN4070 load cell measures the effort generated on the anchor point of seat belts during crash tests. For lower operating ranges 250N refer to model FN4080.
EL20 seat belt load cell

EL20 Series

Low Mass Seat Belt Load Cell

The EL20-S458 seat belt load cell sensor provides a super low mass titanium structure to minimize F=MA errors during the crash event.
FN4055 seat belt tension load cell

FN4055 Series

SEAT BELT TENSION LOAD CELL

The FN4055 series tension seat belt load cell measures with excellent accuracy the forces exerted on the seat belt.
FN7080 gear stick load cell

FN7080 Series

GEAR STICK LOAD CELL

Designed for automotive comfort testing, the FN7080 is installed in place of the original gear knob on the gear stick and measures the force required to change gear.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Load Cell Sensor Type  Automotive Load Cells

Other

  • Force Direction  Compression

Electrical Characteristics

  • Full Scale Range (Newton) 200 – 2500

  • Full Scale Range (lbf) 40 – 500

  • Supply Voltage Range (VDC) 10

Usage Conditions

  • Operating Temperature Range  -20 – 80 °C [ -4 – 176 °F ]

  • Accuracy (% of FS) ±2.5

Industry Standards

  • IP Rating  IP50

Operation/Application

  • Output Signal Type  ±2 mV/V

Reference Number

  • TE Internal Number CAT-FLS0035
