SEAT BELT LOAD CELL - TENSION

SEAT BELT LOAD CELL - TENSION-CAT-FLS0032
  • MEAS
|
  • MEAS FN4055
The FN4055 series tension seat belt load cell measures with excellent accuracy the forces exerted on the seat belt.
More Less

Product Features

  • Force Load Cell Sensor Type : Automotive Load Cells

  • Force Direction : Tension

  • Full Scale Range (Newton): 100 – 300

  • Full Scale Range (lbf): 20 – 70

  • Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]

Available from

LADD Inc

Build and price the product now

Overview

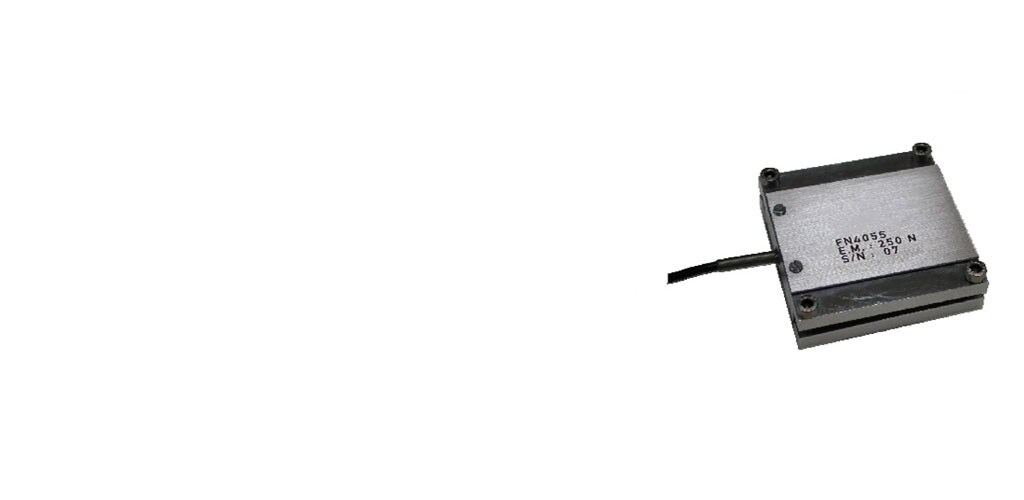

The FN4055 tension seat belt load cell sensor measures with excellent accuracy the forces exerted on the seat belt.

Only the actual compression upon the seat belt is measured, as the sensor is insensitive to contact from the crash test dummy.  The FN4055 tension seat belt load cell is designed for very low range, like tests for kid’s security. It is protected against overload by mechanical stops. A similar sensor, EL20-S458, covers requests with higher ranges up to 25kN. With many years of experience as a designer and manufacturer of sensors, we often work with customers to design or customize sensors for specific uses and testing environments. On request, instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

Benefits

  • Protected against overload
  • Tension only
  • Usable without cutting the belt
  • For Static and Dynamic Applications
  • Ranges from 100 to 300 N (20 to 60 lbf)
  • Compatible with most seat belts
  • Machined with integrated mechanical stops
  • Accuracy ±0.25%FS
orange bar

Applications

  • Automotive crash test
  • Kid seats tests
  • Security belts controls
  • Laboratory and Research
orange bar

Other Auto Safety Sensors



EL20 seat belt load cell

EL20 Series

Low Mass Seat Belt Load Cell

The EL20-S458 seat belt load cell sensor provides a super low mass titanium structure to minimize F=MA errors during the crash event.
FN4070 seat buckle sensor

FN4070/FN4080 Series

SEAT BUCKLE SENSOR

The FN4070 load cell measures the effort generated on the anchor point of seat belts during crash tests. For lower operating ranges 250N refer to model FN4080.
FN2570 load cell

FN2570 Series

EXTRA FLAT LOAD CELL

The FN2570 load cell has been developed for pedal force testing. It attaches easily on all types of pedals and test rigs for endurance and fatigue tests, especially where size is an important factor.
FN2317 handbrake load cell

FN2317 Series

HAND BRAKE LOAD CELL

The FN2317 handbrake load cell is designed with the purpose of allowing quick and easy installation when measuring forces applied to the handle of the hand brake in automobiles.
FN7080 gear stick load cell

FN7080 Series

GEAR STICK LOAD CELL

Designed for automotive comfort testing, the FN7080 is installed in place of the original gear knob on the gear stick and measures the force required to change gear.
pedal load cell

FN2114 Series

PEDAL LOAD CELL

The FN2114 series pedal load cell has been developed for pedal load testing. Its size allows the sensor to be easily installed on the pedals of any vehicle or a fatigue/endurance test bench.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Load Cell Sensor Type  Automotive Load Cells

Other

  • Force Direction  Tension

Electrical Characteristics

  • Full Scale Range (Newton) 100 – 300

  • Full Scale Range (lbf) 20 – 70

  • Supply Voltage Range (VDC) 5, 10

Usage Conditions

  • Operating Temperature Range  -20 – 80 °C [ -4 – 176 °F ]

  • Accuracy (% of FS) ±.25

Industry Standards

  • IP Rating  IP50

Operation/Application

  • Output Signal Type  2 mV/V

Reference Number

  • TE Internal Number CAT-FLS0032
