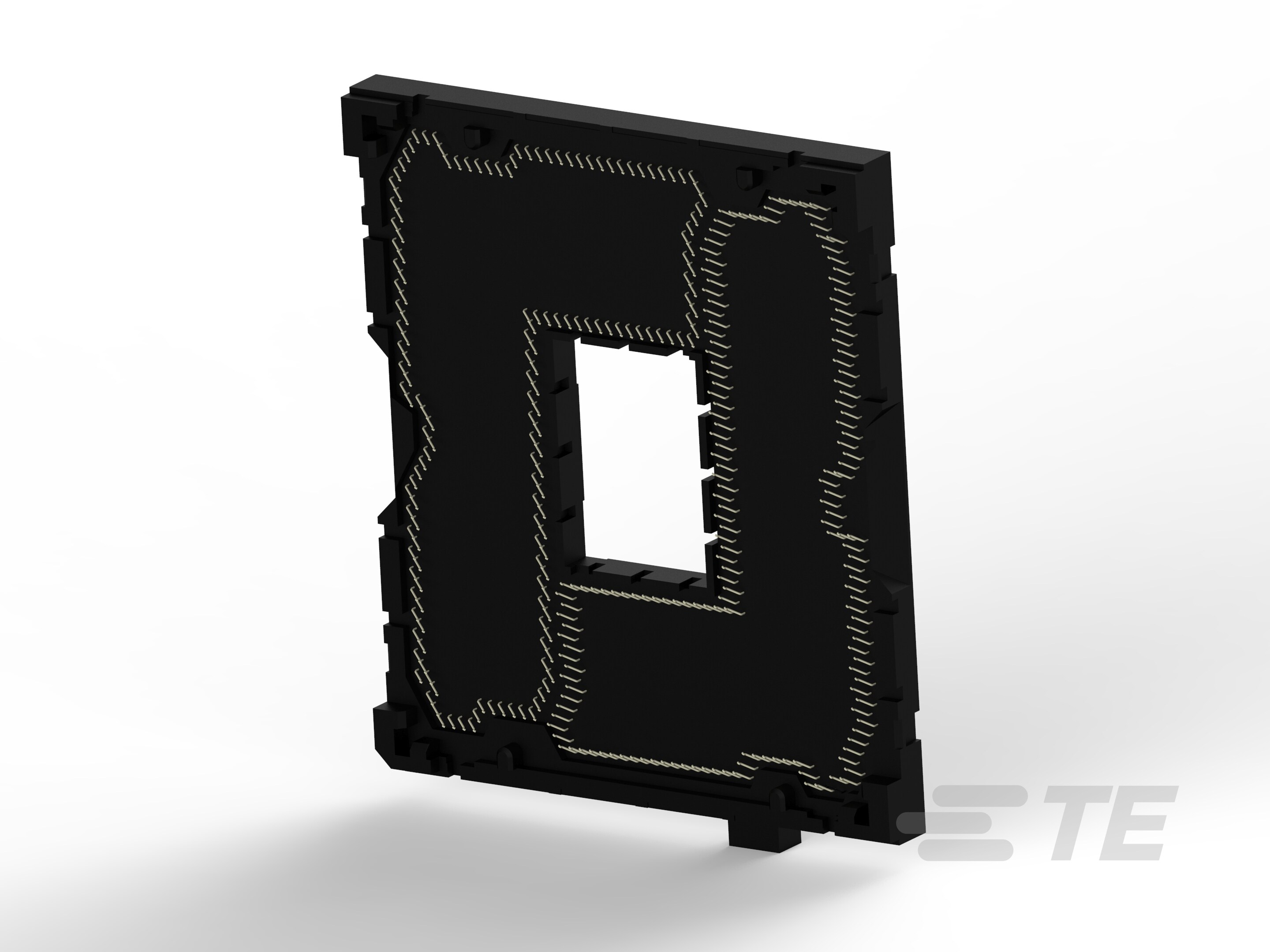

LGA 2011 Sockets

LGA 2011 Sockets-CAT-L59017-A68
LGA 2011 Sockets were designed for use with Intel's Core i7 and Xeon 5 LGA 2011 (Sandy Bridge) CPU processors. They are available with Gold 15 or Gold 30 contact plating. LGA 2011 Socket applications include servers and high end desktops.
More Less

Product Features

  • IC Socket Type : LGA 2011

  • Number of Positions : 2011

  • Contact Mating Area Plating Material Thickness (µin): 30, 15

  • Centerline (Pitch) : 1.02 mm [ .04 in ]

  • Termination Method to PCB : Surface Mount - Solder Ball

Available from

LADD Inc

Build and price the product now

Overview

Product Features

LGA Sockets

  • Socket housing facilitates efficient soldering to the PCB
  • Socket is supplied with a cap to facilitate vacuum pick and place
  • Backplates are available in zinc or nickel plating
Datasheet
LGA 3647 Socket Datasheet (English)
Datasheet
XLA Socket Datasheet (English)

Select Applications

LGA Sockets

  • Servers
  • High Performance Computing (HPC)
  • Workstations and desktop computers

Product Group

ChipConnect Cable Assemblies

ChipConnect internal faceplate-to-processor cable assemblies enable Intel Omni-Path Architecture (OPA) by mating directly with LGA 3647 sockets at the processor and QSFP28 port at the faceplate for 25 Gbps speeds.

Product Category

Sockets

Our sockets and hardware support next-generation CPUs for higher performance and scaling.

Application

Server Solutions

Extend a server’s reach and reduce its power consumption, while increasing speed and density in any configuration – blade, rack mount, or sleds.
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Tray

  • Tray Color  Blue, Black

Body Features

  • Frame Style  Square

Operation/Application

  • Circuit Application  Signal

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold

  • IC Socket Type  LGA 2011

  • Contact Mating Area Plating Material Thickness (µin) 30, 15

  • Contact Current Rating (Max) (A) .5

Housing Features

  • Housing Material  High Temperature Thermoplastic

  • Housing Color  Black

  • Centerline (Pitch)  1.02 mm [ .04 in ]

Product Type Features

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector System  Board-to-Board

Industry Standards

  • UL Flammability Rating  UL 94V-0

Configuration Features

  • Number of Positions  2011

  • Grid Spacing  1.016 x .8814 mm [ .040 x .0347 in ]

Termination Features

  • Termination Method to PCB  Surface Mount - Solder Ball

Mechanical Attachment

  • Connector Mounting Type  Board Mount

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-L59017-A68
