SAE and NCAP Pedestrian Accelerometer

SAE and NCAP Pedestrian Accelerometer-CAT-PPA0007
  • MEAS
|
  • MEAS 40A

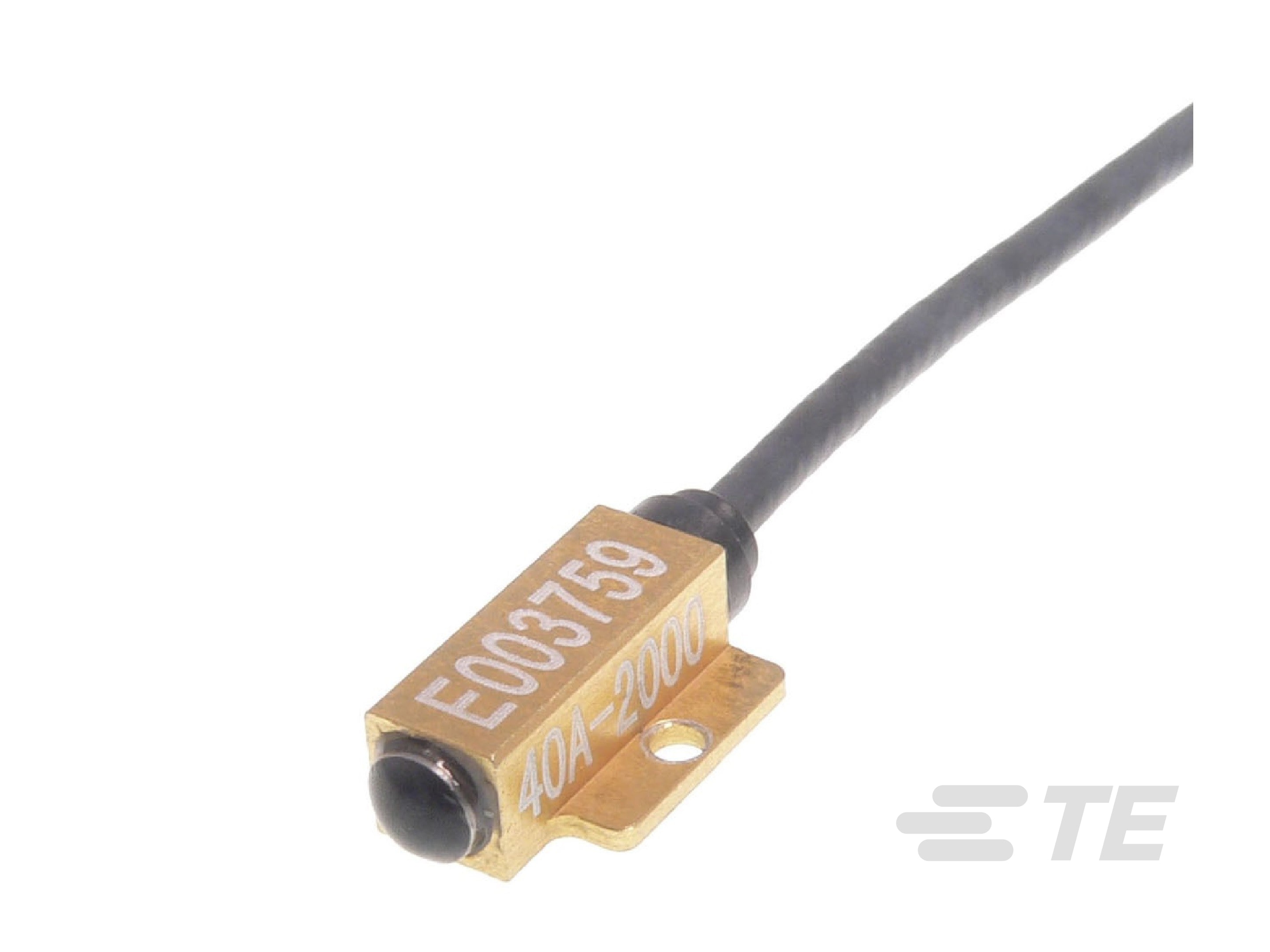

The Model 40A pedestrian impact test sensor is a small piezoresistive accelerometer designed to be compliant with the latest SAE J211/J2570 (AUG2009) specifications.
More Less

Product Features

  • Accelerometer Type : MEMS DC

  • Vibration Sensor Product Type : MEMS Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0-200 to 0-4500

  • Full Scale Output Voltage (VDC): ±.15

Available from

LADD Inc

Build and price the product now

Overview
The Model 40A pedestrian impact test sensor is a small piezoresistive accelerometer designed to be compliant with the latest SAE J211/J2570 (AUG2009) specifications.

This accelerometer sensor features built-in mechanical stops, anodized aluminum alloy housing and flexible cable output.  The sensing element is fluid damped to extend useful frequency range and reduce the adverse effect of high frequencies ringing caused by sensor resonance.



Benefits

  • Silicon Piezoresistive Elements
  • ±25 to ±2,000 g Ranges
  • 2-10 Vdc Excitation
  • -20 to +80 ºC Temperature Range
  • Critically Damped Sensor
  • Low Transverse Sensitivity
  • <±20 mV Zero Offset

Applications

  • Anthropomorphic Dummy Instrumentation
  • Crush Zone Testing
  • Pedestrian Impact Testing
  • Auto Safety Testing Applications
  • Shock and Impact Testing
  • Transient Drop Testing
orange bar

Other Auto Safety Sensors



64x accelerometer

64X Series

Anthropomorphic Dummy Accelerometer

The Model 64X Accelerometer is the next generation crash accelerometer for anthropomorphic dummy instrumentation featuring a full bridge output configuration with an advanced damping for excellent shock survivability and flat frequency response to 7kHz.
64b accelerometer

64B Series

SAE J211 ATD Dummy Accelerometer Sensor

The Model 64B Accelerometer is based on an advanced piezoresistive MEMS sensing element which offers exceptional dynamic range and stability.
52M30 side impact accelerometer

52M30 Series

Side Impact Accelerometer

The Model 52M30 side impact crash test accelerometer has an advanced piezoresistive MEMS sensing element and features a flat amplitude response to 7000Hz.
52f crash test accelerometer

52F Series

Crash Test Accelerometer

The Model 52F ISO-6487 / SAE-J211/J2570 compliant side impact accelerometer has recently been upgraded to incorporate the one of the most advanced piezoresistive MEMS sensors on the market featuring an outstanding shock survivability, flat amplitude, and phase response up to 8000Hz.
EGAS-S398C pedestrian impact sensor

EGAS-S398C Series

NCAP Pedestrian Impact Test Sensor

The Model EGAS-S398C NCAP pedestrian impact test sensor is a critically fluid damped accelerometer designed specifically for ATD pedestrian impact and head form testing.
603 high impact testing small analog gyroscope

603 Series

Small Analog Gyro for High Impact Testing

The Model 603 analog gyroscope is a small, lightweight triaxial rate sensor designed for high impact testing.
el20 seat belt load cell sensor

EL20 Series

Seat Belt Load Cell

The EL20-S458 seat belt load cell sensor provides a super low mass titanium structure to minimize F=MA errors during the crash event.
610 small analog gyroscope

610 Series

Small Analog Gyroscope

The Model 610 angular rate sensor is a small analog gyroscope designed specifically for automotive safety testing and other system designs requiring accurate measurement of angular velocity.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  MEMS DC

  • Vibration Sensor Product Type  MEMS Accelerometer

Body Features

  • Primary Product Material  Anodized Aluminum

  • Product Weight  5 g [ .175 oz ]

  • Number of Sensing Axes  Uniaxial

Electrical Characteristics

  • Zero Acceleration Output (mV) ±20

  • Excitation Voltage Range (VDC) 2 – 10

  • Full Scale Output Voltage (VDC) ±.15

Other

  • Non-Linearity (FSO) (%) ±1

  • Acceleration Range (±) (g) 100, 2000, 500, 250, 25, 1000

  • Sensitivity (mV/g) 1.5, .075, .15, .3, 6, .6

  • EU RoHS Compliance  Compliant

Configuration Features

  • Electrical Connection  Integral Cable

Usage Conditions

  • Operating Temperature Range  -20 – 80 °C [ -4 – 176 °F ]

Operation/Application

  • Output Current Type  DC

Industry Standards

  • IP Rating  IP65

Signal Characteristics

  • Frequency Response (Hz) 0-200 to 0-4500

Mechanical Attachment

  • Sensor Mount Type  Screw Mount

Reference Number

  • TE Internal Number CAT-PPA0007

Related Materials

Datasheets & Catalog Pages
