SMALL, LIGHTWEIGHT TRIAXIAL RATE SENSOR

SMALL, LIGHTWEIGHT TRIAXIAL RATE SENSOR-CAT-RIN0005
  • MEAS
|
  • MEAS 603

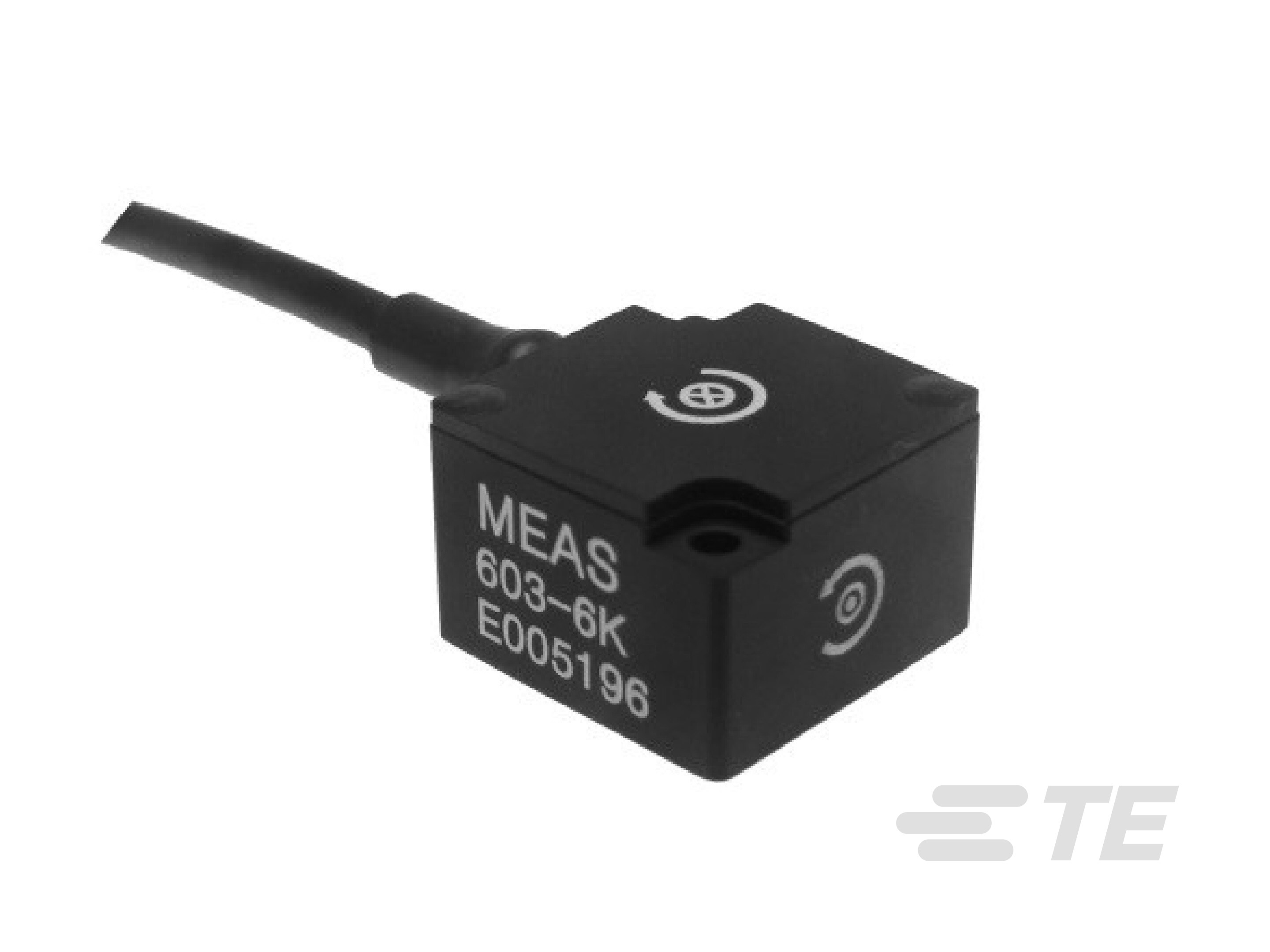

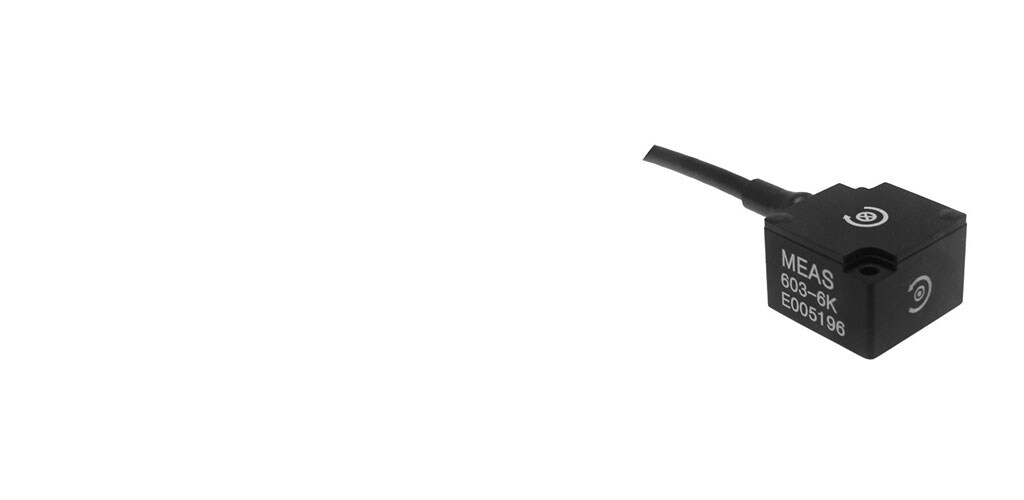

The Model 603 analog gyroscope is a small, lightweight triaxial rate sensor designed for high impact testing.
More Less

Product Features

  • Rate & Inertial Sensor Type : Rate Sensors/Gyros

  • Case Material : Anodized Aluminium

  • EU RoHS Compliance : Compliant, Compliant with Exemptions

  • EU ELV Compliance : Compliant, Compliant with Exemptions

Available from

LADD Inc
Overview
The Model 603 analog gyroscope is a small, lightweight triaxial rate sensor designed for high impact testing.

The sensor utilizes reliable silicon MEMS sensing elements with custom electronics in angular rate ranges of ±500 to ±24,000°/sec. The model 603 is packaged in a shock resistant housing specifically designed for critical measurement applications such as automotive safety, biomechanics and aerospace testing.

Benefits

  • Low Noise Jacketed Cables
  • Rugged Integral Strain Relief
  • Reliable Silicon MEMS Sensors
  • -40 to +105°C Temperature Range
  • Shock Resistant Package
  • 5-16Vdc Excitation Voltage

Applications

  • Auto Safety Crash Testing
  • Aerospace Testing
  • Pedestrian Impact
  • Rollover Testing
  • Motorsports
  • Biomechanics Testing
  • Robotic System Design
orange bar

Other Auto Safety Sensors

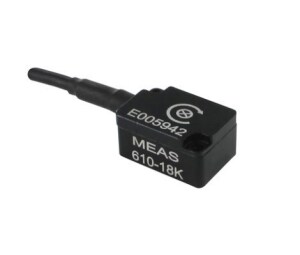

610 small analog gyroscope

610 Series

Small Analog Gyroscope

The Model 610 angular rate sensor is a small analog gyroscope designed specifically for automotive safety testing and other system designs requiring accurate measurement of angular velocity.

el20 seat belt load cell sensor

EL20 Series

Seat Belt Load Cell

The EL20-S458 seat belt load cell sensor provides a super low mass titanium structure to minimize F=MA errors during the crash event.
64x accelerometer

64X Series

Anthropomorphic Dummy Accelerometer

The Model 64X Accelerometer is the next generation crash accelerometer for anthropomorphic dummy instrumentation featuring a full bridge output configuration with an advanced damping for excellent shock survivability and flat frequency response to 7kHz.
64b accelerometer

64B Series

SAE J211 ATD Dummy Accelerometer Sensor

The Model 64B Accelerometer is based on an advanced piezoresistive MEMS sensing element which offers exceptional dynamic range and stability.

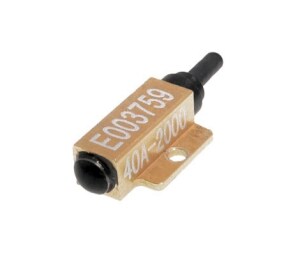

40a pedestrian impact test sensor

40A Series

SAE J211/J2570 Pedestrian Impact Test Sensor

The Model 40A pedestrian impact test sensor is a small piezoresistive accelerometer designed to be compliant with the latest SAE J211/J2570 (AUG2009) specifications.

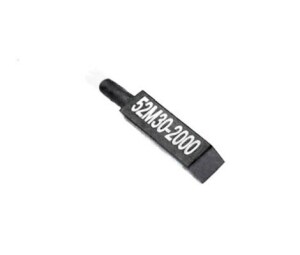

52M30 side impact accelerometer

52M30 Series

Side Impact Accelerometer

The Model 52M30 side impact crash test accelerometer has an advanced piezoresistive MEMS sensing element and features a flat amplitude response to 7000Hz.
EGAS-S398C pedestrian impact sensor

EGAS-S398C Series

NCAP Pedestrian Impact Test Sensor

The Model EGAS-S398C NCAP pedestrian impact test sensor is a critically fluid damped accelerometer designed specifically for ATD pedestrian impact and head form testing.

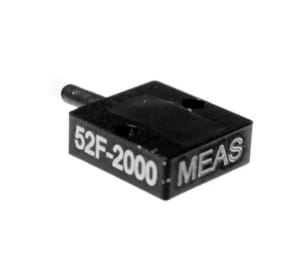

52f crash test accelerometer

52F Series

Crash Test Accelerometer

The Model 52F ISO-6487 / SAE-J211/J2570 compliant side impact accelerometer has recently been upgraded to incorporate the one of the most advanced piezoresistive MEMS sensors on the market featuring an outstanding shock survivability, flat amplitude, and phase response up to 8000Hz.
Features

Please review product documents or contact us for the latest agency approval information.

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Other

  • FS Range (±) DEG/SEC  1500, 24000, 500, 6000, 18000, 100

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Product Type Features

  • Accuracy (%) ±.5

  • Rate & Inertial Sensor Type  Rate Sensors/Gyros

Dimensions

  • Product Height (mm) 13, 14.5

  • Product Length (mm) 20.8

  • Product Width (mm) 20.8

Electrical Characteristics

  • Excitation Voltage Range (VDC) 5 – 16

Body Features

  • Case Material  Anodized Aluminium

Reference Number

  • TE Internal Number CAT-RIN0005
