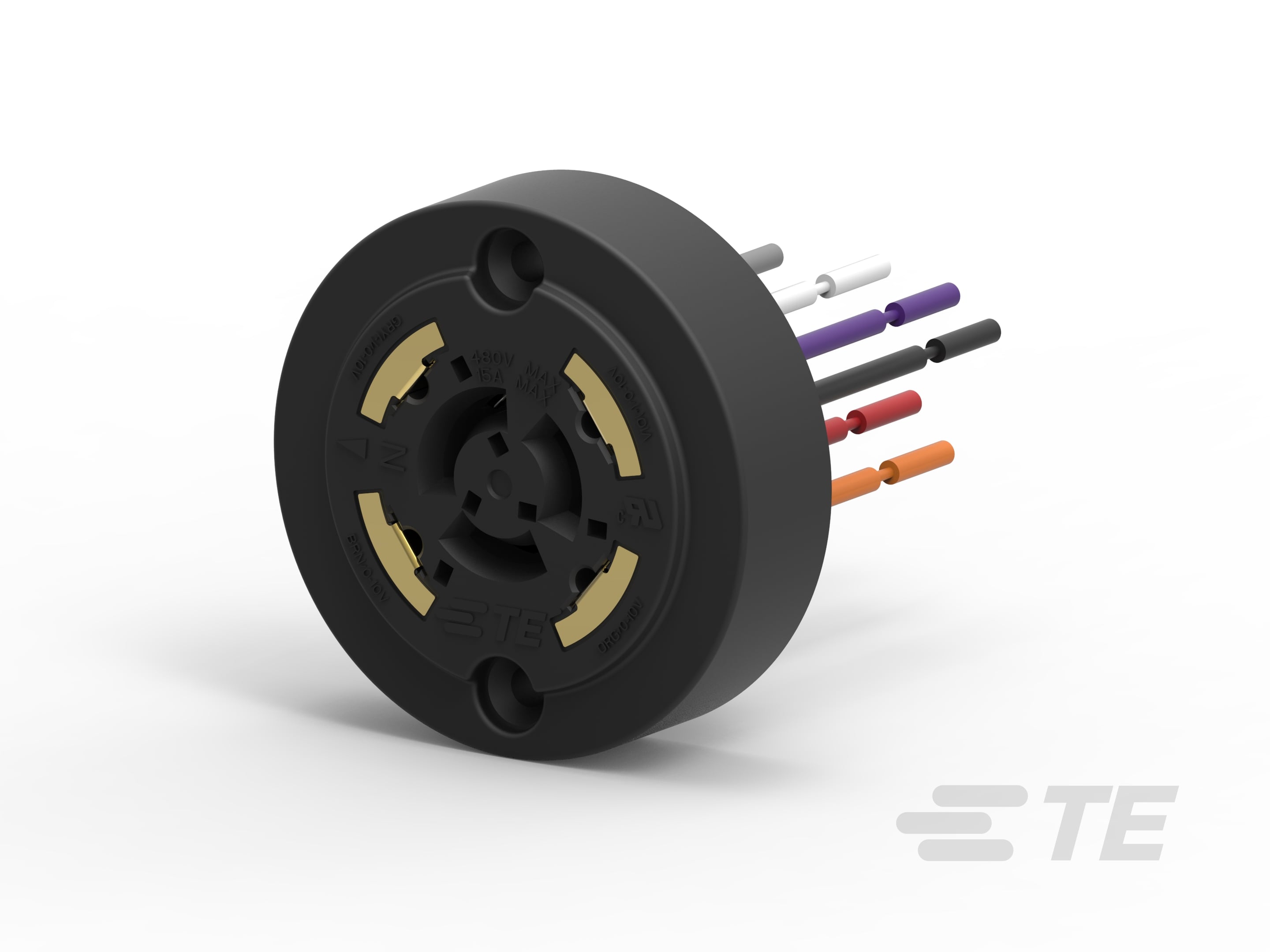

Dimming Receptacle

Dimming Receptacle-CAT-ST833-R2435A
  • LUMAWISE
|
  • LUMAWISE Endurance N
Our ANSI C136.41 compliant LUMAWISE dimming receptacle provides an electrical and mechanical interconnection between a photo control cell and luminaire.
More Less

Available from

LADD Inc

Build and price the product now

Overview

TE Connectivity's ANSI C136.41 compliant LUMAWISE dimming receptacle and spring leaf contacts provides an electrical and mechanical interconnection between an ANSI C136.41-2013 photo control cell and luminaire. Ideal for outdoor commercial and utility lighting the ANSI C136.41 compliant dimming receptacle is available with two or four dimming contacts to support either 0-10 VDC dimming methods or Digital Addressable Lighting Interface (DALI), while providing a reliable power interconnect with three robust twist lock contacts.

Applications

  • Street and Roadway Lighting
  • Photo controls
  • Parking Lot Lighting

Benefits

  • Accepts ANSI standard dimmable photocells to provide a connection between the photocell and the luminaire
  • Available with two or four dimming contacts to support one or two channel dimming protocols
  • Robust twist lock contacts for a reliable power interconnect
  • Receptacle comes pre-terminated with wire leads for ease of integration into new or existing light fixtures
  • Available with 105° and 150° C rated wire insulation for varying temperature rated luminaires
