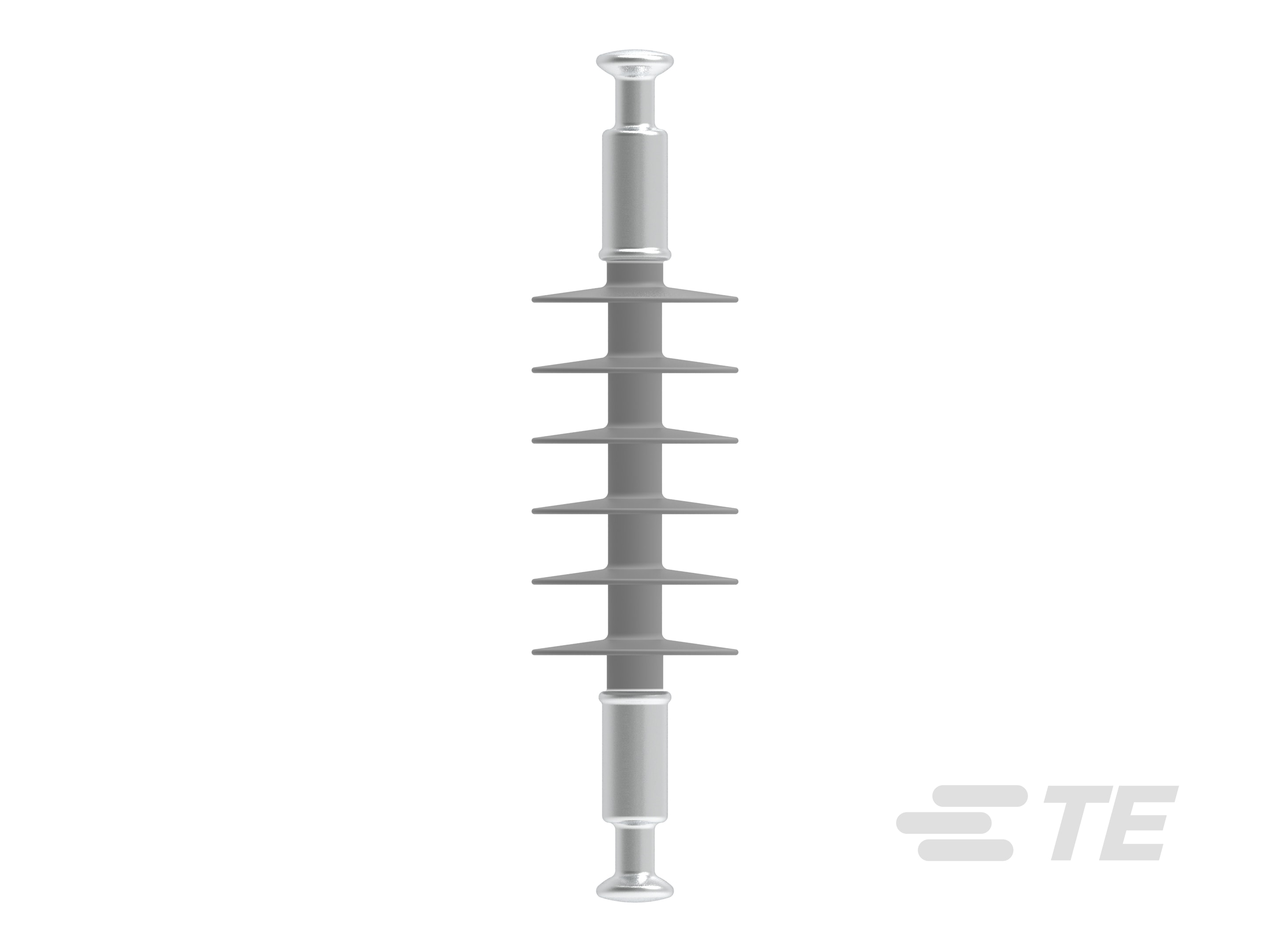

Suspension Insulators

Suspension Insulators-CAT-SUSP-INSU
Our range of Suspension Insulators is made of silicone and has been designed for your overhead distribution lines to support the reduction of the total cost of ownership.
More Less

Product Features

  • Primary Product Color : Gray

  • Product Weight (kg): 1.32, 1.21, 1.9, .97, 1.63, 1.69, 1.54, 1.14, .86, 1.2, 1.46, 1.08, 1.43, .8, 1.35, 1.29, 1.58, 1.93, 1.18, 1.82, 2.14, 1.95, 2.25, 1.73, 1.03, 1.24, 1.62, 1.66, 1.53, 1.34, .94, 2.05, 1.45, 1.42, 1.31, 2.02, 1.64, 1.09, 1.75, .83, 1.13, .99, 1.77, 1.1, 1.85, 1.26, 1.23, 1.15, 1.04, .95, 1.6, 1.55, 1.5, 1.37, 1.48, 1.19, 1.02, 2.09, .93, .9, 1.74, .89, 2.06, 1.4, 1.12, 1.33, 1, 1.44, 1.65, 1.78, 2.17, 1.22, 1.67, 2.01, 1.52, 2.42, 1.41, 1.76, 1.59, .92, 1.05, 1.27, 1.38, .96, .85, 1.49, 2.1, 2, 1.86, 1.56, 1.7, 1.16, 2.18, 2.34, 1.01, 1.07, 1.11, 1.8, 1.3, 1.51, 1.17, 1.61, 1.47, 2.15, 1.94, 1.57, 1.36, 1.28, 1.39, 2.26, 1.06, 2.2, 1.98, 1.25

  • Section Length (mm): 977, 822, 276, 732, 552, 702, 762, 486, 396, 497, 966, 492, 936, 287, 407, 617, 336, 516, 437, 606, 816, 527, 917, 306, 426, 522, 317, 372, 347, 707, 792, 612, 642, 252, 876, 636, 557, 906, 737, 582, 912, 647, 456, 887, 257, 546, 827, 246, 972, 467, 756, 666, 767, 402, 672, 282, 587, 947, 846, 677, 462, 696, 942, 857, 432, 882, 342, 797, 366, 852, 377, 726, 786, 576, 312

  • Section Length (in): 13.46, 38.03, 22.91, 30.2, 19.57, 28.82, 25.47, 15.83, 12.48, 14.65, 26.46, 26.22, 31.38, 20.75, 27.4, 36.85, 29.76, 9.92, 38.46, 27.64, 16.02, 17.2, 35.91, 17.95, 18.19, 37.09, 24.29, 10.12, 23.11, 11.1, 15.59, 38.27, 27.83, 19.37, 28.58, 10.87, 12.28, 34.72, 32.36, 21.73, 33.74, 20.55, 14.84, 19.13, 23.86, 21.5, 37.28, 26.65, 33.31, 17.01, 34.49, 13.66, 18.39, 25.04, 35.67, 31.18, 12.05, 21.93, 36.1, 22.68, 30, 14.41, 25.28, 11.3, 29.02, 9.69, 34.92, 32.13, 24.09, 16.77, 32.56, 33.54, 30.94, 13.23, 20.31

  • Shed Inside Diameter (mm): 23, 24

  • Shed Inside Diameter (in): .91, .94

  • Shed Outside Diameter (mm): 88, 82

  • Shed Outside Diameter (in): 3.46, 3.23

Available from

LADD Inc
Overview

Our Suspension Insulators combine the high tensile strength of Fiber Reinforced Plastic (FRP) with high voltage shed profile, to produce a rugged, lightweight suspension insulator for overhead line applications.

The glass fiber core provides high mechanical strength with tensile values of greater than 70 kN/15,000 lbs. Our silicone insulator profile is backed by 40 years of our Raychem, Bowthorpe EMP and Axicom medium and high voltage product design. Silicone is a hydrophobic material with a performance of tracking/erosion resistance with UV stability. It also gives a good balance of technical performance in a wide range of climatic and pollution conditions.

The construction consists of a compact creepage design insulator profile which has the same shed diameter in order to maximize flashover performance over a minimum insulator length. There is also a secondary moisture barrier placed around the interfacial seal.

bar

Key Features

  • 70kN / 15,000 lbs Tension rating (SML)
  • A wide selection of galvanized metal end fittings
  • Reliable tensile performance
  • Light-weight for easier installation
  • Silicone housing has excellent hydrophobic properties
  • Shed design to minimize insulator length per kV rating
  • Shock and vibration resistant
  • Good tracking and erosion resistance performance
  • IEC 61466-1 or ANSI C29.13 qualified
bar

Tension Suspension Insulators

Improving Grid Reliability

bar

TE's Range of Insulators

Grid Connectivity and Reliability Webinar Series

Join our technical experts as they address solutions to your power network challenges during our series of webinars.

Application

Wildlife and Asset Protection Solutions

Over 25% of all power outages are caused by wildlife and vegetation interfering with electrical equipment. Discover our solutions to prevent outages.

Energy Distributors

Access our Authorized Distributors for the Energy market by country.
wildfire image

Application

Wildfire Mitigation

Learn how to prevent wildfires and bushfires from starting.
FAQ

Frequently Asked Questions

Question: Of which range of insulator are the Suspension Insulators part of?

Answer: Our Suspension Insulators are part of our GDIP range.



Learn more about our Global Distribution Insulators Platform

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Insulator Product Type  Tension Insulator

Electrical Characteristics

  • Nominal System Voltage (kV) ≤ 15, ≤ 41, ≤ 72, ≤ 25, ≤ 11, ≤ 36, ≤ 33, ≤ 66, ≤ 17.5

  • Dry AC Flashover (kV) 75, 85, 86, 90, 95, 100, 105, 110, 115, 120, 125, 130, 135, 145, 155, 160, 165, 175, 185, 190, 195, 205, 215, 220, 225, 235, 245, 250, 255, 265, 275, 280, 285, 290, 295, 300, 305, 310, 315, 325

  • Wet AC Flashover (kV) 60, 70, 75, 80, 85, 90, 95, 100, 105, 115, 120, 125, 135, 145, 150, 155, 165, 175, 180, 190, 200, 205, 210, 220, 225, 230, 235, 240, 250, 255, 260, 270, 275, 285, 290, 295, 300, 305

  • Nominal Dry Arc (mm) 125, 155, 165, 173, 185, 202, 210, 215, 231, 245, 255, 260, 275, 289, 300, 305, 318, 335, 345, 347, 365, 376, 390, 395, 405, 425, 434, 435, 455, 463, 480, 485, 492, 515, 521, 525, 545, 550, 570, 575, 579, 605, 608, 615, 635, 637, 660, 665, 666, 695, 705, 724, 725, 750, 753, 755, 782, 785, 795, 811, 815, 840, 845, 885

  • Nominal Dry Arc (in) 4.92, 6.1, 6.5, 6.81, 7.28, 7.95, 8.27, 8.46, 9.09, 9.65, 10.04, 10.24, 10.83, 11.38, 11.81, 12.01, 12.52, 13.19, 13.58, 13.66, 14.37, 14.8, 15.35, 15.55, 15.94, 16.73, 17.09, 17.13, 17.91, 18.23, 18.9, 19.09, 19.37, 20.28, 20.51, 20.67, 21.46, 21.65, 22.44, 22.64, 22.8, 23.82, 23.94, 24.21, 25, 25.08, 25.98, 26.18, 26.22, 27.36, 27.76, 28.5, 28.54, 29.53, 29.65, 29.72, 30.79, 30.91, 31.3, 31.93, 32.09, 33.07, 33.27, 34.84

  • Wet AC Withstand (kV) 45, 55, 60, 65, 70, 75, 80, 90, 95, 100, 105, 110, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 185, 190, 195, 200, 210, 220, 225, 230, 240, 250, 255, 260, 265, 270, 280, 285, 300

  • Dry AC Withstand (kV) 60, 70, 80, 85, 90, 95, 100, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 195, 200, 205, 215, 225, 230, 235, 245, 255, 260, 265, 275, 280, 285, 290, 295, 300, 305, 310, 320

  • Tension Rating - SML (kN) 70

Body Features

  • Primary Product Color  Gray

  • Bottom Fitting Type  Tongue, Ball, Socket, Eye

  • Top Fitting Type  Ball, Clevis, Y-Clevis, Tongue, Socket

Housing Features

  • Housing Material  Silicone

Dimensions

  • Product Weight (kg) .8, .83, .85, .86, .89, .9, .92, .93, .94, .95, .96, .97, .99, 1, 1.01, 1.02, 1.03, 1.04, 1.05, 1.06, 1.07, 1.08, 1.09, 1.1, 1.11, 1.12, 1.13, 1.14, 1.15, 1.16, 1.17, 1.18, 1.19, 1.2, 1.21, 1.22, 1.23, 1.24, 1.25, 1.26, 1.27, 1.28, 1.29, 1.3, 1.31, 1.32, 1.33, 1.34, 1.35, 1.36, 1.37, 1.38, 1.39, 1.4, 1.41, 1.42, 1.43, 1.44, 1.45, 1.46, 1.47, 1.48, 1.49, 1.5, 1.51, 1.52, 1.53, 1.54, 1.55, 1.56, 1.57, 1.58, 1.59, 1.6, 1.61, 1.62, 1.63, 1.64, 1.65, 1.66, 1.67, 1.69, 1.7, 1.73, 1.74, 1.75, 1.76, 1.77, 1.78, 1.8, 1.82, 1.85, 1.86, 1.9, 1.93, 1.94, 1.95, 1.98, 2, 2.01, 2.02, 2.05, 2.06, 2.09, 2.1, 2.14, 2.15, 2.17, 2.18, 2.2, 2.25, 2.26, 2.34, 2.42

  • Section Length (mm) 246, 252, 257, 276, 282, 287, 306, 312, 317, 336, 342, 347, 366, 372, 377, 396, 402, 407, 426, 432, 437, 456, 462, 467, 486, 492, 497, 516, 522, 527, 546, 552, 557, 576, 582, 587, 606, 612, 617, 636, 642, 647, 666, 672, 677, 696, 702, 707, 726, 732, 737, 756, 762, 767, 786, 792, 797, 816, 822, 827, 846, 852, 857, 876, 882, 887, 906, 912, 917, 936, 942, 947, 966, 972, 977

  • Section Length (in) 9.69, 9.92, 10.12, 10.87, 11.1, 11.3, 12.05, 12.28, 12.48, 13.23, 13.46, 13.66, 14.41, 14.65, 14.84, 15.59, 15.83, 16.02, 16.77, 17.01, 17.2, 17.95, 18.19, 18.39, 19.13, 19.37, 19.57, 20.31, 20.55, 20.75, 21.5, 21.73, 21.93, 22.68, 22.91, 23.11, 23.86, 24.09, 24.29, 25.04, 25.28, 25.47, 26.22, 26.46, 26.65, 27.4, 27.64, 27.83, 28.58, 28.82, 29.02, 29.76, 30, 30.2, 30.94, 31.18, 31.38, 32.13, 32.36, 32.56, 33.31, 33.54, 33.74, 34.49, 34.72, 34.92, 35.67, 35.91, 36.1, 36.85, 37.09, 37.28, 38.03, 38.27, 38.46

  • Shed Inside Diameter (mm) 23, 24

  • Shed Inside Diameter (in) .91, .94

  • Shed Outside Diameter (mm) 82, 88

  • Shed Outside Diameter (in) 3.23, 3.46

  • Creepage Distance (mm) 265, 340, 355, 400, 415, 445, 460, 520, 535, 580, 585, 625, 645, 705, 715, 740, 765, 805, 830, 890, 895, 900, 950, 985, 1010, 1065, 1075, 1135, 1165, 1195, 1225, 1255, 1320, 1345, 1380, 1390, 1435, 1440, 1500, 1525, 1550, 1565, 1615, 1625, 1685, 1705, 1710, 1745, 1795, 1875, 1885, 1975, 2035, 2065, 2155, 2200, 2245, 2335, 2360, 2425, 2520, 2685, 2845, 3010

  • Creepage Distance (in) 10.43, 13.39, 13.98, 15.75, 16.34, 17.52, 18.11, 20.47, 21.06, 22.83, 23.03, 24.61, 25.39, 27.76, 28.15, 29.13, 30.12, 31.69, 32.68, 35.04, 35.24, 35.43, 37.4, 38.78, 39.76, 41.93, 42.32, 44.69, 45.87, 47.05, 48.23, 49.41, 51.97, 52.95, 54.33, 54.72, 56.5, 56.69, 59.06, 60.04, 61.02, 61.61, 63.58, 63.98, 66.34, 67.13, 67.32, 68.7, 70.67, 73.82, 74.21, 77.76, 80.12, 81.3, 84.84, 86.61, 88.39, 91.93, 92.91, 95.47, 99.21, 105.71, 112.01, 118.5

Industry Standards

  • BIL Rating (kV) 100, 115, 120, 125, 130, 140, 145, 155, 165, 170, 180, 185, 195, 200, 205, 210, 215, 220, 230, 240, 245, 260, 265, 270, 275, 285, 290, 310, 320, 325, 335, 340, 350, 355, 360, 370, 380, 385, 390, 400, 405, 415, 420, 430, 435, 445, 450, 455, 460, 470, 475, 485, 500

Product Availability

  • Product Availability  Worldwide

Reference Number

  • TE Internal Number CAT-SUSP-INSU
