- ALR
- ALR SC
- TE Internal #: Y12345-000

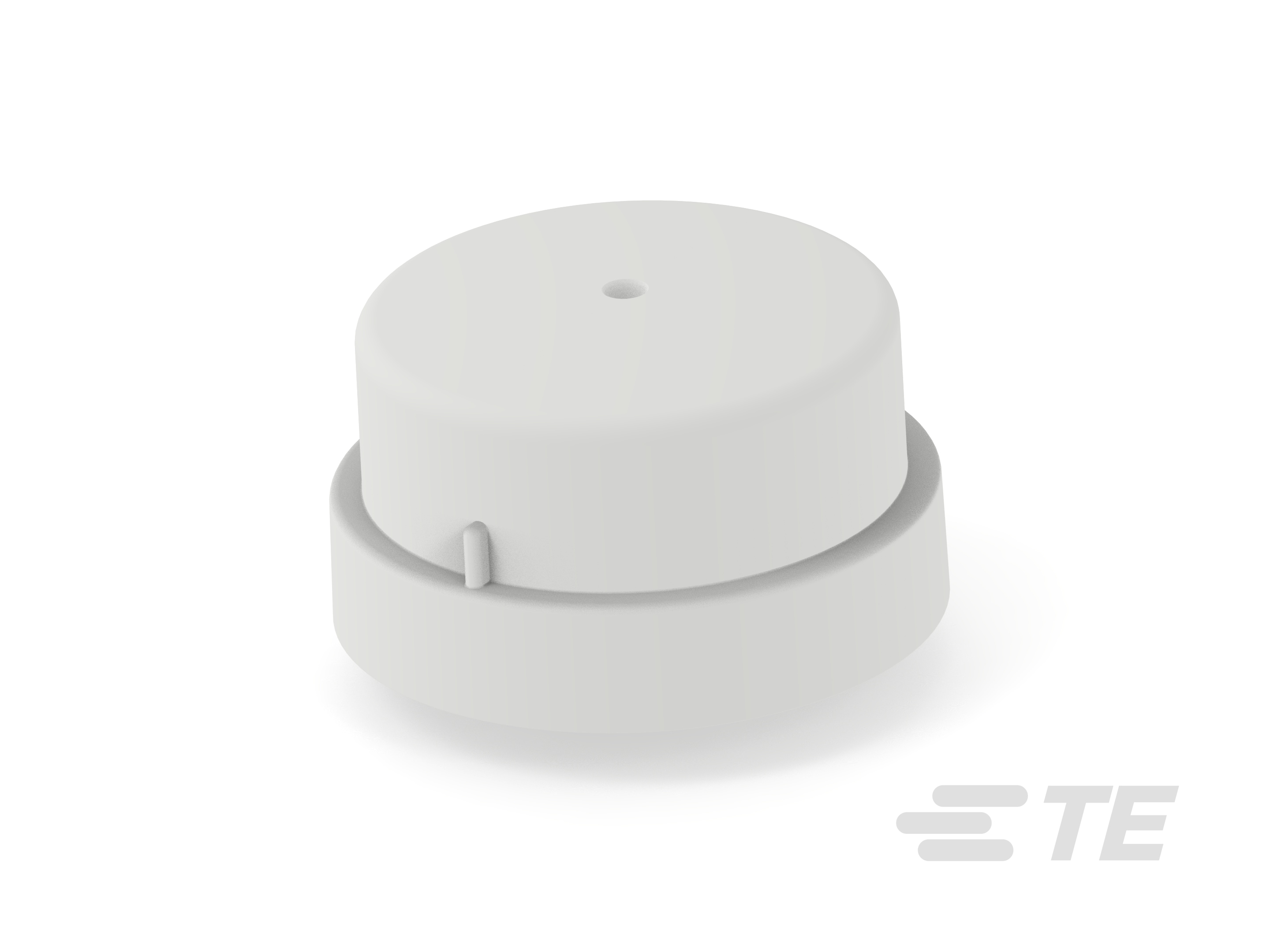

- TE Internal Description: ALR-SC-10A
-
Lighting Product Type : Shorting Cap
-
Primary Product Color : Clear
-
Product Diameter : 73 mm [ 2.87 in ]
-
Operating Voltage Range (VAC): 120 – 480
-
Sealable : Yes
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_Y12345-000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_Y12345-000_A.2d_dxf.zip English
- ENG_CVM_CVM_Y12345-000_A.3d_igs.zip English
- ENG_CVM_CVM_Y12345-000_A.3d_stp.zip English
Datasheets & Catalog Pages
- SHORTING-OPEN-CAPS-STREET-LIGHTING ENG_DS_E339_2105.pdf English
