Application
Power & Signal
Innovative low voltage solutions for traction, power and signal distribution that meet capacity and speed demands while complying with the latest market requirements.
Power applications are allocated throughout the train roof and underfloor, including power converters/inverters as well as power storage and miscellaneous distributed sub systems. Quick replacement and low maintenance of widely distributed equipment, whilst reducing space, weight and energy consumption to increase passenger comfort, requires sophisticated solutions. Operators throughout the world are demanding more productivity, efficiency and availability from their rolling stock fleet. Our modular concept is a solution to the standardisation of sub systems while fulfilling individual requirements. Due to the wide range of operating environments, IP65 – IP69 protection class components can be crucial for a robust and reliable system. Our wide range of power applications and on-board equipment working on several power levels include couplers, batteries, cabinets, converters/inverters and car to car solutions.
Connectors
Rail Connectors
Connectors
Signal
Solutions for signal connectivity with flexible modular designs, various shell sizes with screw or bayonet thread.
Connectors
UIC
A varied range of robust connectors which conform to international standards such as UIC. These connectors have been developed for motor power supply functions and for connection of towed carriages and equip a large number of today’s European fleet.
Connectors
Specific
Specific tailor made designed connectors, to suit the challenges and requirements of your environment conditions
Connectors
Trackside
The SIG Series is usable for systems that can be applied to most types of track mounted and wayside equipment.
Connectors
Terminals and Splices
Terminals and Splices are ideally suited for power generation and distribution in Rail, Mass Transit, Power Transmission and Military markets.
Wire & Cable
Rail Wire & Cable
Wire & Cable

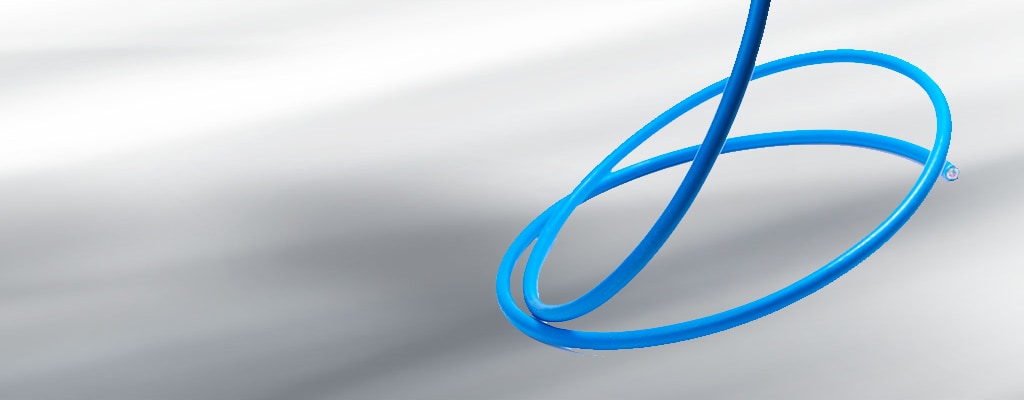

100E Wire & Cable Family
The new 100E Rail-approved Wire & Cable is fully compliant to all of the clauses specified in: EN50306-2.-3.-4. and EN45545. The 100E meets all of the thin walled EN Rail approvals, and is suitable for all new rail builds within the European Union.
Resistors
A resistor is a passive component that reduces voltage or limits the current flowing through a circuit. This component can also absorb energy and dissipate this energy in the form of heat. Its resistance to the flow of electrons is determined by the conductive materials with which it is built. The materials used in the composition of a resistor perform a critical role in enabling performance reliability and stability, particularly for high-voltage, high-power, high stability/accuracy, or high-current applications.
Resistors
Chassis Mount Resistors
A chassis mount resistor is designed to promote heat loss and cooling. This resistor is manufactured using wirewound resistor technology and features a ceramic core that is molded into an extruded aluminum chassis mount housing.
Resistors
Surface Mount Resistors
A surface mount resistor is a tiny rectangular ceramic body with silver conductive edges on either end. They provide the same functionality as the more traditional axially leaded resistors but has a lower power dissipation capacity and oftentimes a lower stray inductance and capacity.
Resistors
Potentiometers
A potentiometer is a manually adjustable variable resistor that allows you to change and regulate the current flowing through a resistor.
Resistors
Trimmers
A trimmer resistor is a type of variable resistor or adjustable potentiometer that can adjust, tune, and calibrate circuits. It is meant to never be seen or adjusted by the device’s user.
