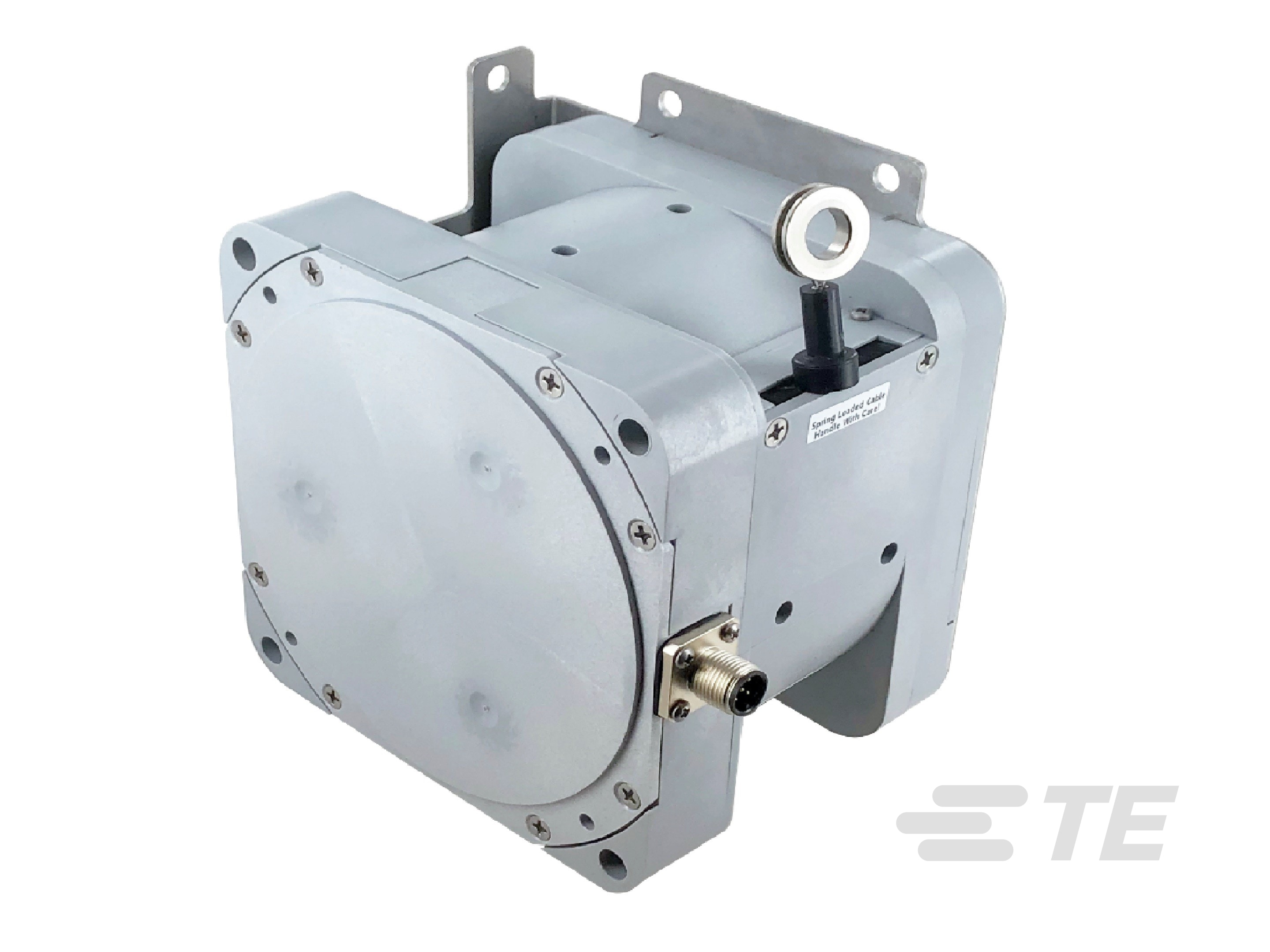

CANopen IP67 String Potentiometer

CANopen IP67 String Potentiometer-CAT-CAPS0063
  • MEAS
|
  • MEAS SK
Available in both 250 and 400-inch stroke ranges, the SKH series IP67 string potentiometer is designed and manufactured with a CANOpen interface for simple integration into systems with the CAN platform.
More Less

Product Features

  • Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

  • Digital Resolution (bit): 12

  • IP Rating : IP67

  • Full Stroke Range (mm): 6350, 10160

  • Full Stroke Range (in): 250, 400

  • Case Material : Polycarbonate + Stainless Mounting Bracket

Available from

LADD Inc
Overview
The SKH series string pot is manufactured with a CANOpen interface for simple integration into systems with the CAN platform.

The SKH series string pot offers compact design, ease of use and the utmost in flexibility.  Every unit offers the customer a user-selectable 4-20 mA or 0-10VDC output signal option, an easily adjustable stainless steel mounting bracket for multiple installation options and the ability to change the direction of the electrical connector to accommodate the user’s wiring needs. Our unique electronic circuitry and an extremely durable spring-loaded stainless steel measuring cable deliver an accurate reliable “absolute” position feedback signal over the entire stroke. The SKH model is economically priced making it the perfect solution for both the single piece user and OEM customers alike.

Benefits

  • Linear Position to 400 inches (10 m)
  • Compact Design
  • Simple To Install
  • User Adjustable Measuring Cable Orientation
  • Various configurations available in stock
orange bar

Applications

  • Fork lifts
  • Telescopic arms
  • Boom lifts
  • Scissor lifts
sk series string potentiometer infographic
PDF
SK Series Infographic
PDF
Industrial and Commercial Transportation Sensor Solutions (English)
ZIP
Electronic Datasheet (EDS) 604269-8

Other CAN Output Sensors



MEMS tilt sensor

DOG2 Series

MEMS Tilt Sensor

The DOG2 MEMS-Series inclinometer with CAN J1939 output signal is a dual axis tilt sensor with a focus on platform leveling, dynamic engine management, tip-over protection, and tilt alarm.
TRICAN Digital Combination Sensor

TRICAN HTD2800 Series

Humidity Temperature Pressure Sensor

The TRICAN digital combination sensor provides output signals for relative humidity, temperature and pressure from a single device.
canbus string pot

SKJ Series

CANBUS String Potentiometer

The SKJ string potentiometer is designed and manufactured for various applications and offers a CANBus output signal for simple integration.

CANopen® is a registered trademark of the CAN in Automation User's Group.


Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  SK Series, IP67 String Pots

Body Features

  • Case Material  Polycarbonate + Stainless Mounting Bracket

Dimensions

  • Full Stroke Range (mm) 6350, 10160

  • Full Stroke Range (in) 250, 400

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

  • Accuracy (% of FS) ±.35

Operation/Application

  • Digital Resolution (bit) 12

  • Output Signal Type  CANopen

Industry Standards

  • IP Rating  IP67

  • Hazardous Area Approval  No

Other

  • Encoder Drive  No

  • Repeatability (% of FS) .02

  • Measuring Cable  Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0063
